B36-B518 & AB1-AB35
B36-B518 & AB1-AB35
Bulkhead Wiring Harness (In Compartment)

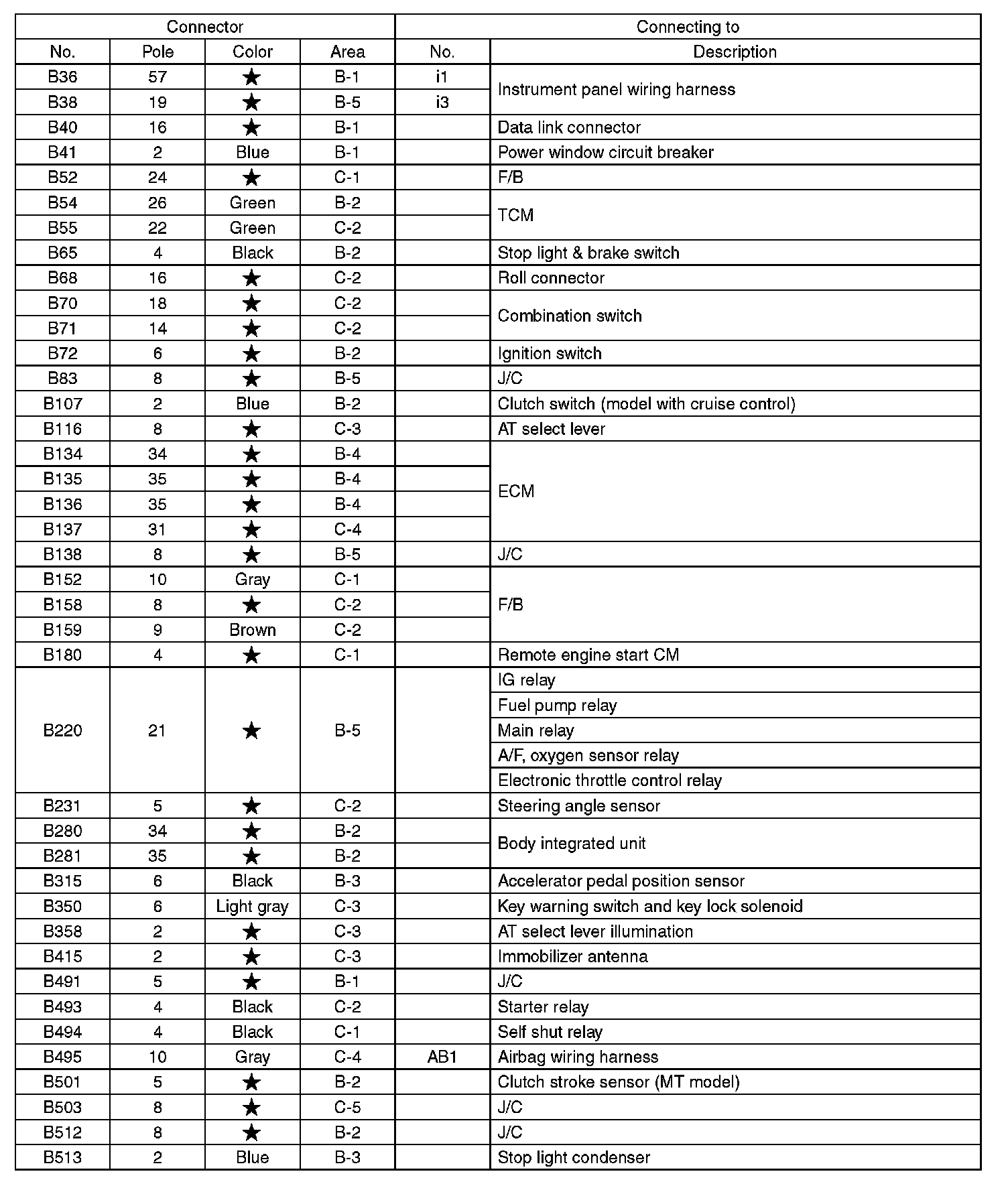

B36-B513:

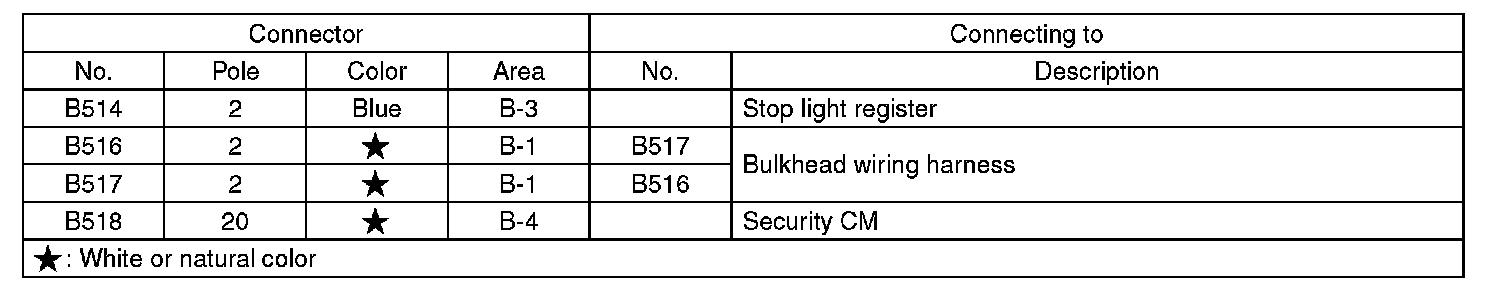

B514-B518:
AB1-AB35:

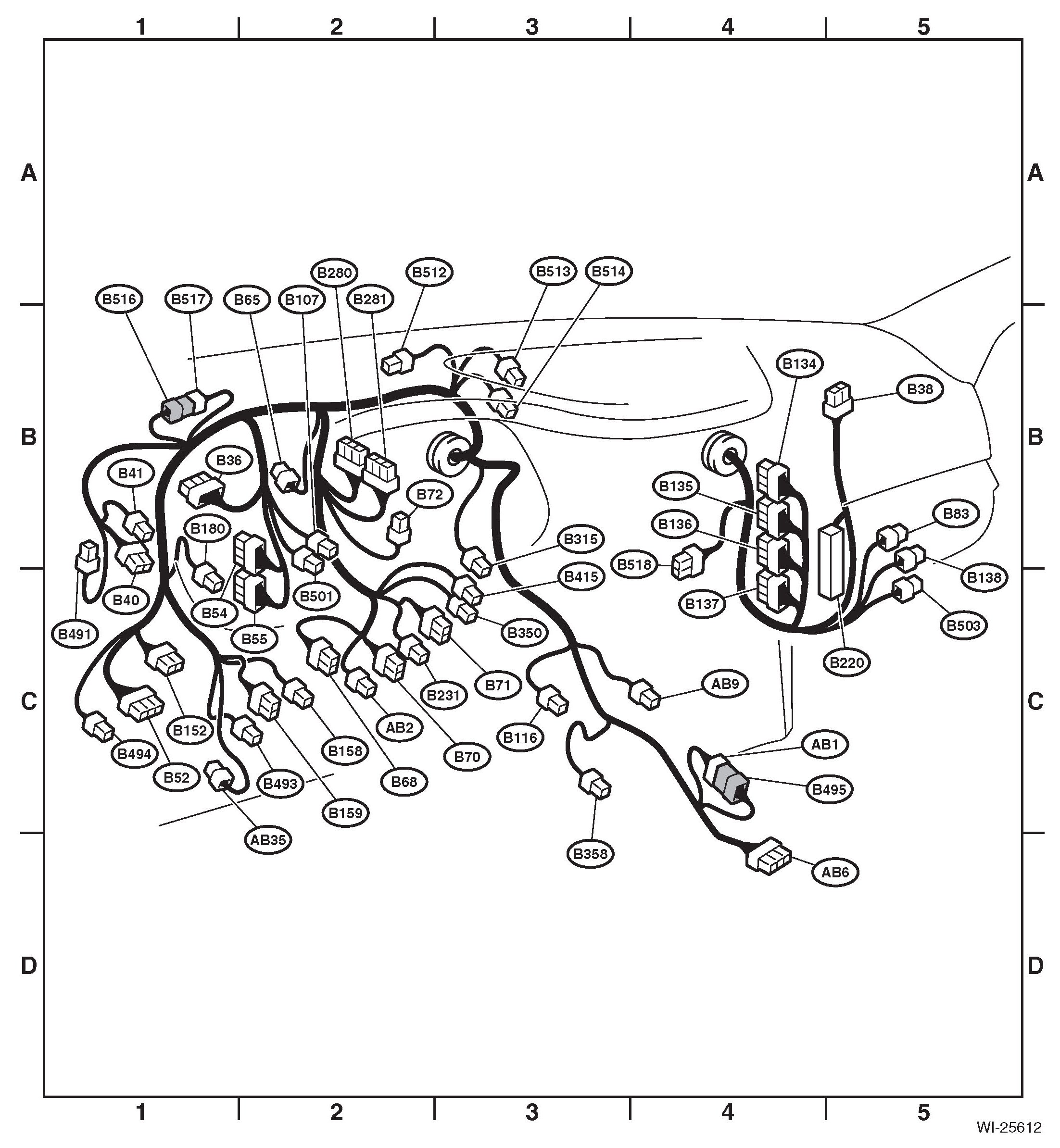

Area View:
