Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
2010
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R9-R387 & AB17-AB61
R9-R387 & AB17-AB61
Rear Wiring Harness
SEDAN MODEL

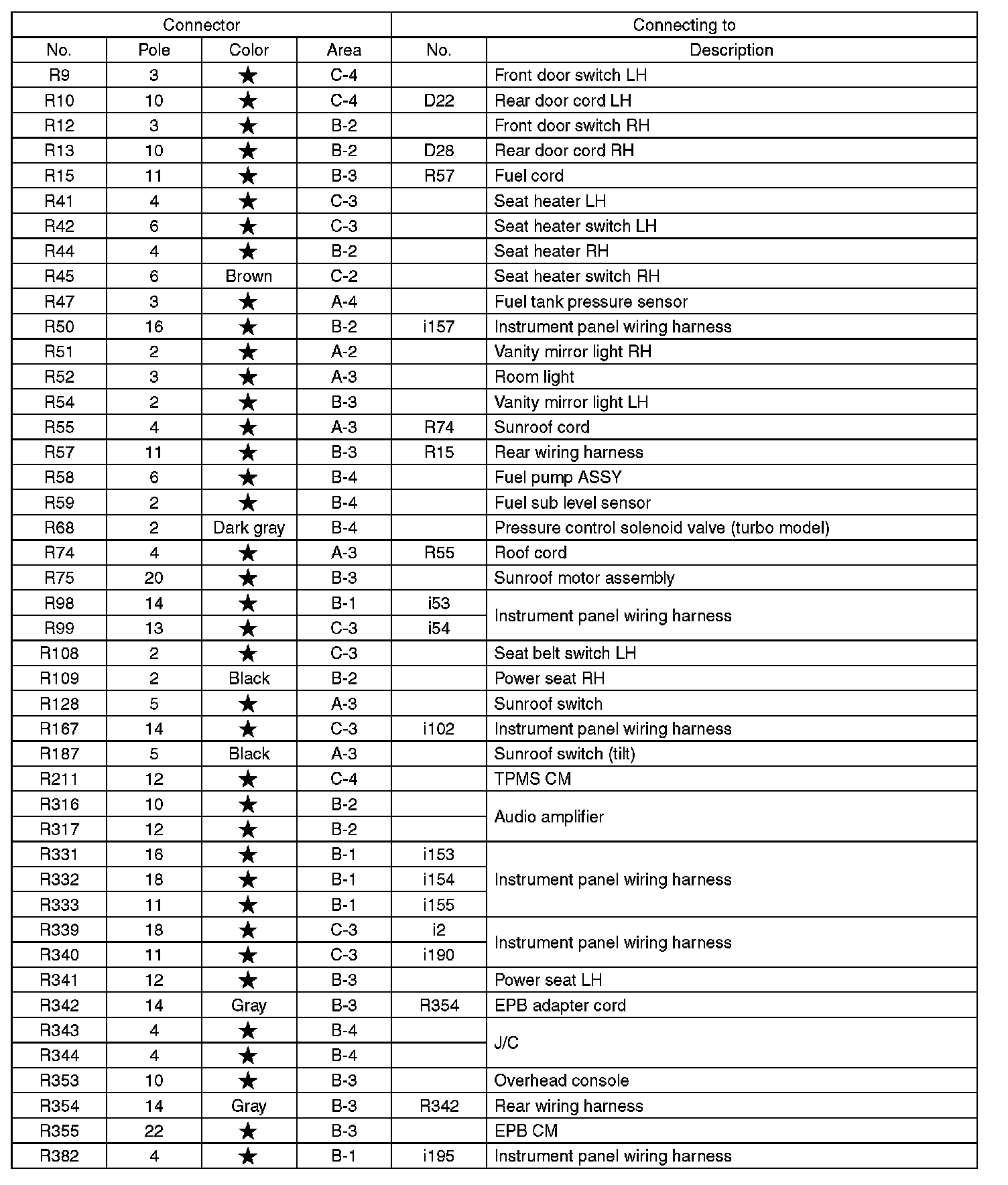

R9-R382:

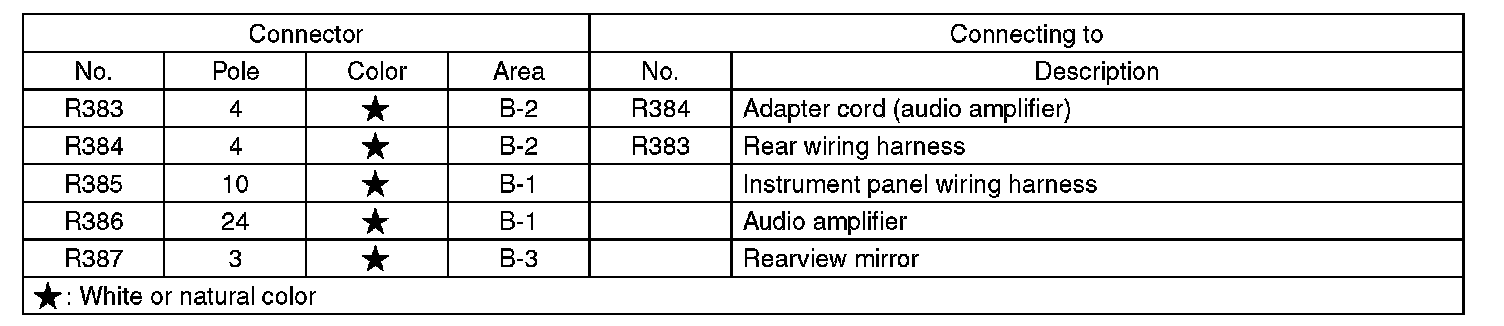

R383-R387:

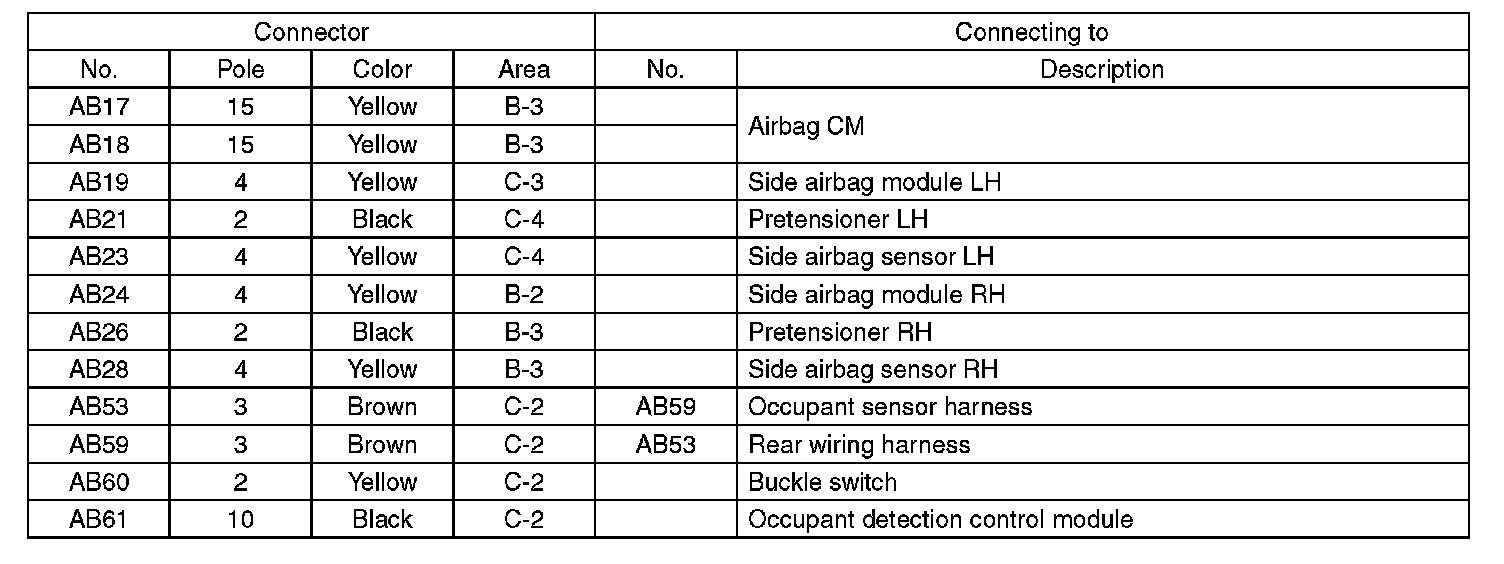

AB17-AB61:

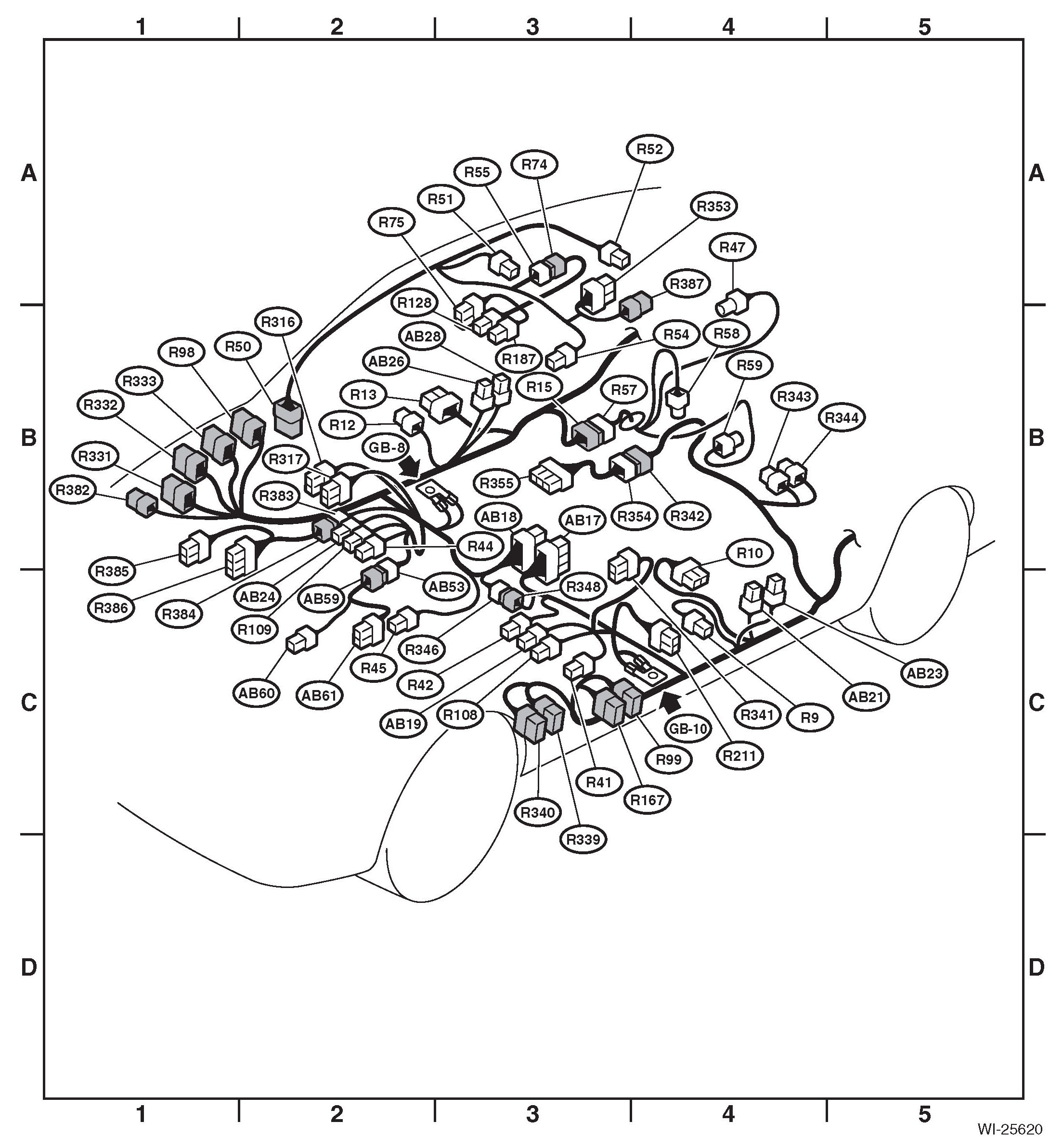

Area View:
OUTBACK MODEL

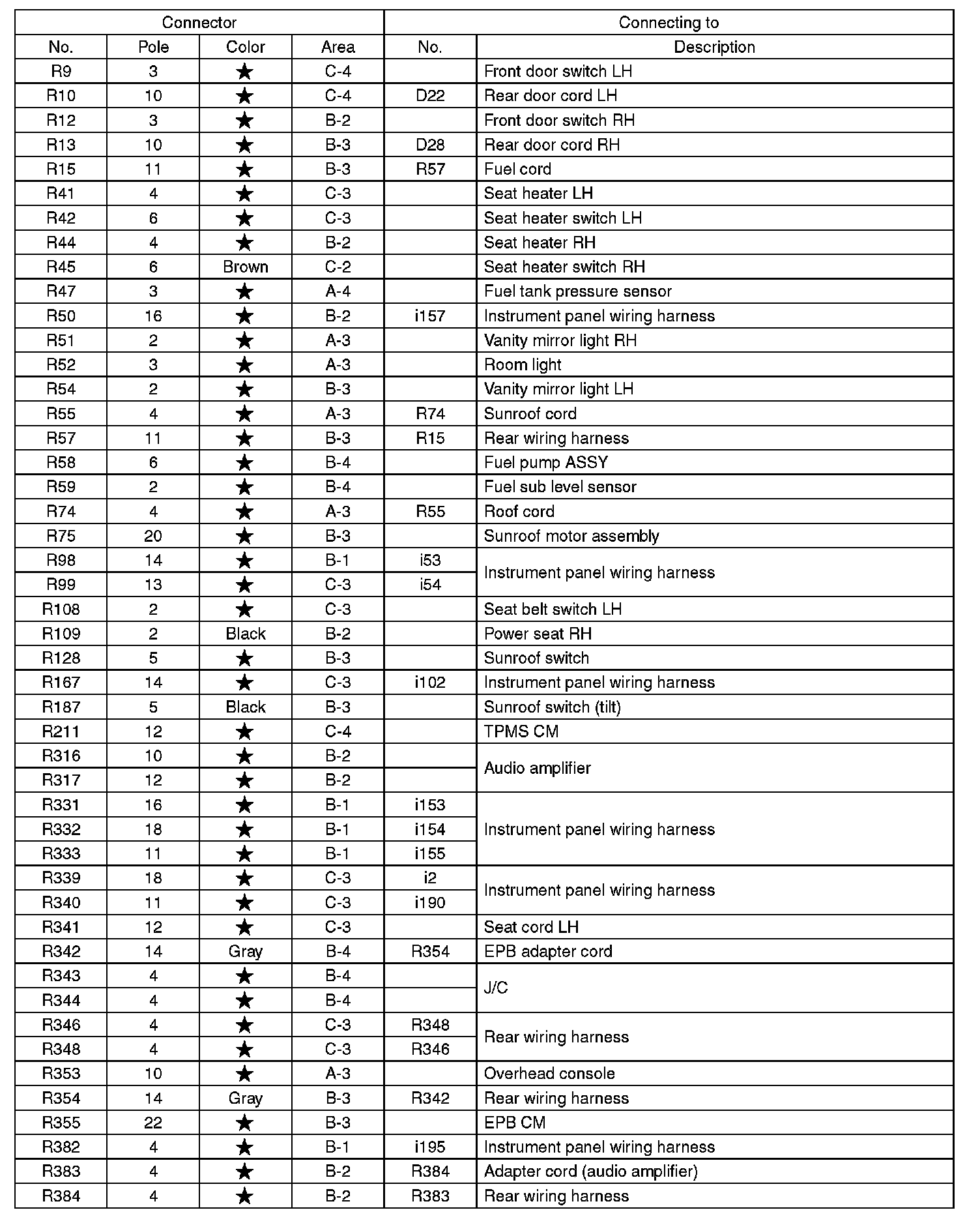

R9-R384:
R385-R387:
AB17-AB61:
Area View:
