Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Lubrication
Engine Lubrication

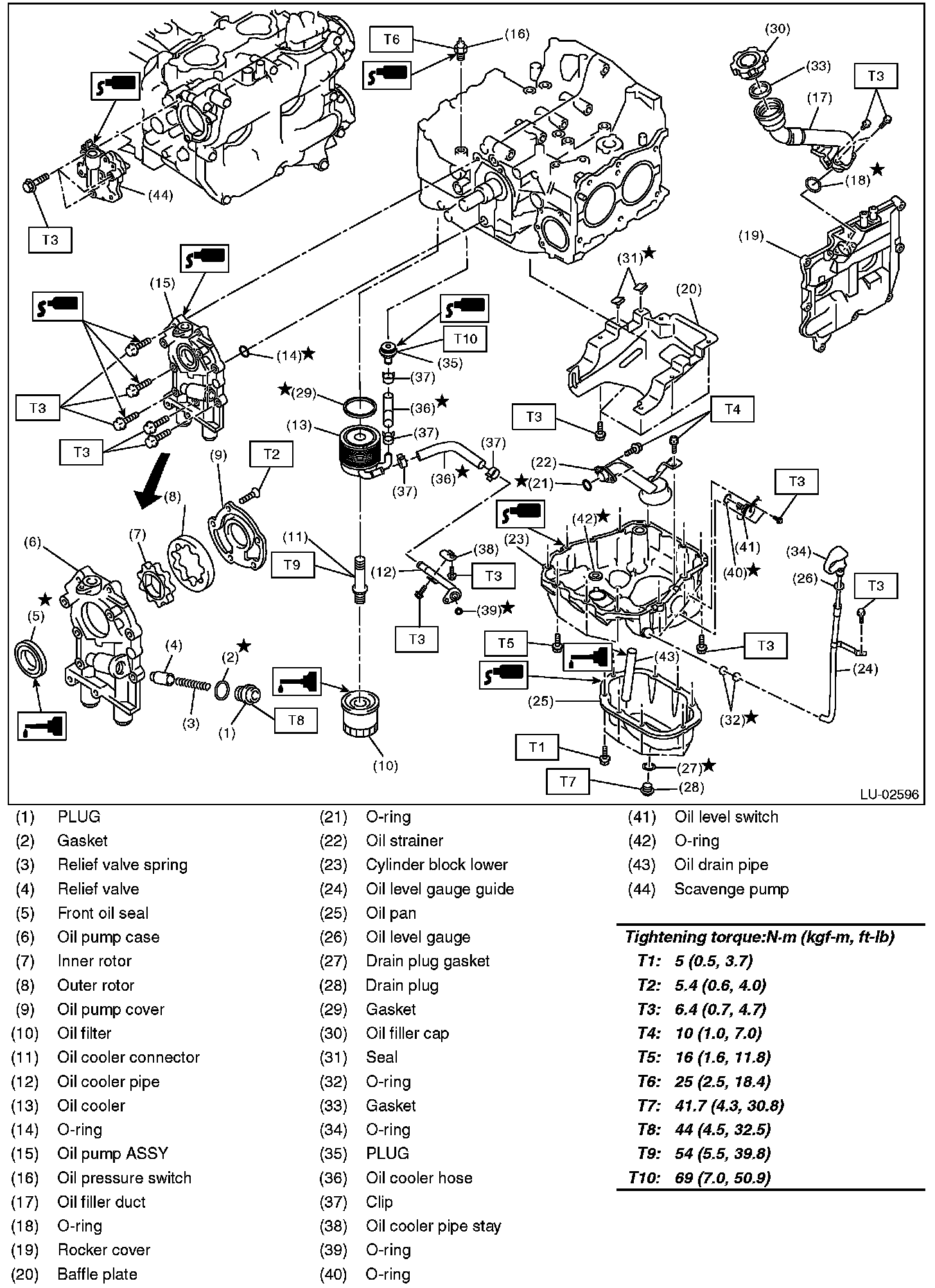

COMPONENT
^
2.5 L non-turbo model
2.5 L non-turbo model:
^
Turbo model
2.5L turbo model:
