Instruments - Compass Locks Up In One Direction
NUMBER: 15-142-10RDATE: 09/10/10
APPLICABILITY: 2011MY Outback Premium & Limited Models Equipped with New Moonroof Package (Without Navigation System)
SUBJECT: Compass "Locks-Up" In One Direction
INTRODUCTION
The purpose of this bulletin is to inform you there is a re-flash available for the Auto-Dimming Mirror with Compass, Back-Up Camera Display and HomeLink(R). There was a software "glitch" that gives the potential for the compass direction to lock-up and stay in one direction until the vehicle tracks a circle. At that time, the compass will reset and return to normal function.
COUNTERMEASURE IN PRODUCTION
The updated software was used in production the end of July, 2010.
TOOLS REQUIRED
Field Flash Box
Plastic white trim tool
Note:
Each dealer will receive a field flash box free of charge directly from the vendor. Shipment will start the week of September 6, 2010.
For replacement field flash boxes or questions regarding the re-flash procedure contact the Subaru TechLine.
REPAIR PROCEDURE/INFORMATION
Note:
If the PDI procedure was not yet performed on in-stock vehicles make sure the transportation 10-amp backup fuse is installed. Make sure batteries are fully charged.
^ Once the mirror has the updated software, re-flashing will not be required if the battery is disconnected in the future.
CAUTION
Make sure battery is fully charged.
Do NOT disconnect field flash box from mirror or power outlet.
Do NOT turn ignition key from ACCESSORY position.
Failure to follow the cautions will result in damage to the electrical components of the mirror which is not a matter for warranty.
Refer to the re-flash procedure below.
EC REARVIEW MIRROR RE-FLASH PROCEDURE:

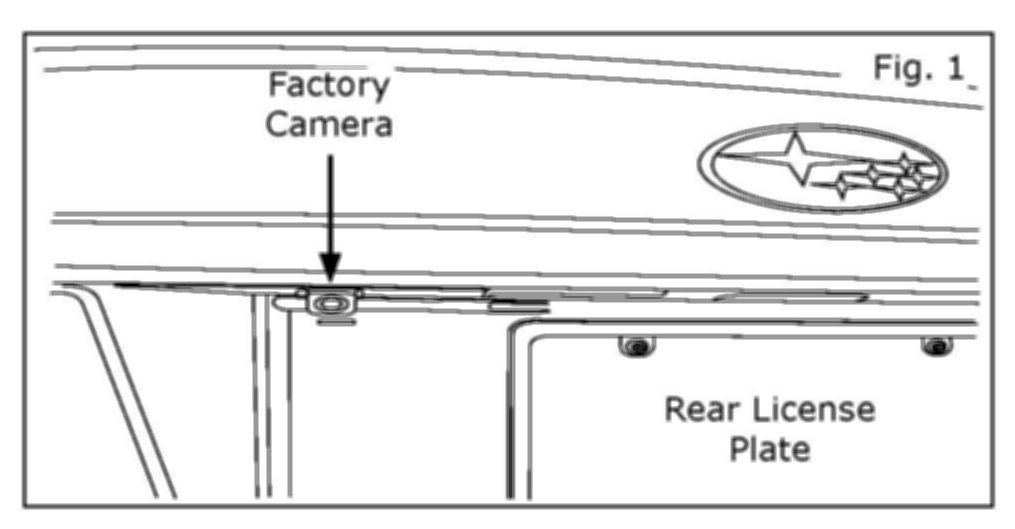

1) Identify vehicle to receive re-flash process. (Fig. 1)
a) Verify factory camera is installed at rear of vehicle. If camera is not installed, no further action is required.

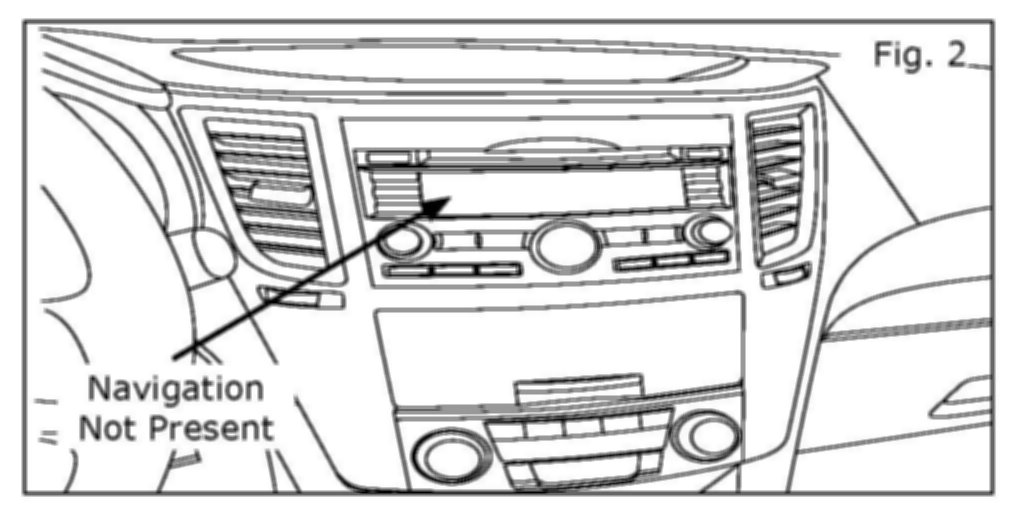

b) If factory camera is installed, check for presence of factory navigation display in center of interior dash. (Fig. 2)
c) If factory navigation is installed, no further action is required.

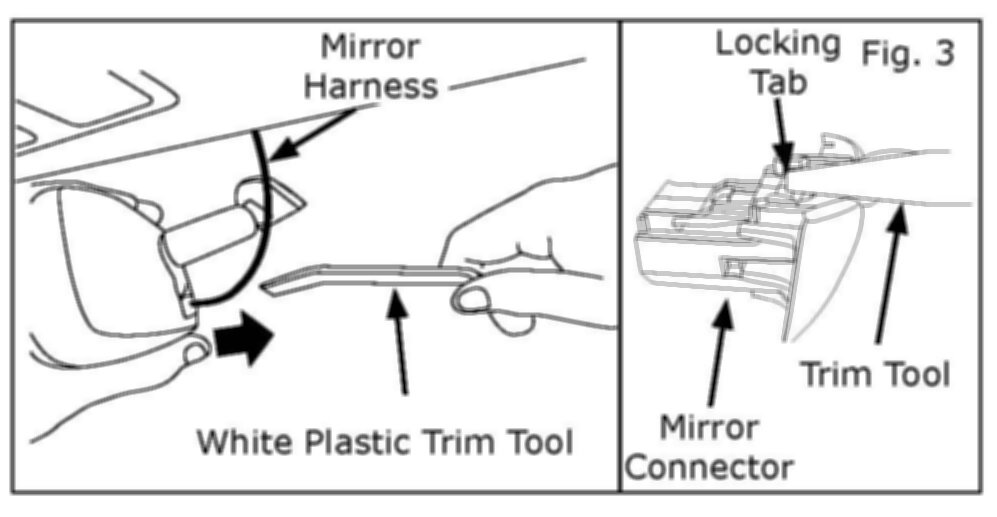

2) Rotate interior mirror to gain access to 12-pin connector at back of mirror. (Fig. 3)
a) Remove 12-pin connector from back of mirror by depressing locking tab with a white plastic trim tool (or equivalent) and remove.

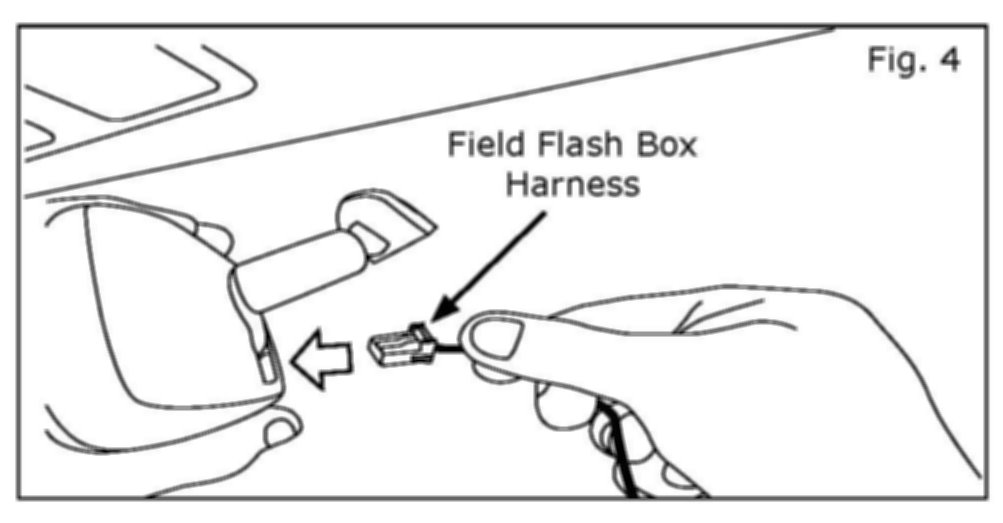

3) Locate field flash box harness and insert 12-pin connector into back of interior mirror. (Fig. 4)
CAUTION
4) Locate power outlet, below climate control, near transmission gear selector. (Fig. 5)
a) Remove power outlet cap.

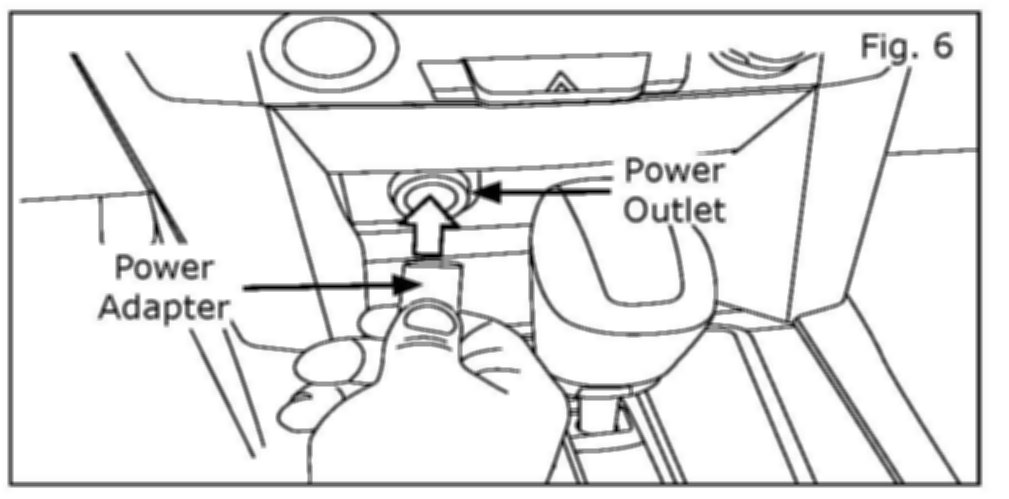

5) Connect field flash box power adapter to center console power outlet. (Fig. 6)

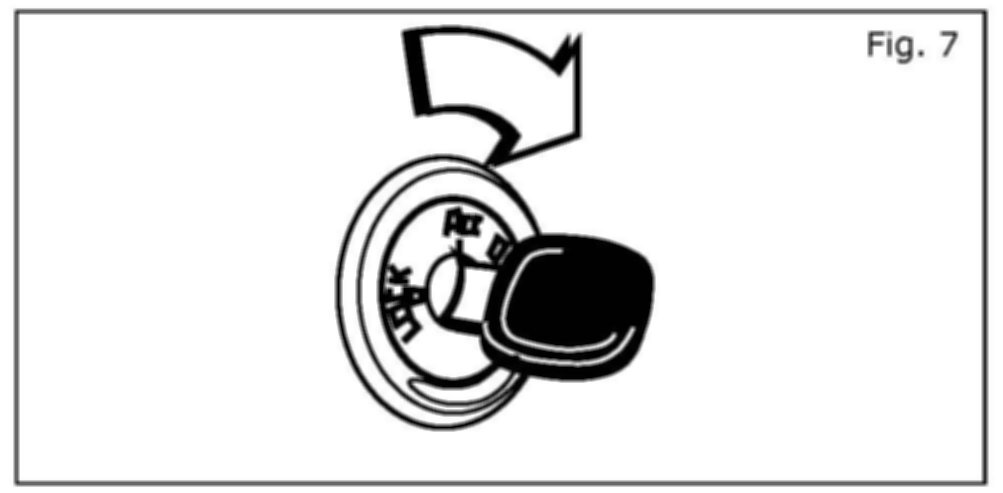

6) Turn ignition switch to ACCESSORY position. (Fig. 7)

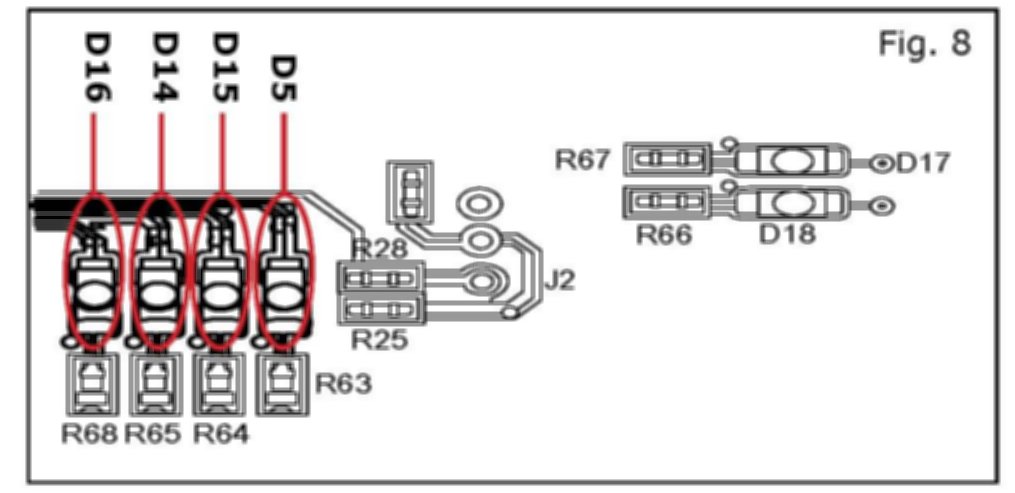

7) Verify D5, D15, D14, and D16 LED's are all simultaneously flashing on the field flash box, indicating reflashing is in progress. (Fig. 8)
a) LED indicator of interior mirror will also flash, indicating re-flash is in progress.
CAUTION
NOTE:
If D5, D15, D14, and D16 LED's are not all simultaneously flashing, proceed to Troubleshooting section below.

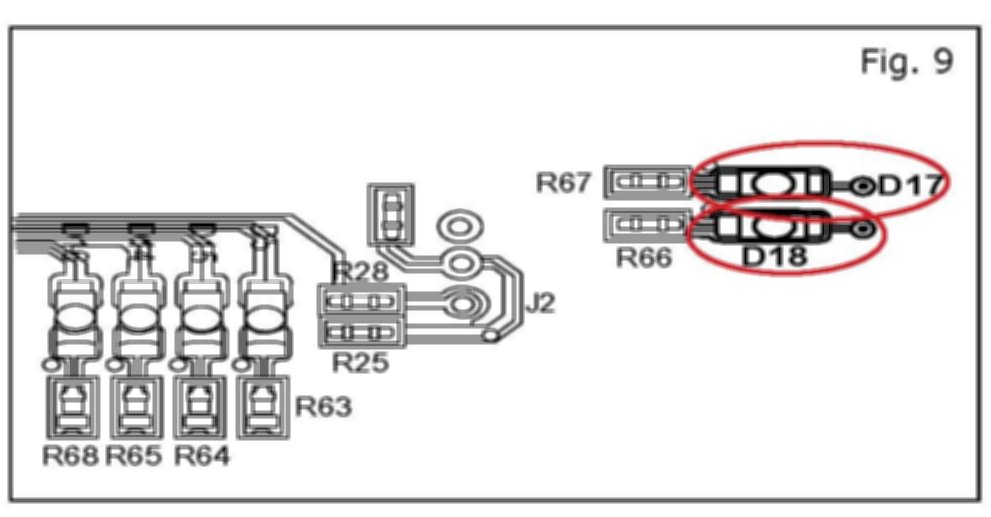

8) Re-flashing will take approximately 1-2 minutes. Upon completion of re-flashing, both D17 and D18 LED's will illuminate on field flash box while emitting a solid tone. (Fig. 9)
a) Display on left hand side of interior mirror will also turn on for 5 seconds, indicating mirror has been successfully re-flashed.
NOTE:
If D17 and D18 LED's are not both simultaneously illuminated, proceed to Troubleshooting section below.

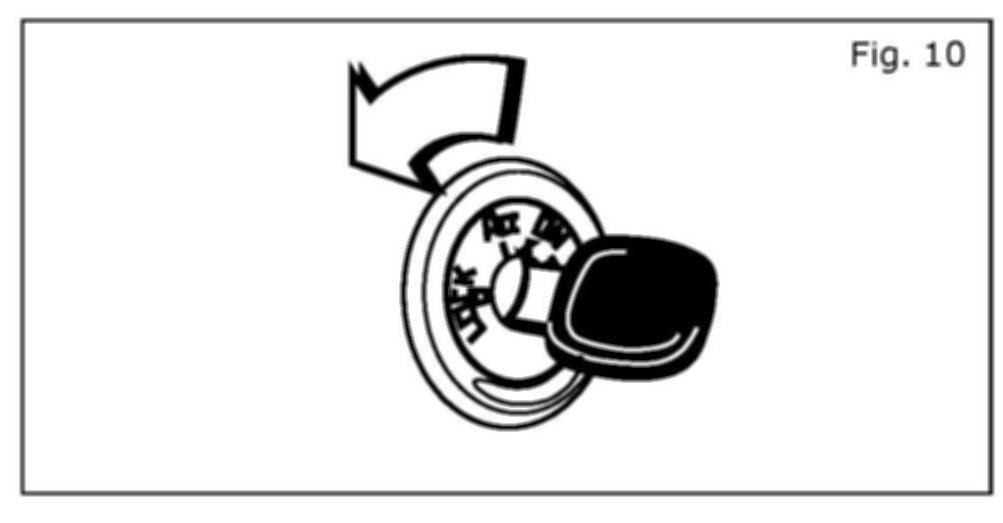

9) Rotate ignition switch to OFF position. (Fig. 10)

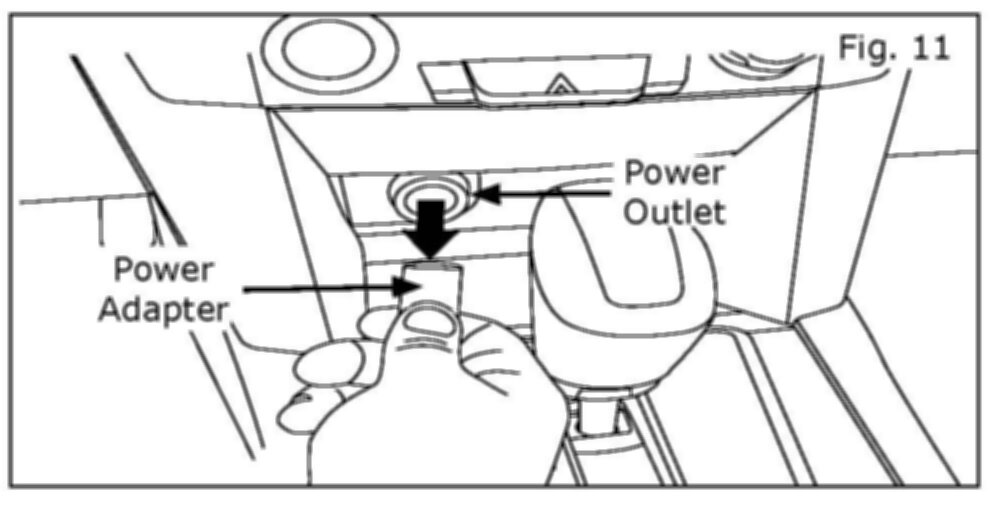

10) Remove field flash box power adapter from center console power outlet and reinstall the power outlet cap. (Fig. 11)

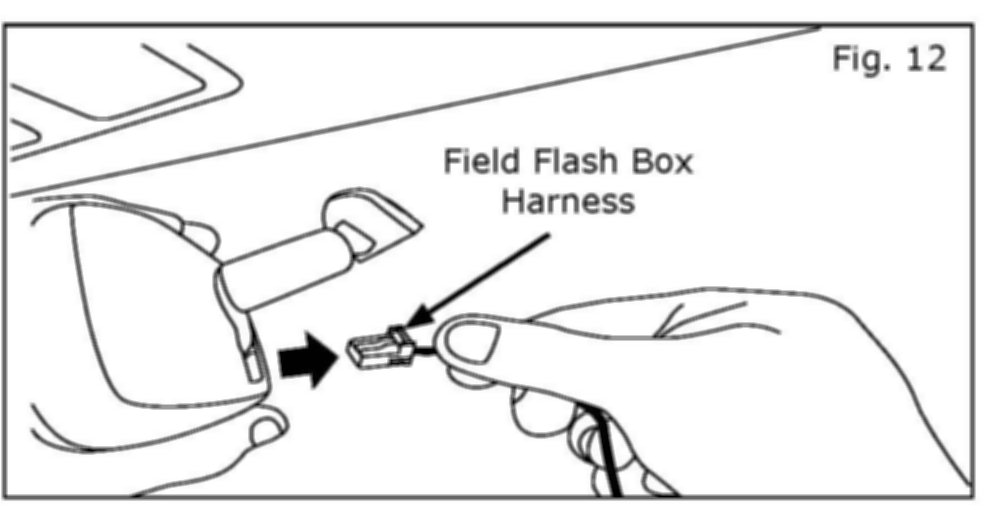

11) Remove 12-pin field flash box connector from back of mirror. (Fig. 12)

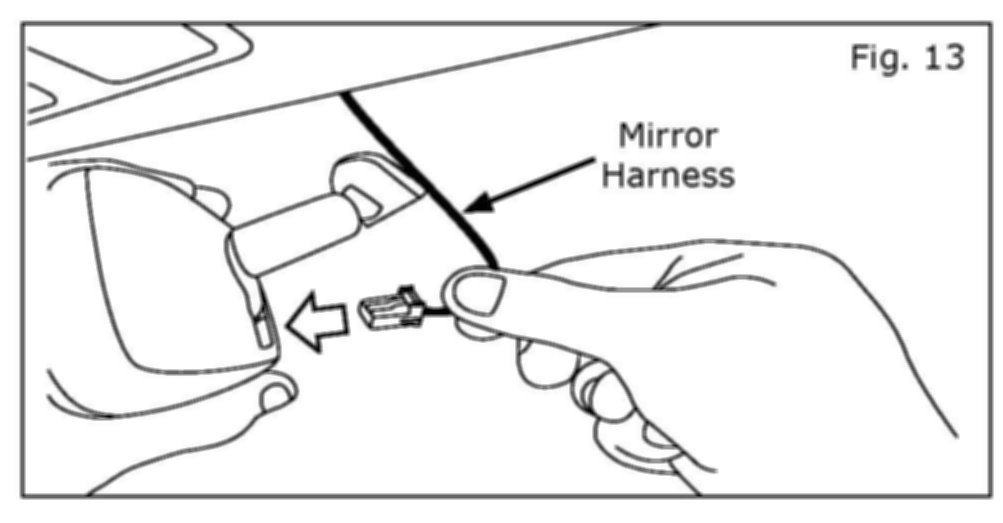

12) Locate interior mirror harness and insert 12-pin connector into back of interior mirror. (Fig. 13)
CAUTION
13) Adjust mirror back to original position.

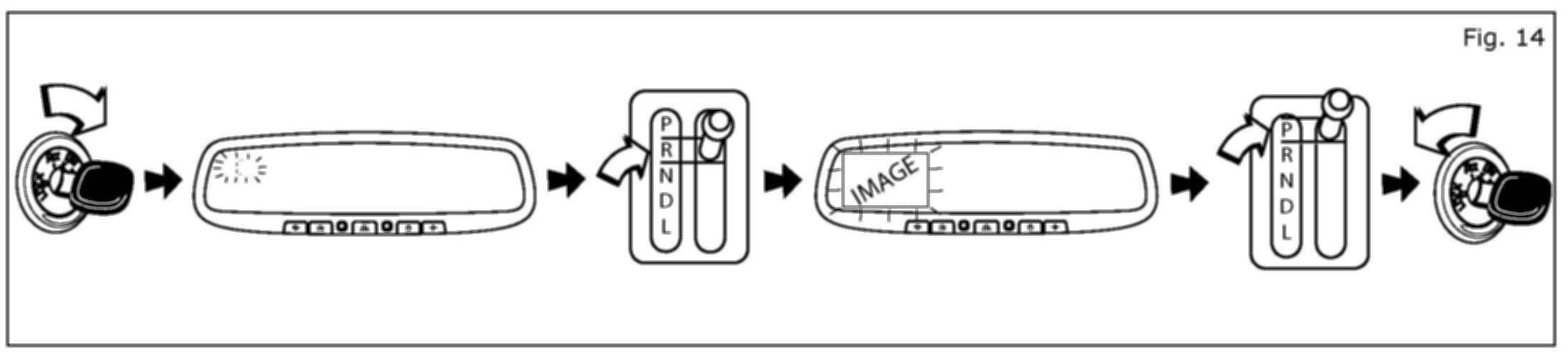

14) Testing (Fig. 14)
a) Turn ignition switch to ON position.
b) Verify compass display shows either a direction such as "NE" or a "C" in the left hand side of the mirror.
c) With your foot on the brake pedal, move the gear selector lever into REVERSE.
d) A clear image should display in the left hand side of the mirror.
e) Move the gear selector lever back into Park.
f) Turn ignition switch to OFF position.
g) Testing is now complete.
15) Make sure the compass is displaying the correct direction, if not, drive the vehicle in a complete circle to recalibrate the compass.

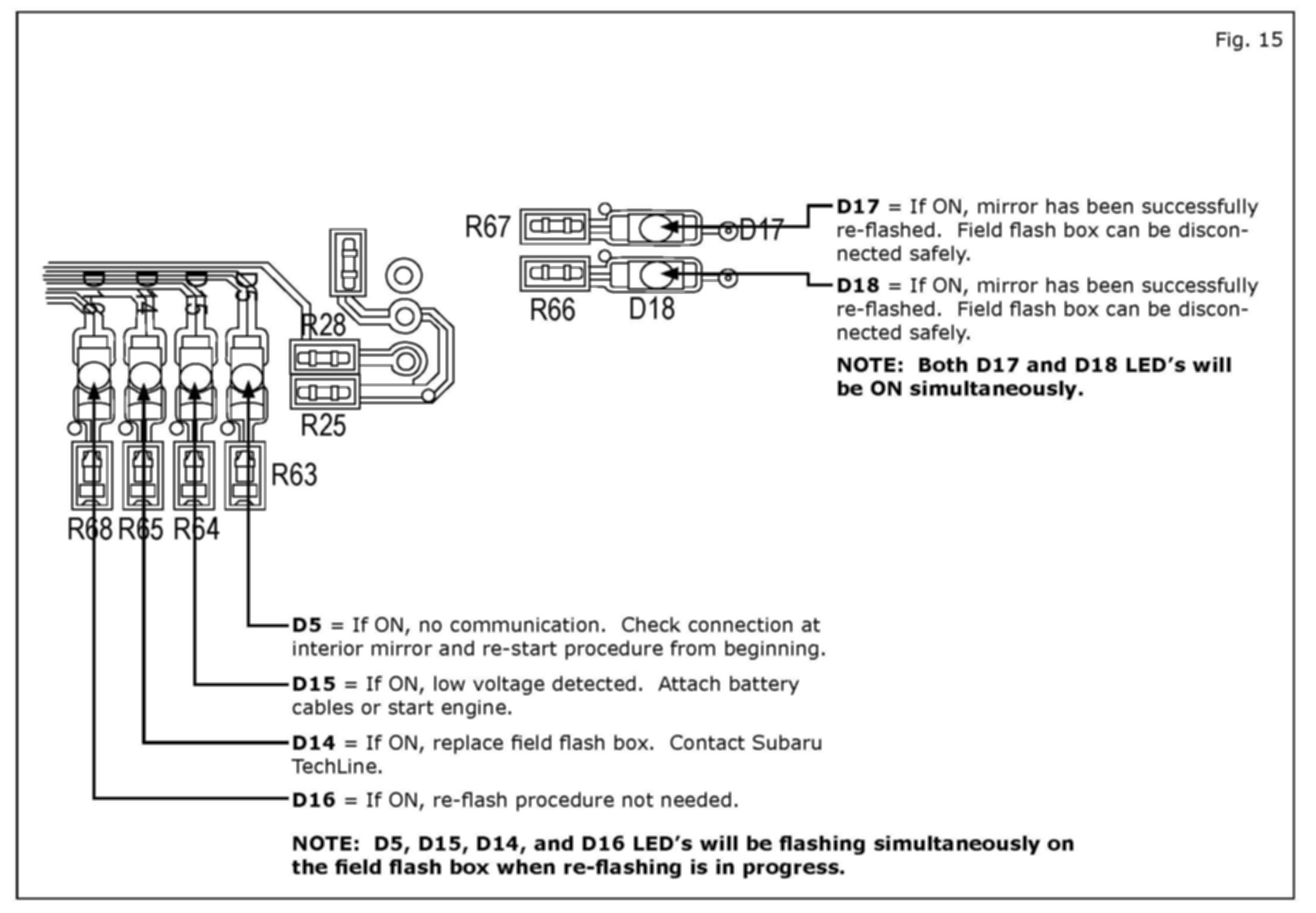

EC REARVIEW MIRROR TROUBLE-SHOOTING

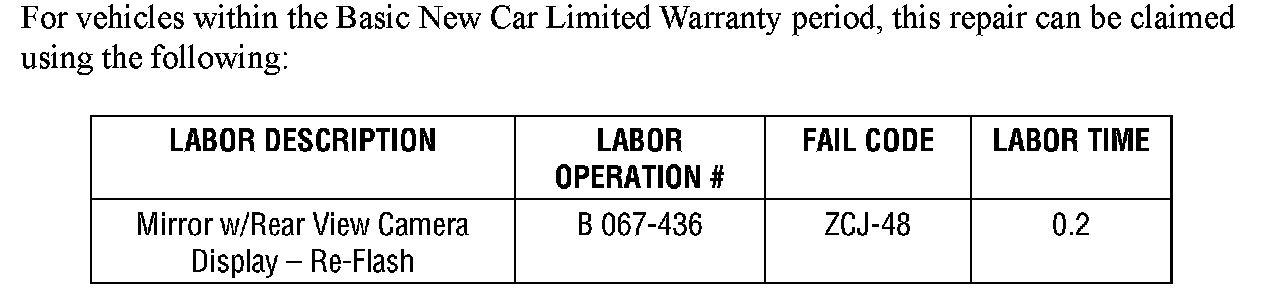

WARRANTY/CLAIM INFORMATION
