Removal

Oil Charge Pipe

REMOVAL
1) Disconnect the ground cable from battery.
2) Lift up the vehicle.
3) Remove the under cover.
4) Remove the front exhaust pipe.
5) Disconnect the connector from turbine speed sensor 1.

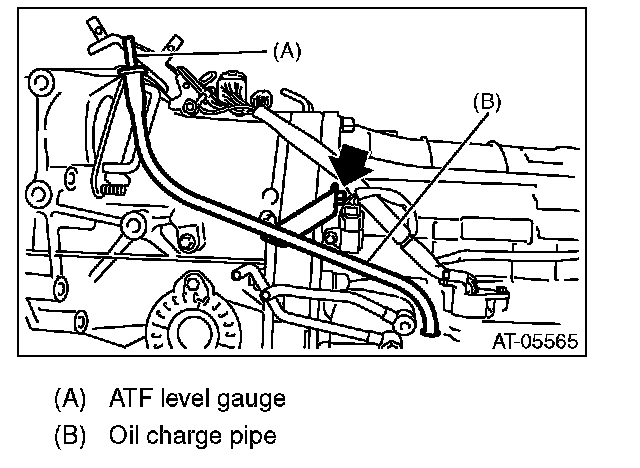

6) Remove the oil charge pipe, and then remove the O-ring from flange side.
