Center Mounted Brake Lamp: Service and Repair

HIGH-MOUNTED STOP LIGHT

REMOVAL
1. Disconnect the ground cable from battery.

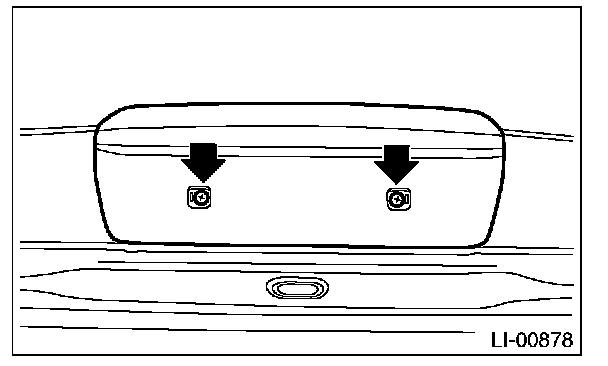

2. Remove the caps and screws, then detach the high-mounted stop light cover.






3. Remove the high-mounted stop light.






1. Remove the screws.
2. Disconnect the harness connector.

INSTALLATION
Install each part in the reverse order of removal.
