Blower Motor Resistor: Testing and Inspection

Blower Resistor (Manual A/C Model)

INSPECTION

1. Disconnect the blower resistor connector.

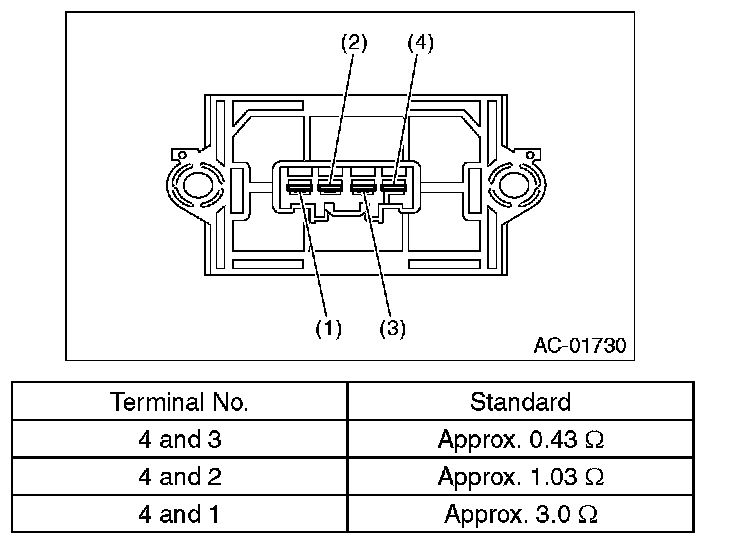

2. Check the resistance between blower resistor terminals.






3. Replace the blower resistor if the inspection result is not within the standard value.
