Cabin Air Filter / Purifier: Service and Repair

A/C Filter

REPLACEMENT

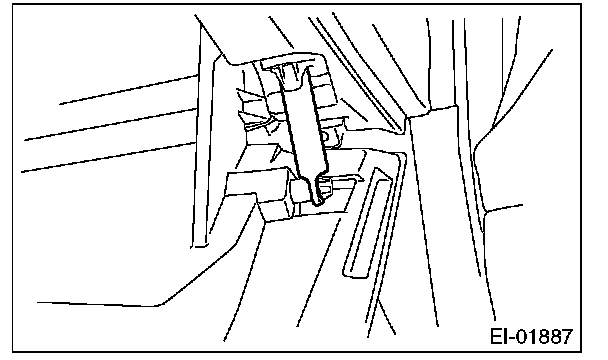

1. Remove the glove box damper.

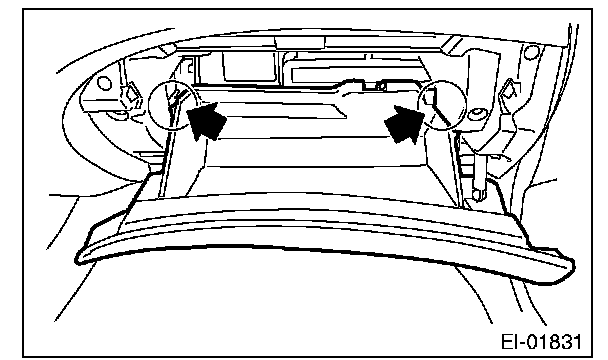

2. Remove the stoppers and pull the glove box lid assembly forward to remove.

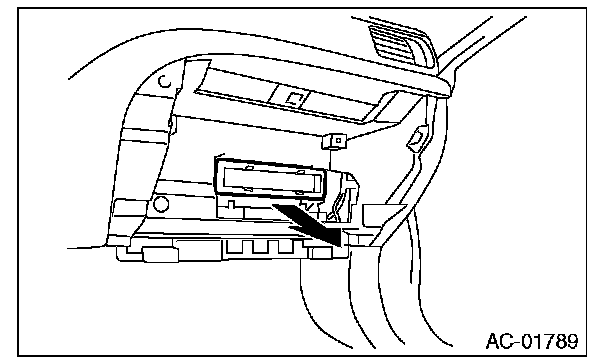

3. Pinch the tabs to release the lock and remove the A/C filter.






4. Install each part in the reverse order of removal.
