Clock: Service and Repair

Clock

REMOVAL


1. Disconnect the ground cable from battery.
2. Remove the audio. (model with audio)
3. Remove the navigation unit. (model with navigation)

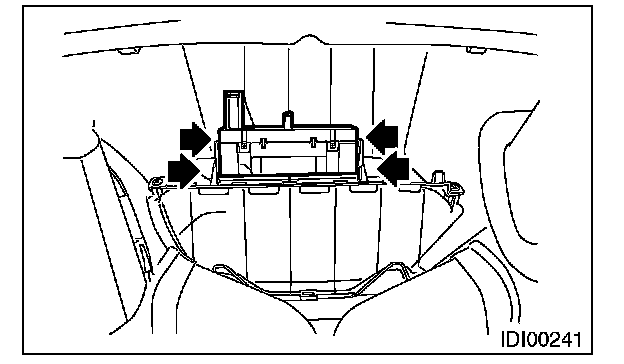

4. Reach through the audio space to release the four tabs from the bracket behind the instrument panel.






5. Disconnect the harness connector and remove the clock.

INSTALLATION

Install each part in the reverse order of removal.
