Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL

1. 4 DOOR MODEL (STANDARD TYPE)
1. Disconnect the ground cable from battery.

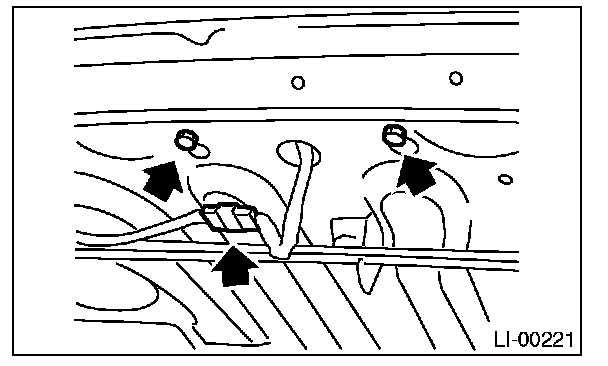

2. Disconnect the high-mounted stop light connector.
3. Loosen the bolt, and remove the high-mounted stop light assembly.

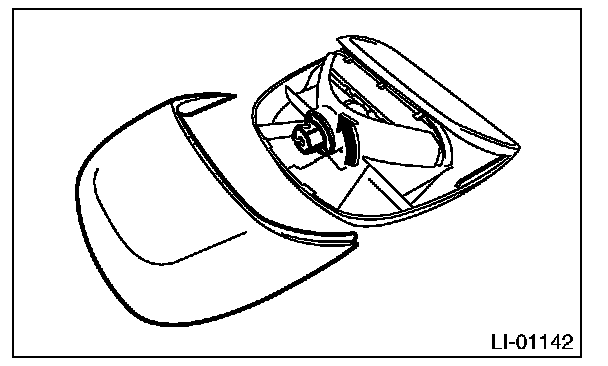

4. Remove the high-mounted stop light assembly cover.
5. Turn the socket and remove the bulb.






2. 4 DOOR MODEL (WITH BUILT-IN REAR SPOILER)
1. Disconnect the ground cable from battery.
2. Detach the rear spoiler.

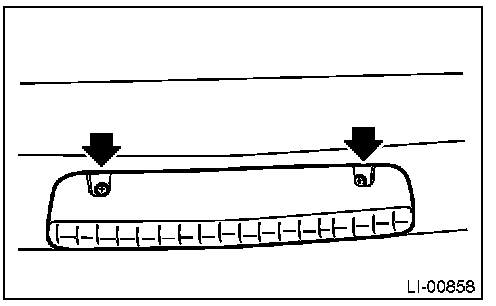

3. Remove the screw, and remove the high-mounted stop light.






3. 5 DOOR MODEL
1. Disconnect the ground cable from battery.
2. Remove the roof spoiler.

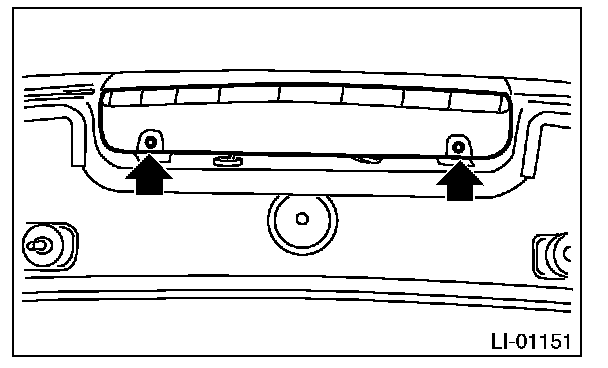

3. Remove the caps and screws, then remove the high-mounted stop light.






INSTALLATION
Install each part in the reverse order of removal.

Tightening torque:
4 door model (standard type): 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)
