Pinout Values and Diagnostic Parameters

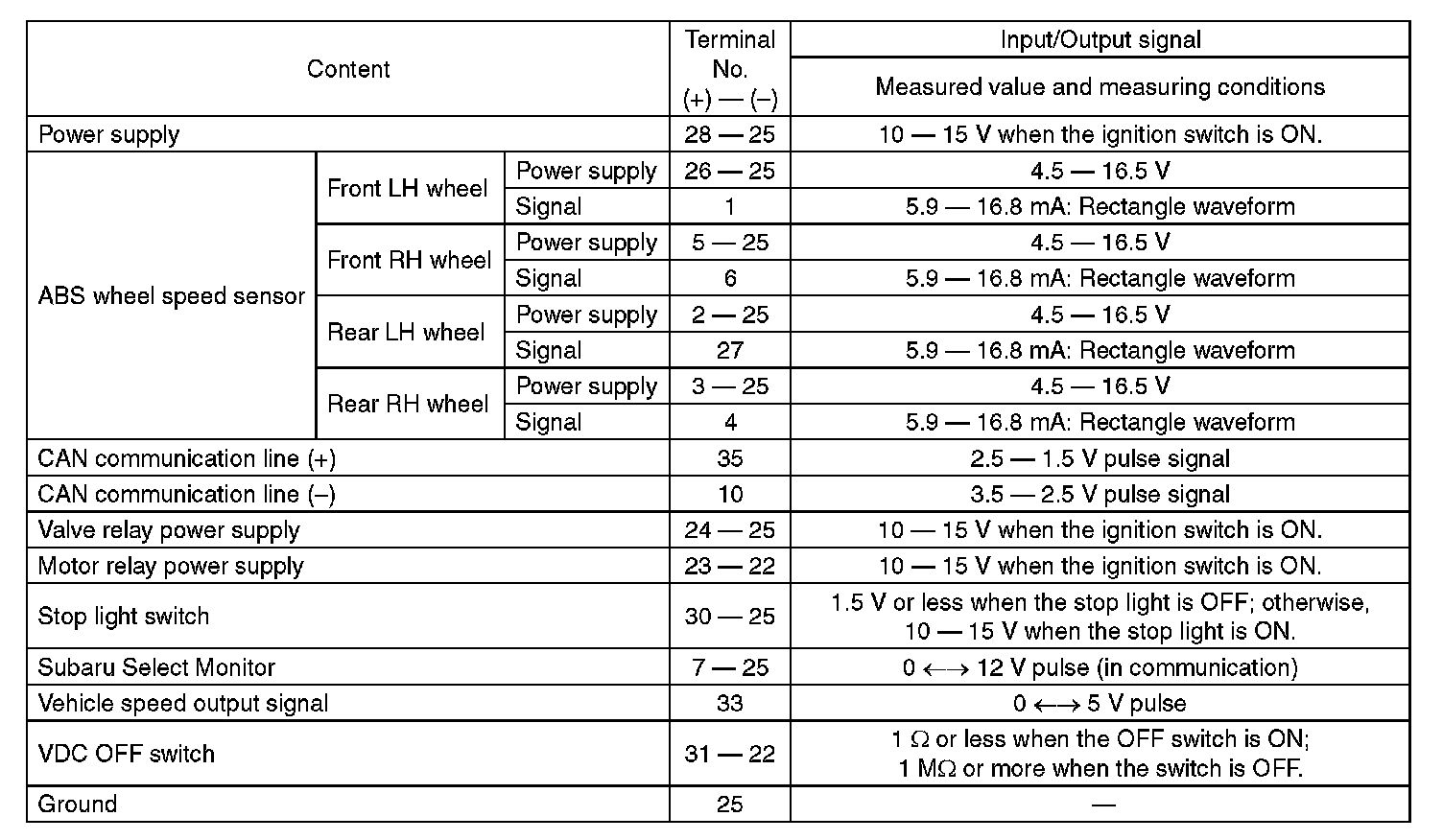

ELECTRICAL SPECIFICATION





NOTE:

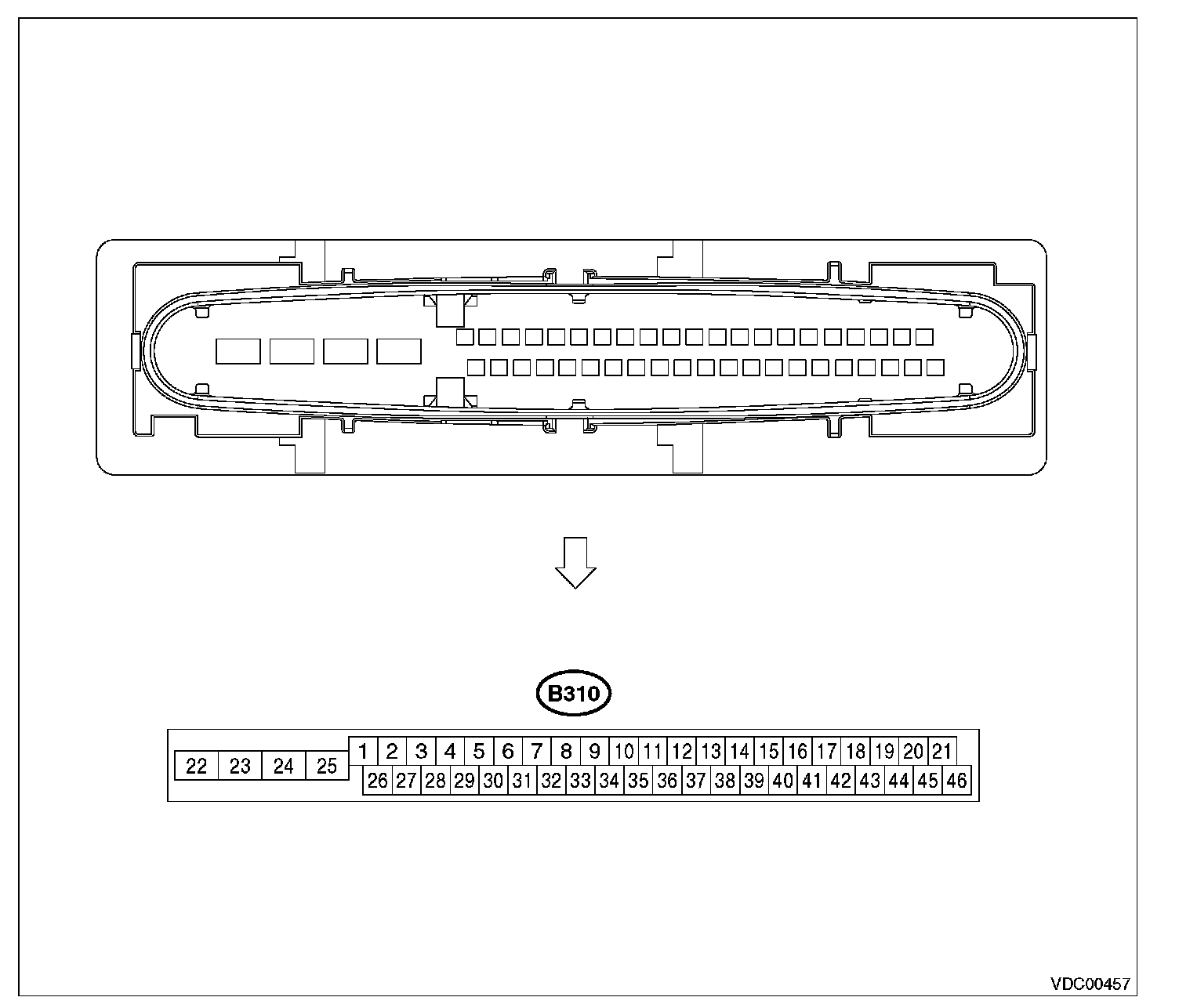

^ Terminal numbers in VDCCM&H/U connector are shown in the figure.
^ When the connector is removed from the VDCCM&H/U, the brake warning light (EBD warning light), ABS warning light, VDC warning light & VDC OFF indicator light, and the hill start assist warning light illuminate.





WIRING DIAGRAM
