Cruise Control

DTC 61

Malfunction in the stop light & brake switch is detected.

Detected when brake pedal is depressed or malfunction related to stop light & brake switch occurs.

TROUBLE SYMPTOM:
- Cruise control cannot be set.
- Cruise control cannot be released.

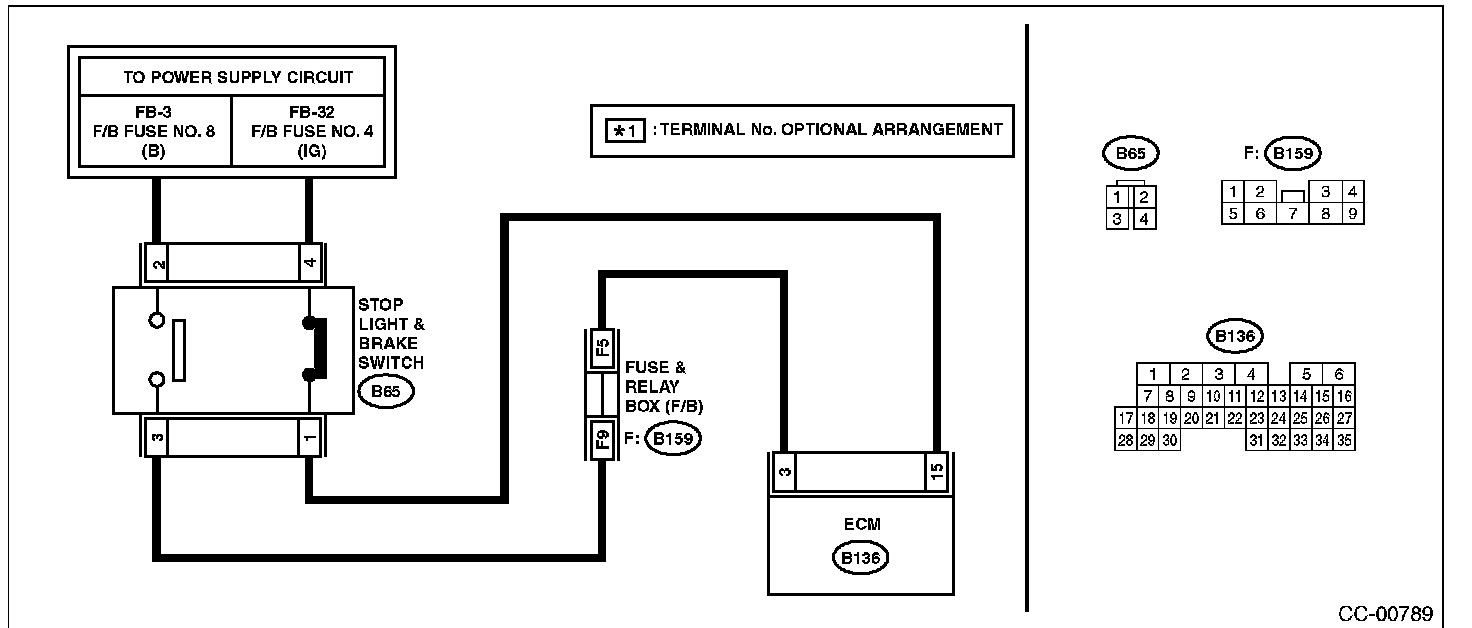

WIRING DIAGRAM:
