Electrical Diagrams

Audio System

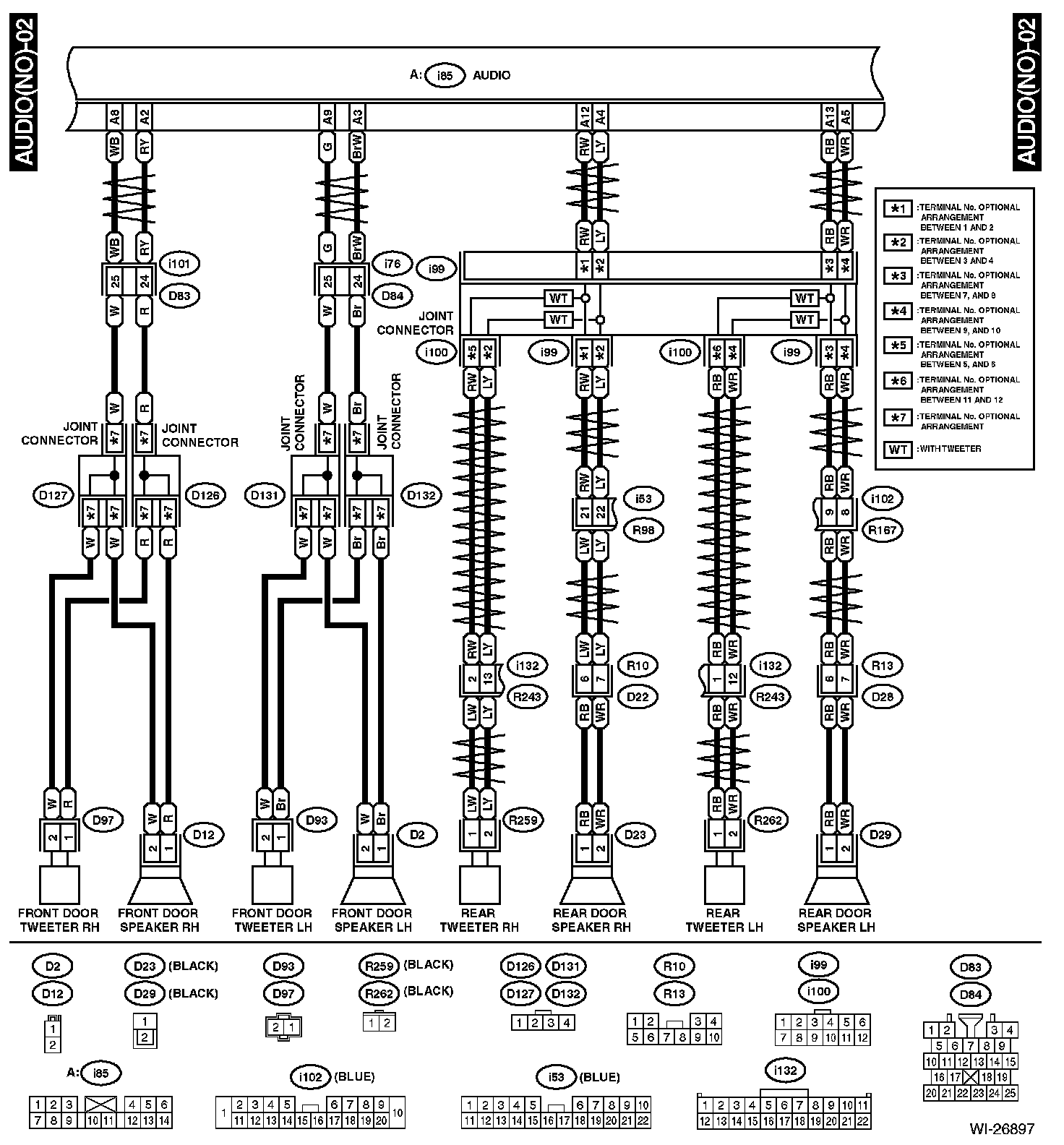

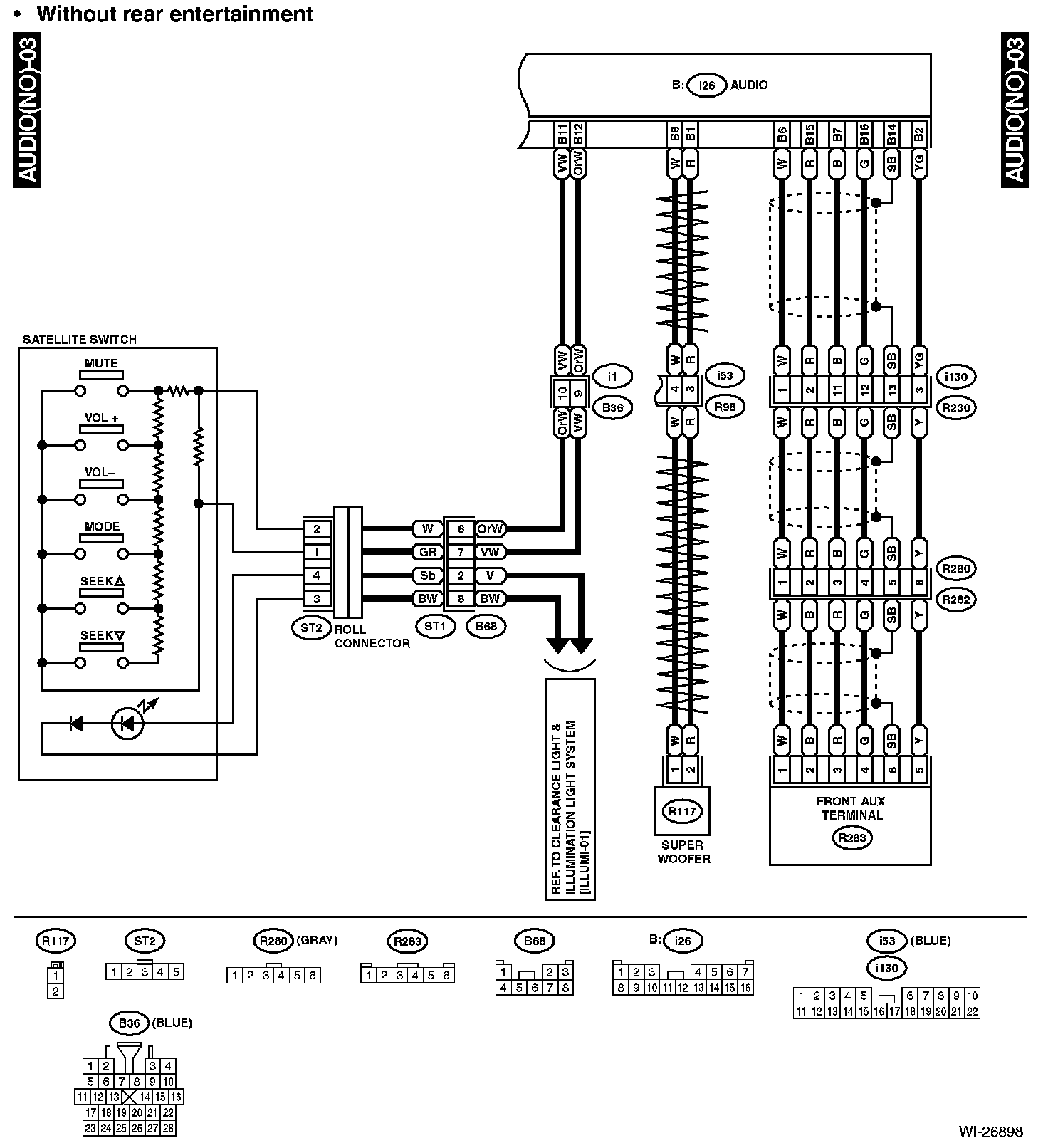

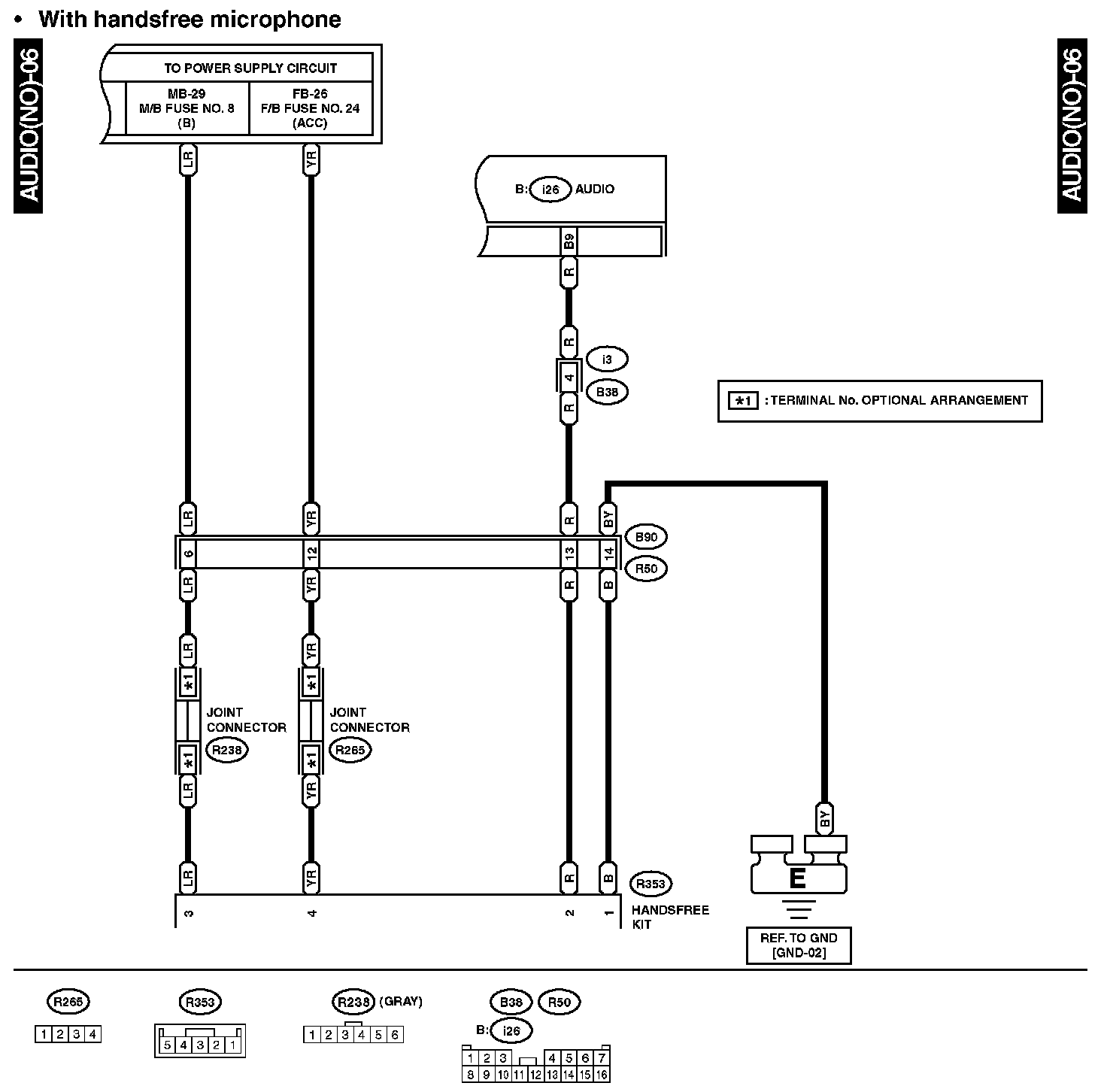

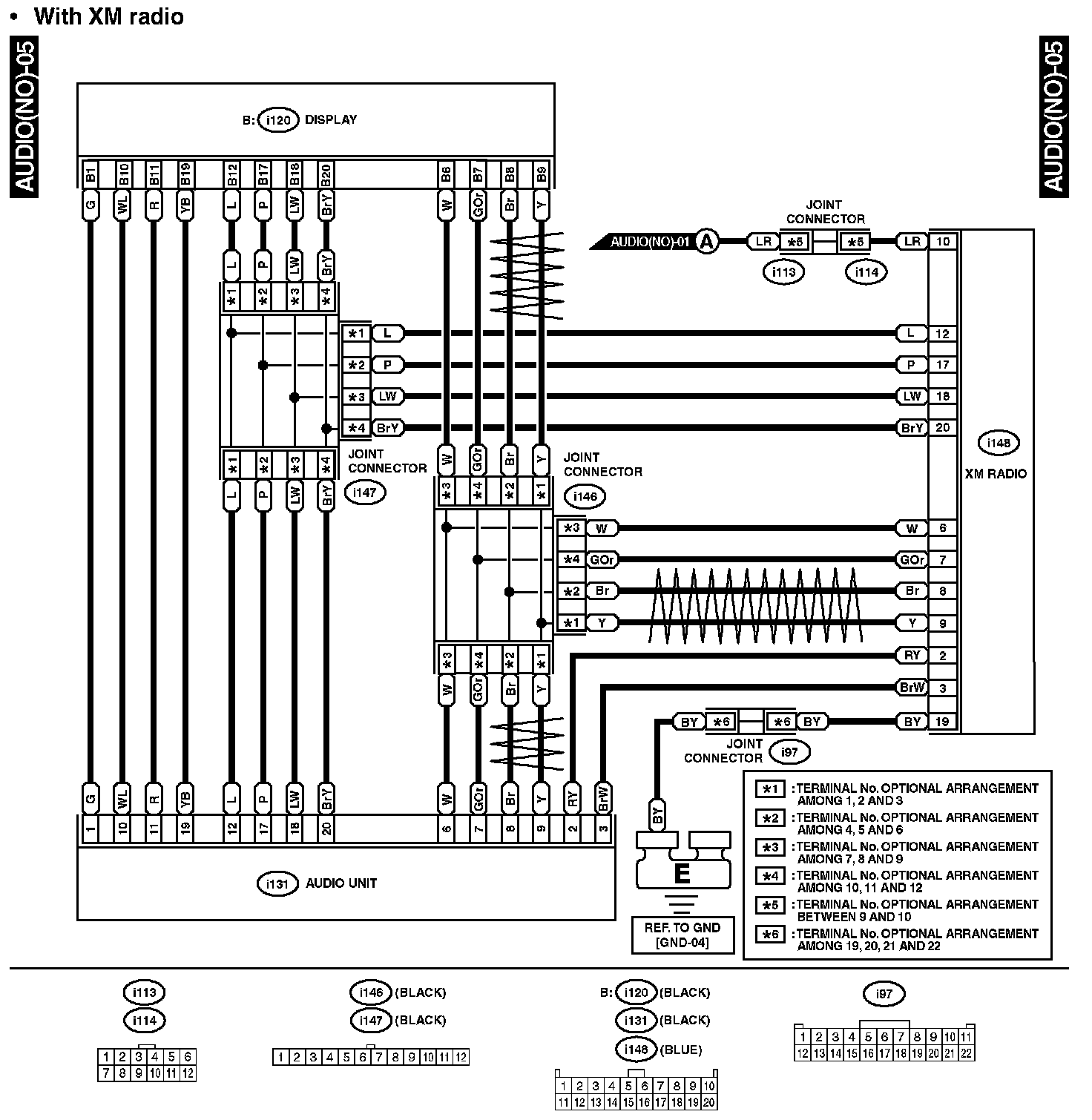

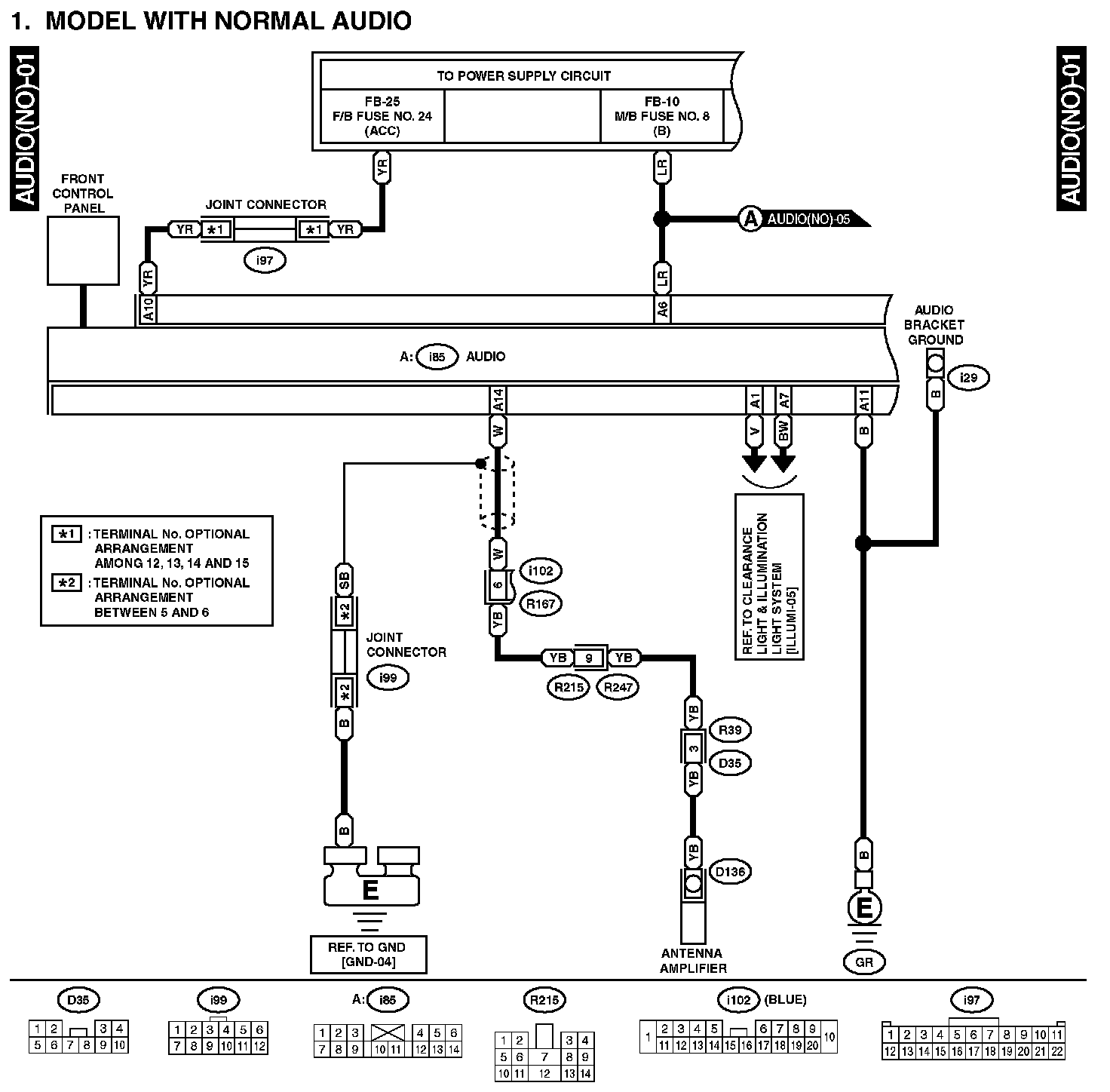

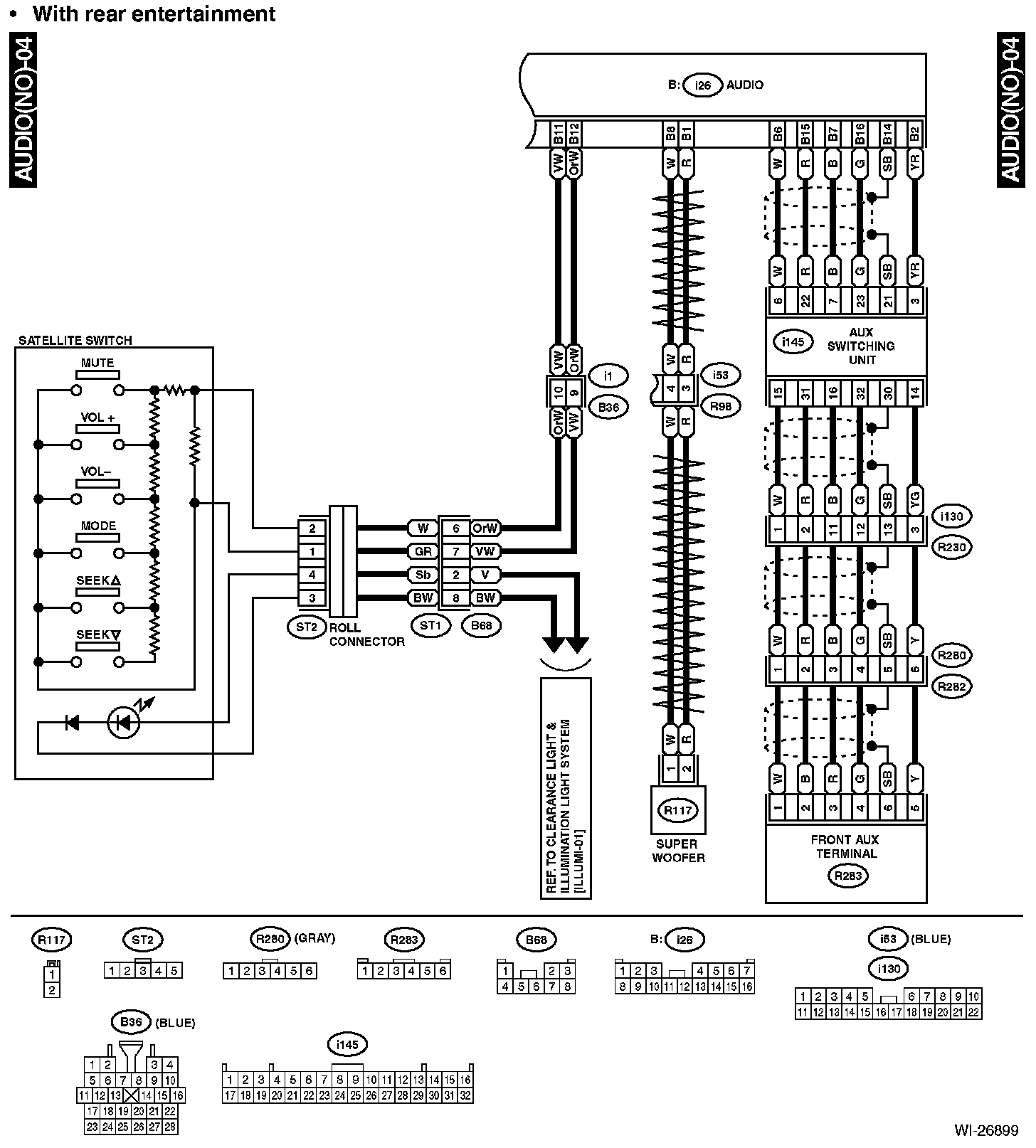

MODEL WITH NORMAL AUDIO

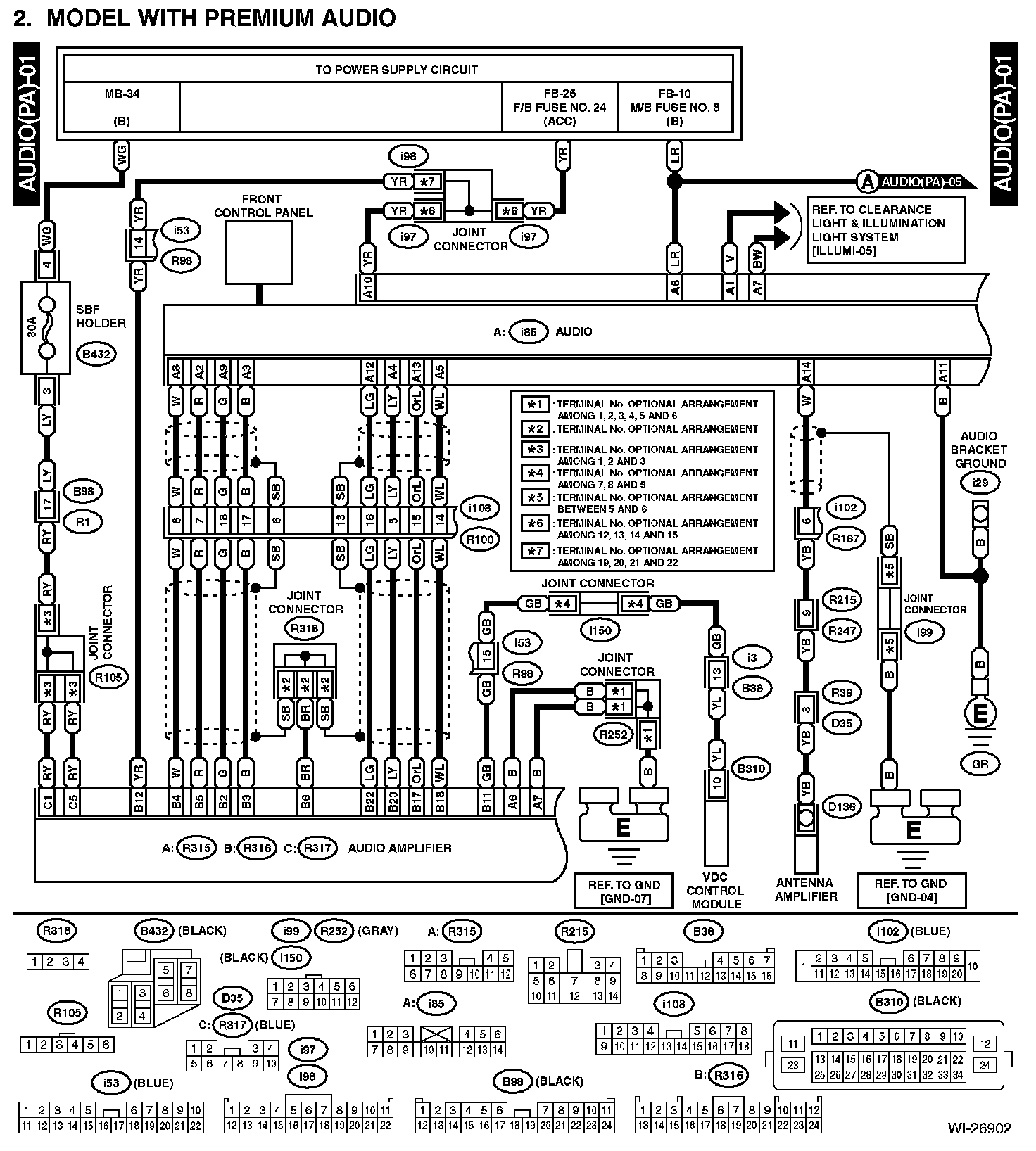

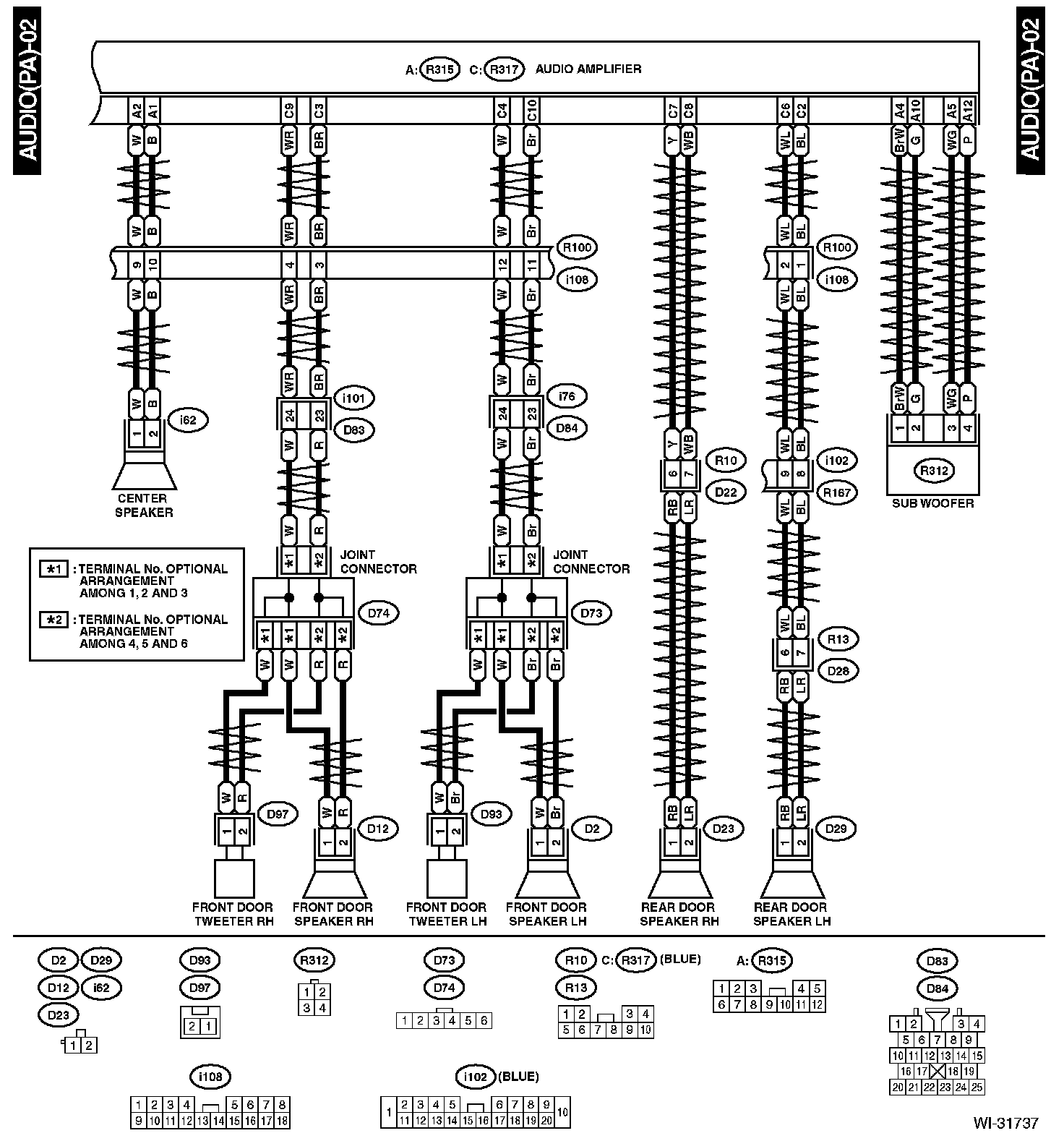

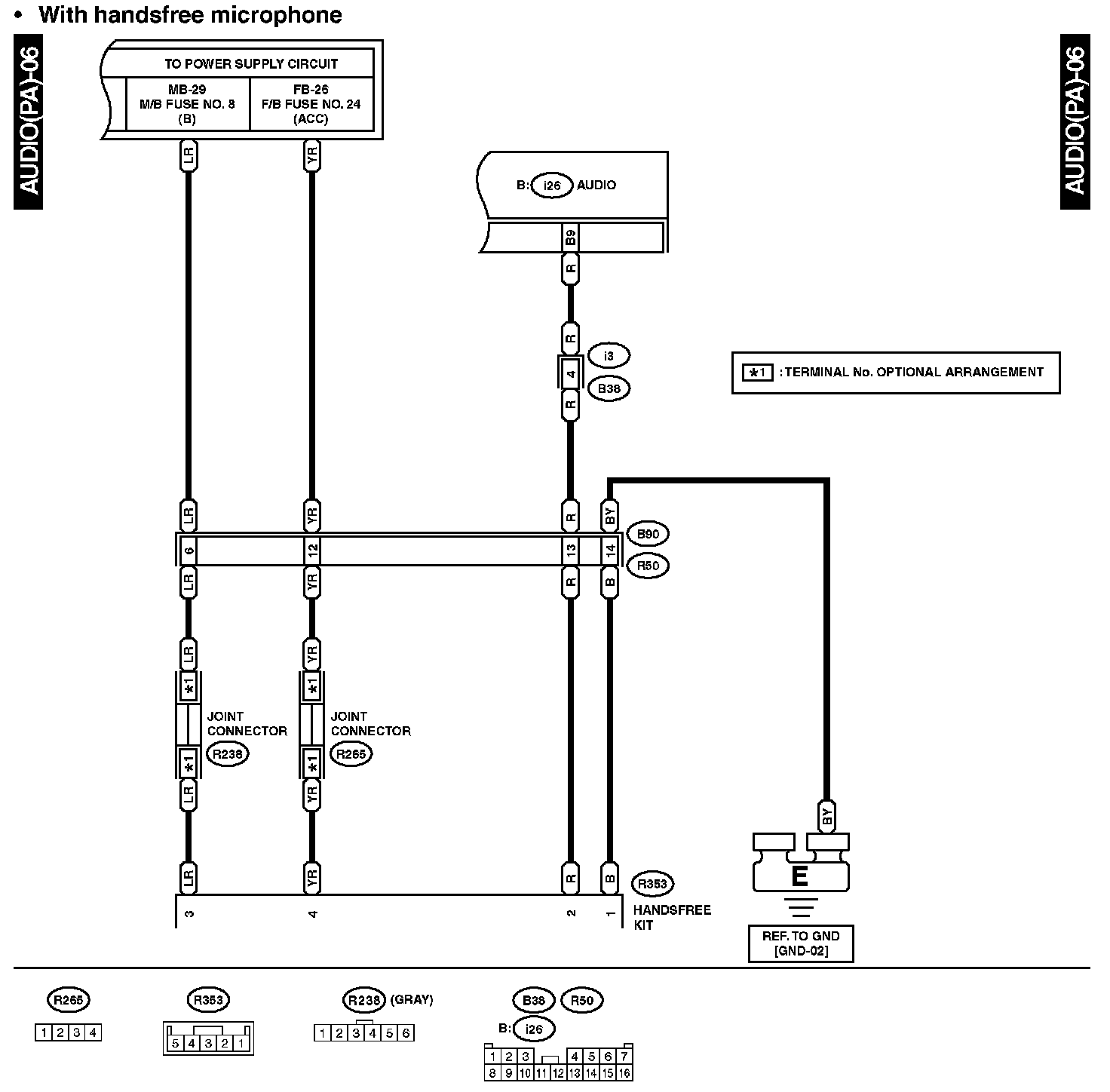

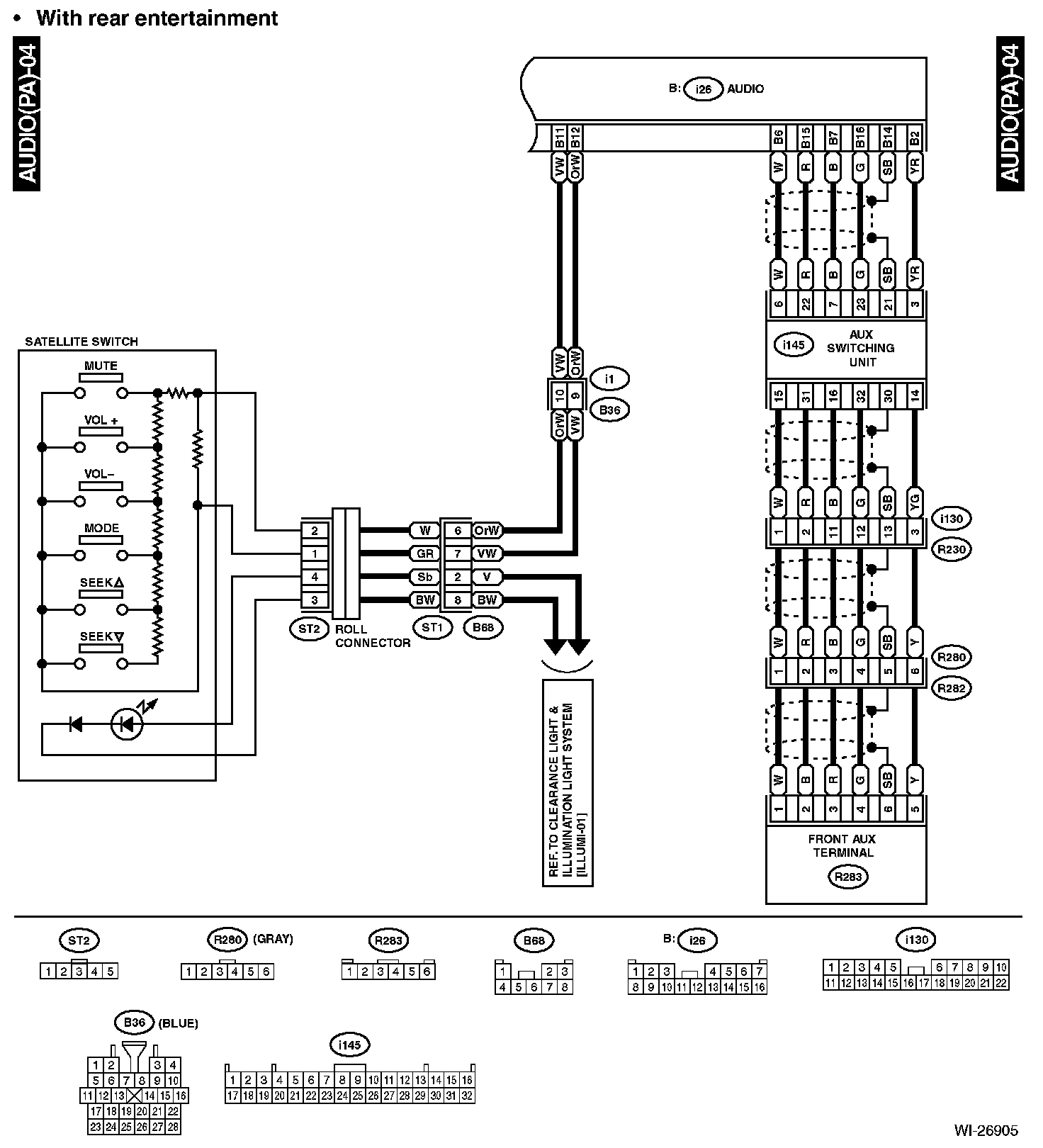

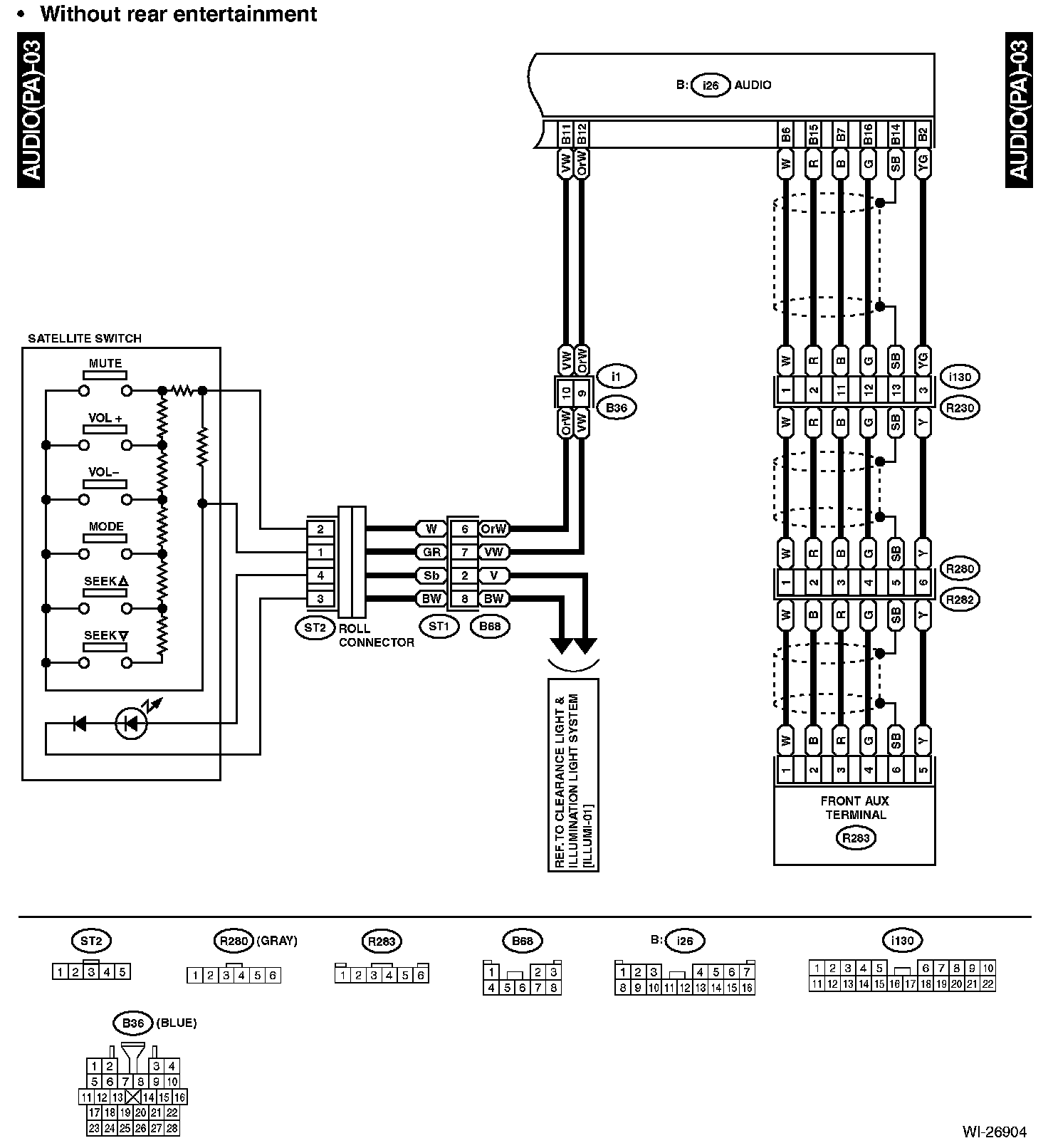

MODEL WITH PREMIUM AUDIO





















Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
