Radio, Stereo, and Compact Disc: Service and Repair

Control Panel

REMOVAL

1. Disconnect the ground cable from battery.

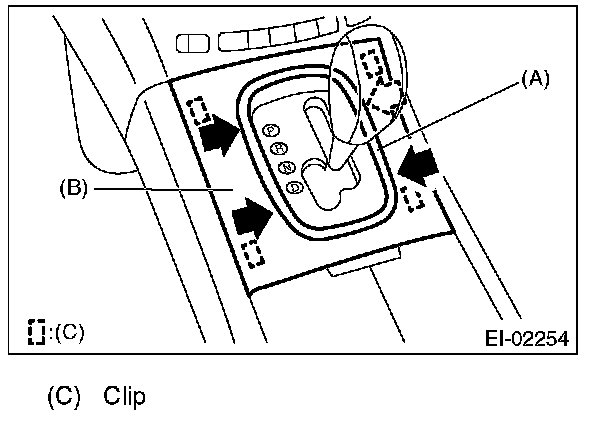

2. Remove the ring indicator (A) and console front panel (B).






NOTE: The ring indicator can be easily removed by inserting the clip remover or equivalent into the positions indicated by arrows.

3. Remove the instrument ornament on passenger's seat and inner panels on driver's seat.

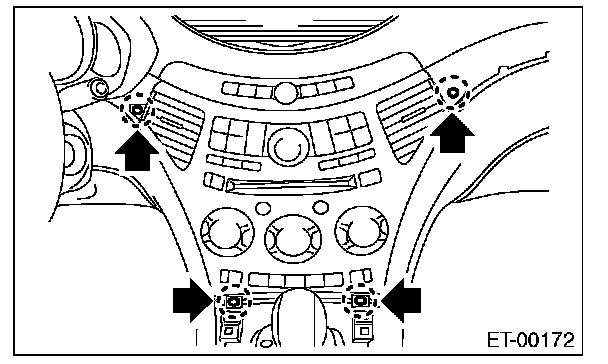

4. Remove the screws, and remove the control panel.






INSTALLATION

Install in the reverse order of removal.
