Operation CHARM: Car repair manuals for everyone.
Home >> Subaru >> 2011 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> i1-i223

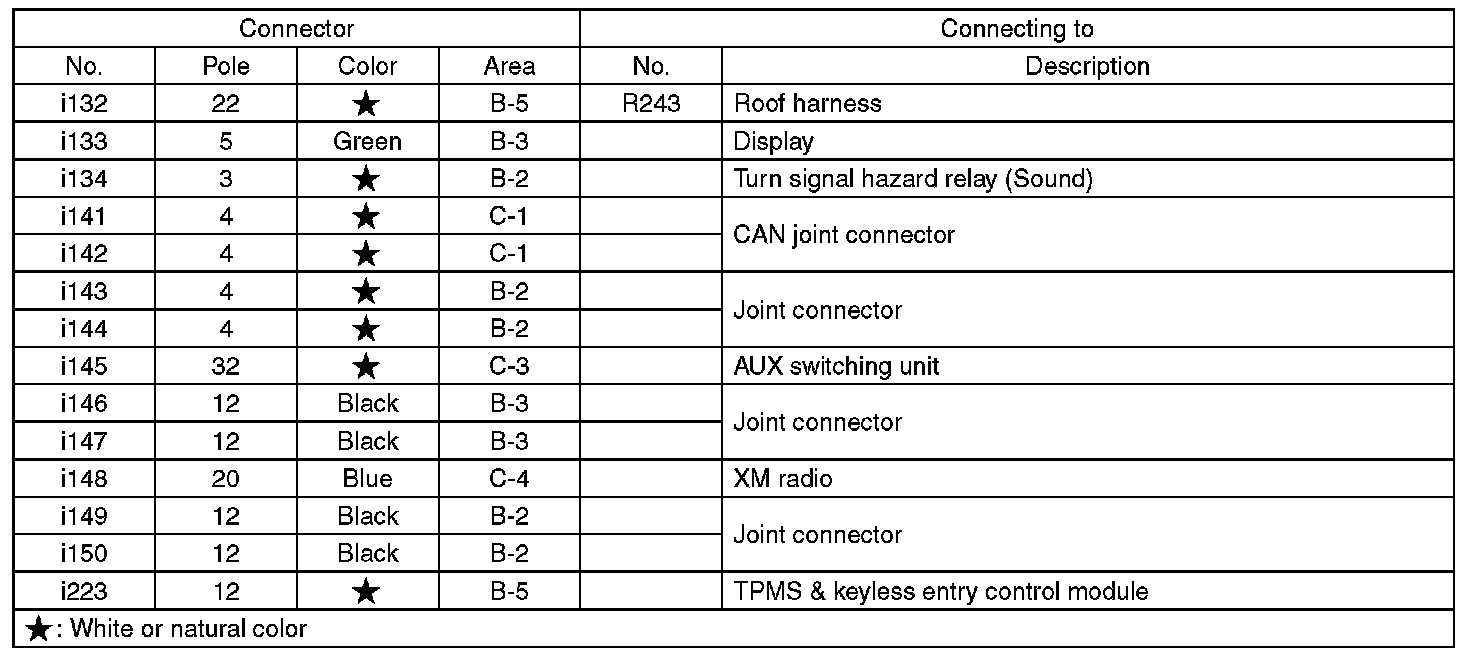

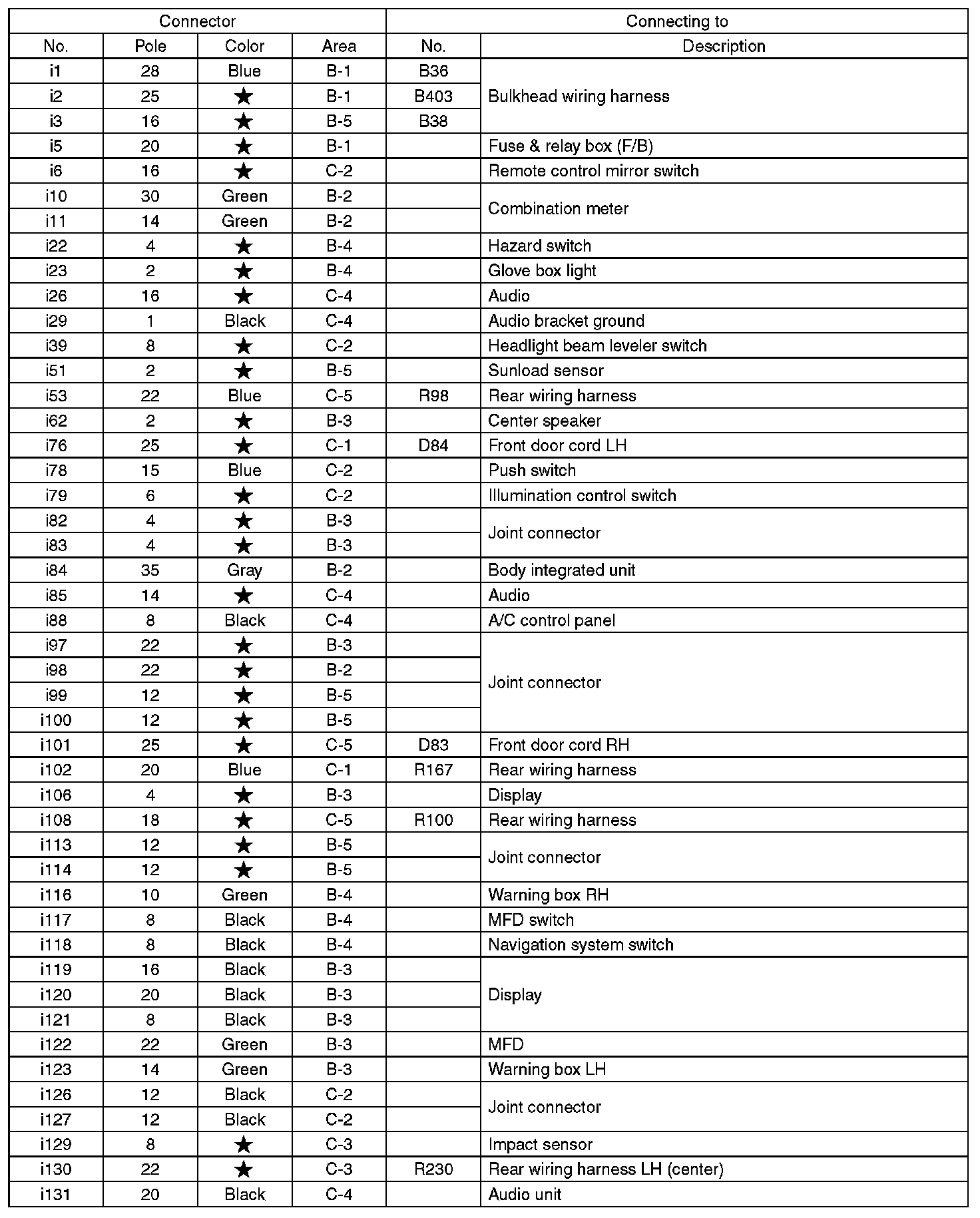

i1-i223

Instrument Panel Wiring Harness
