Seat Belt Systems
Seat Belt Systems

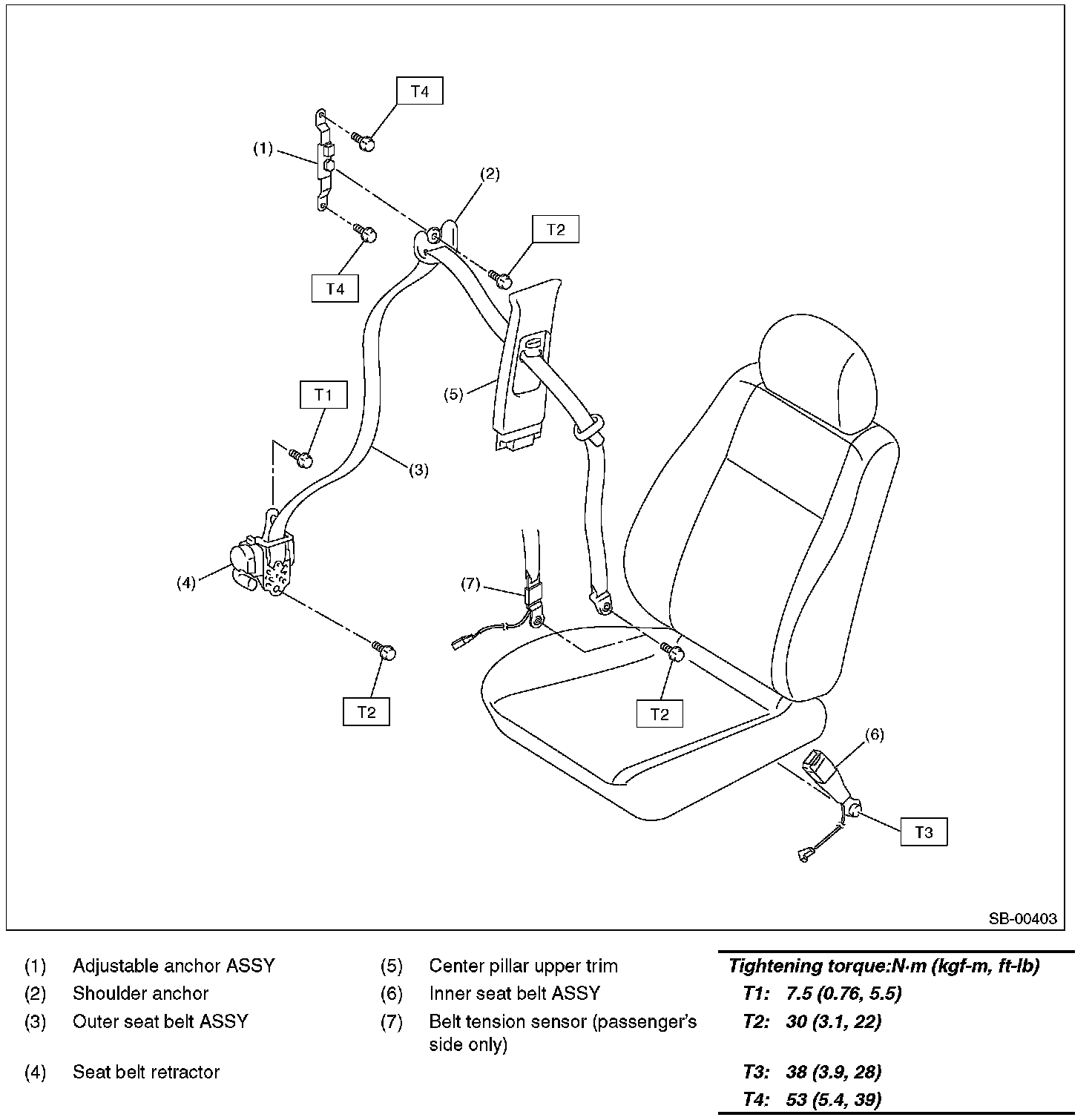

General Description
COMPONENT
1.
FRONT
SEAT BELT
2.
SECOND
SEAT BELT
3.
THIRD
SEAT BELT
