Radio, Stereo, and Compact Disc

Audio System

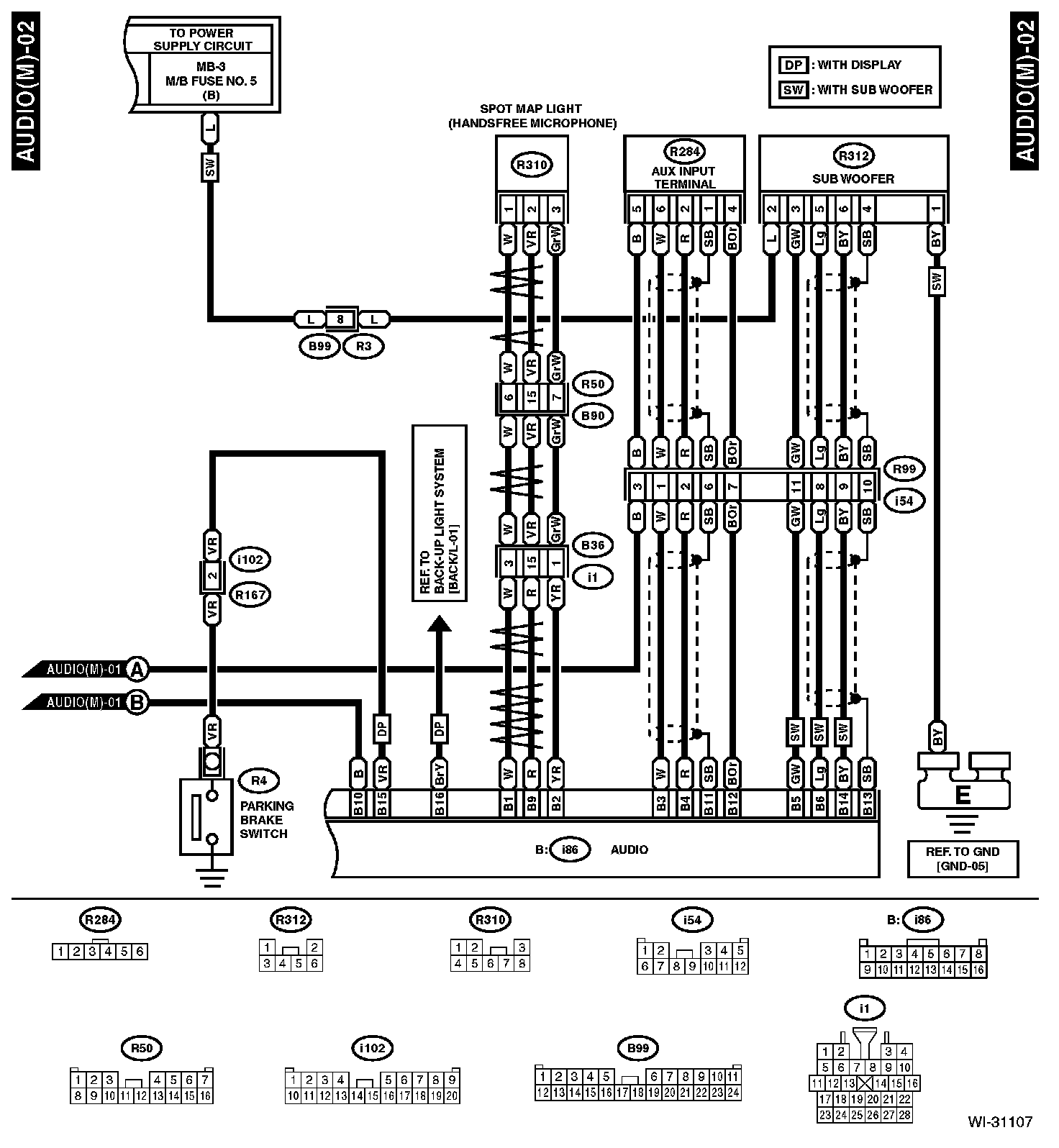

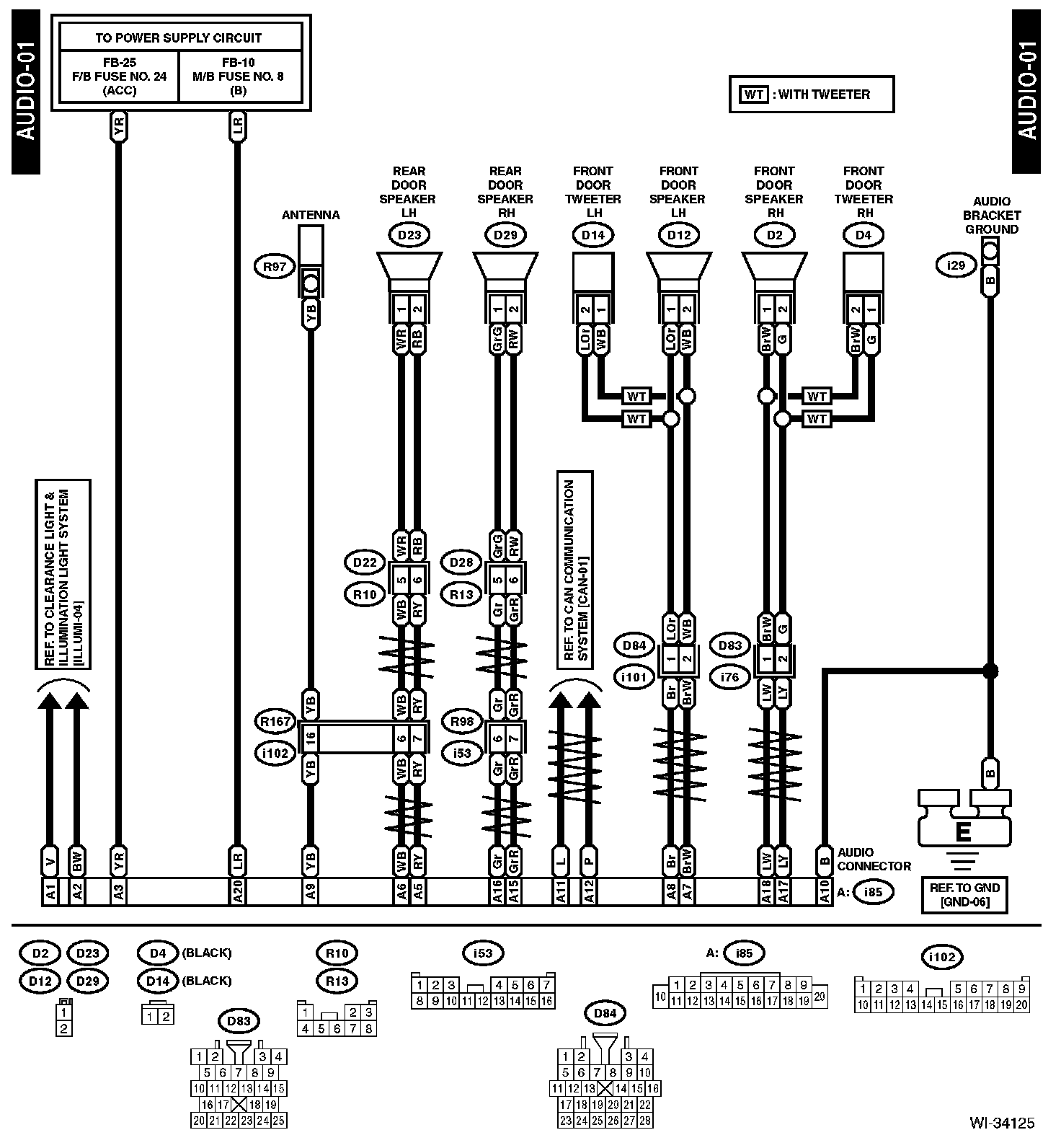

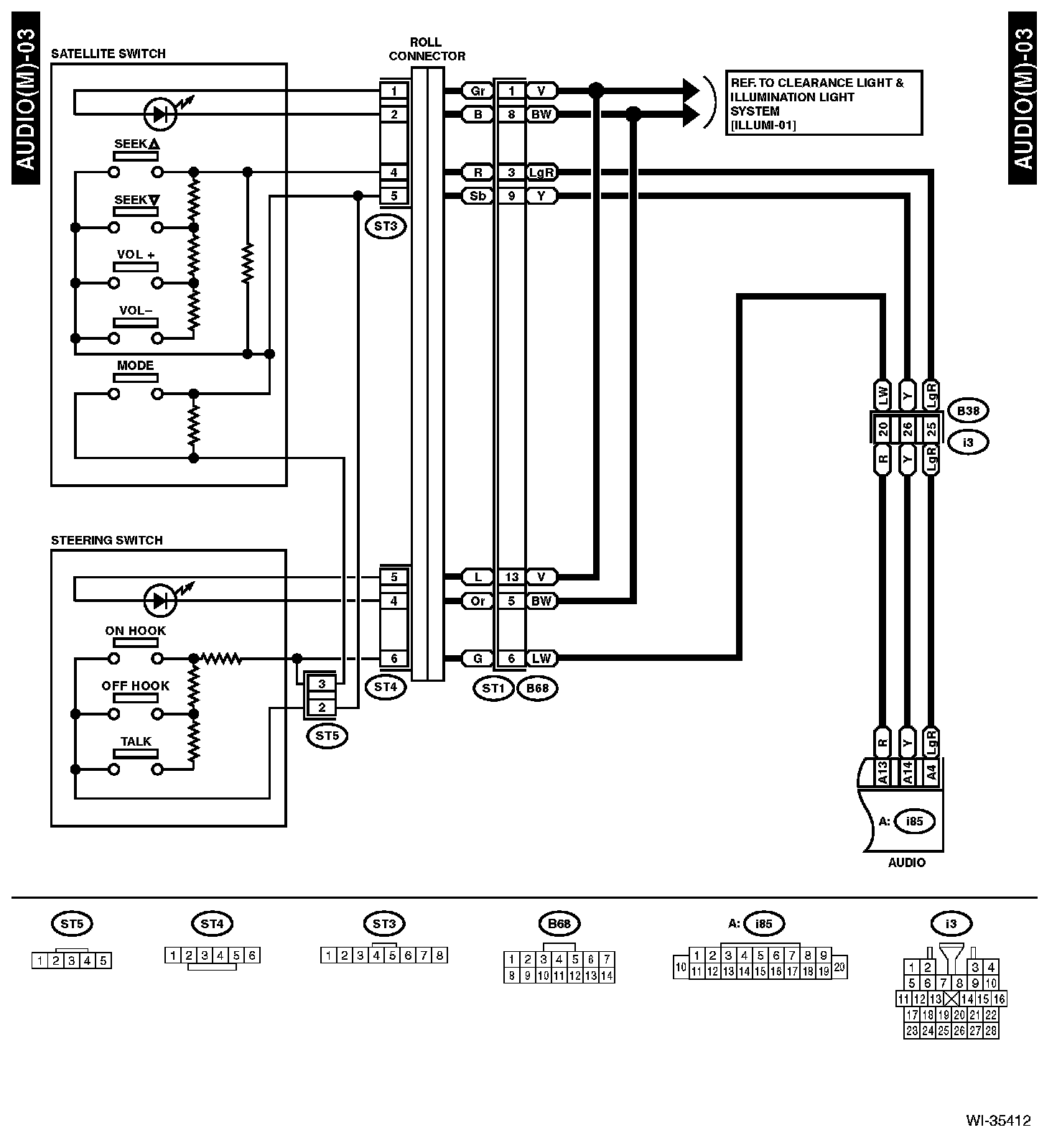

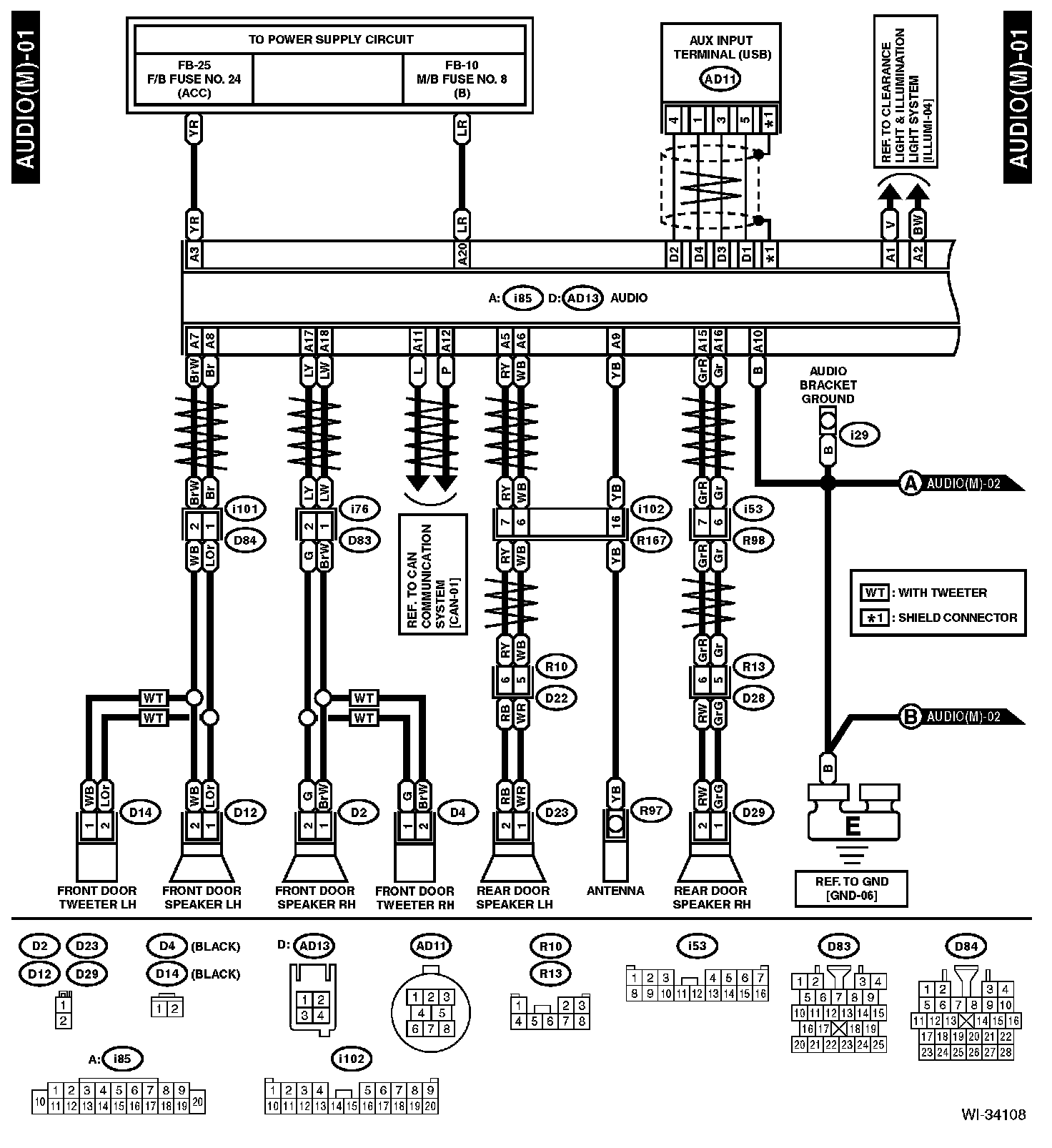

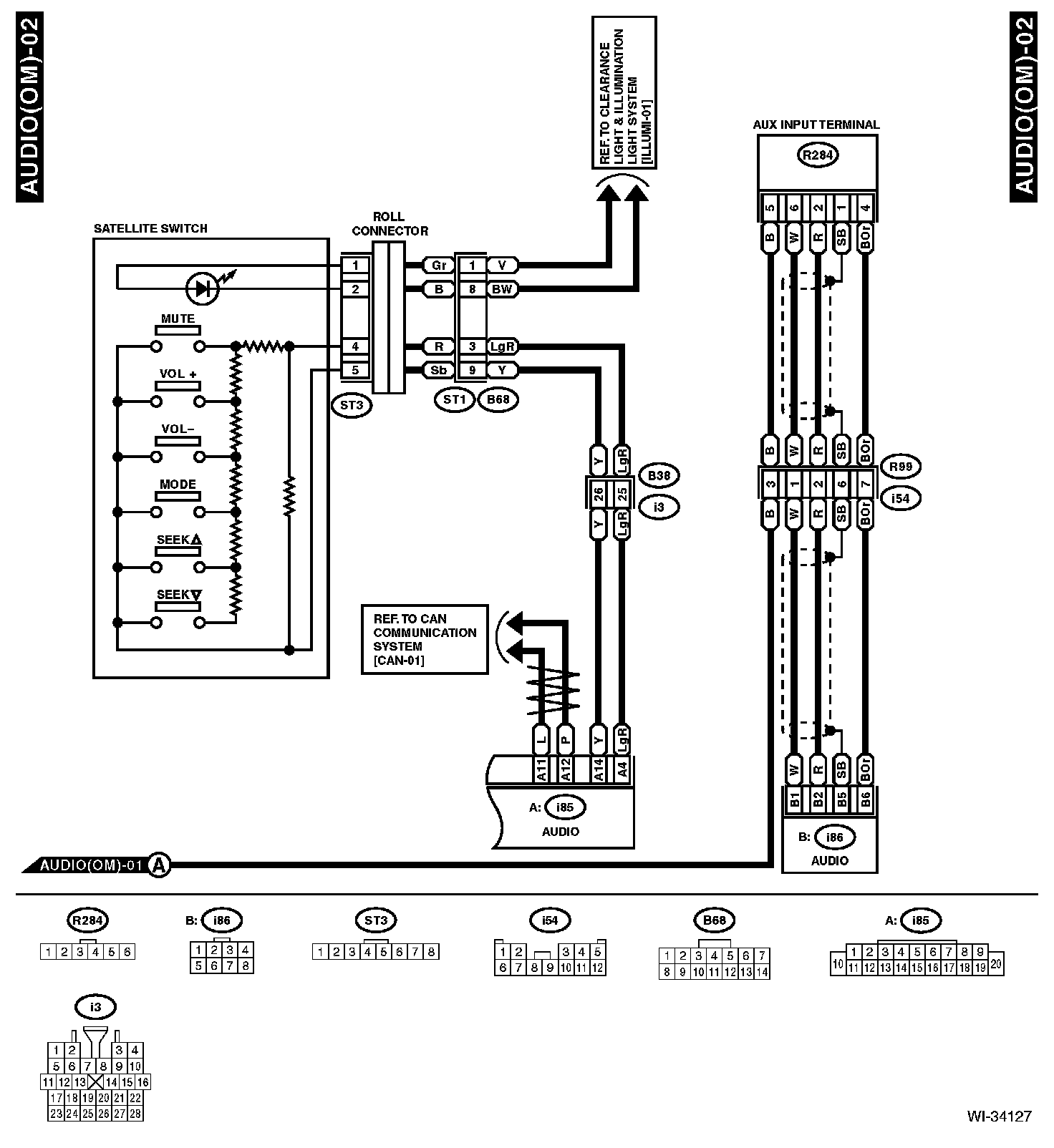

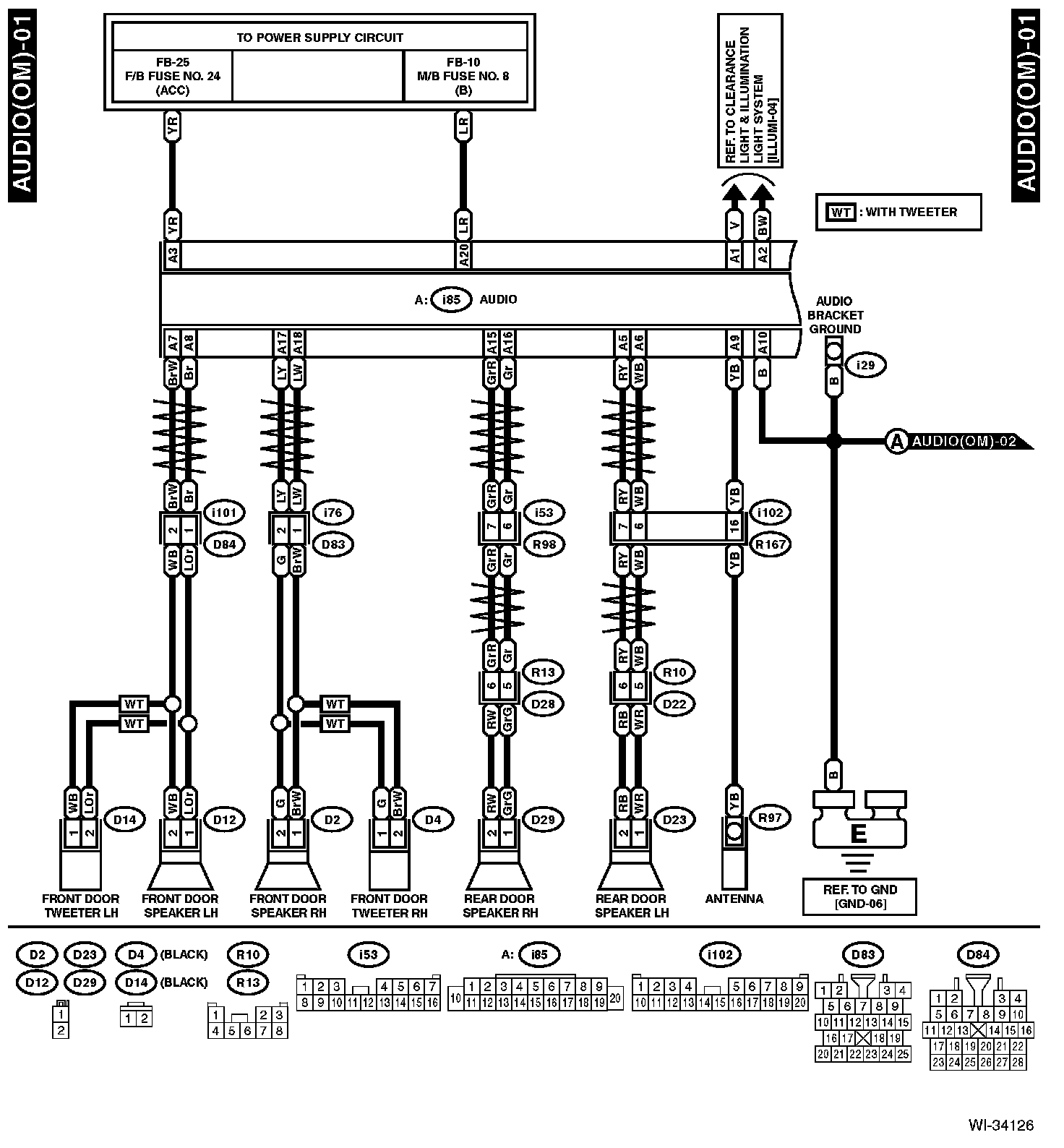

WIRING DIAGRAM

WITHOUT AUDIO






WITHOUT HANDSFREE MICROPHONE









WITH HANDSFREE MICROPHONE












Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
