Subaru
>>
2013
>>
Forester F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views

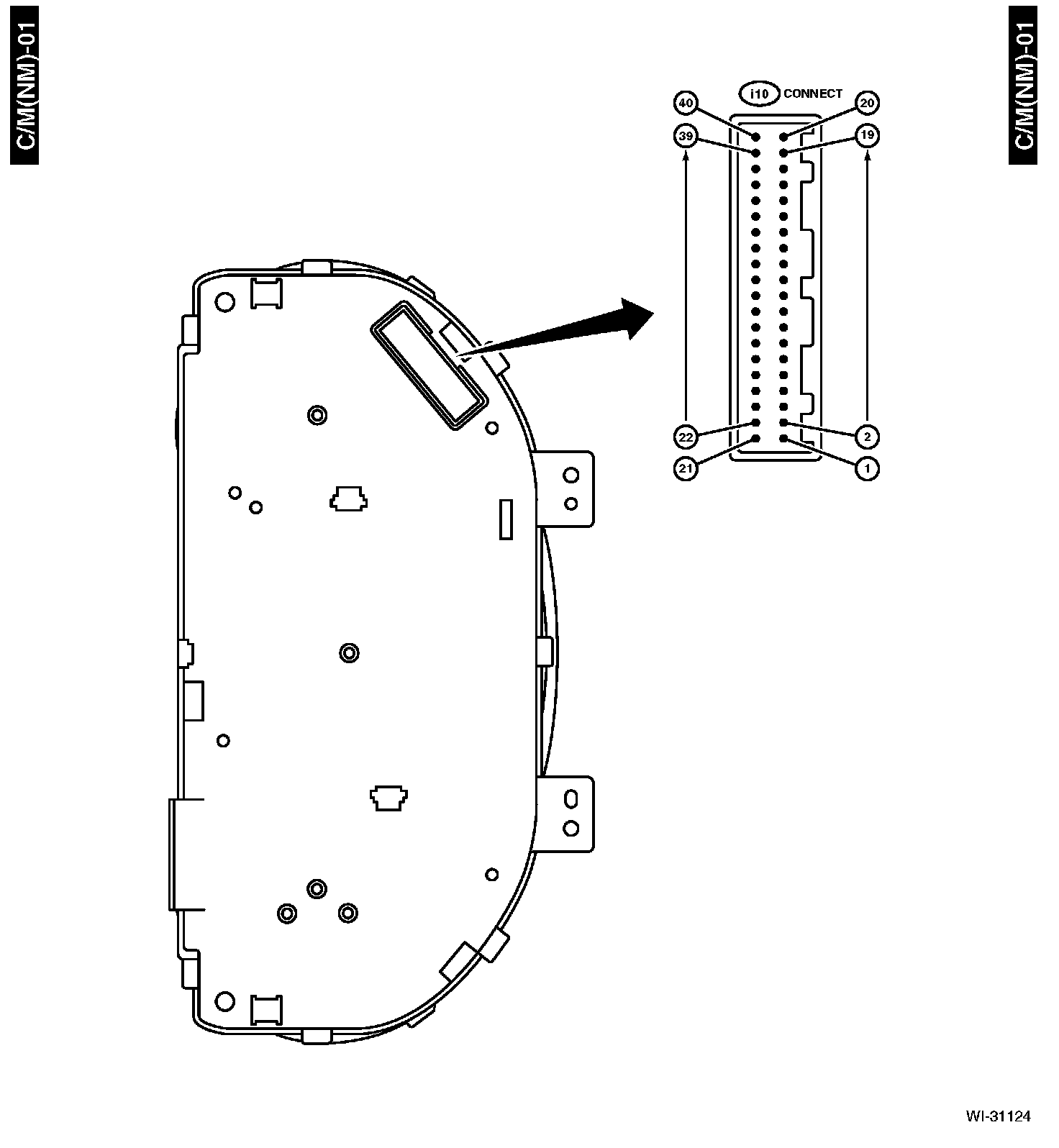

Connector Views
Combination Meter System
MODEL WITH NORMAL METER
MODEL WITH LUMINESCENT METER
