Cabin Air Filter / Purifier: Service and Repair

In-Cabin Microfilter: Removal and Installation

Replacement Procedure

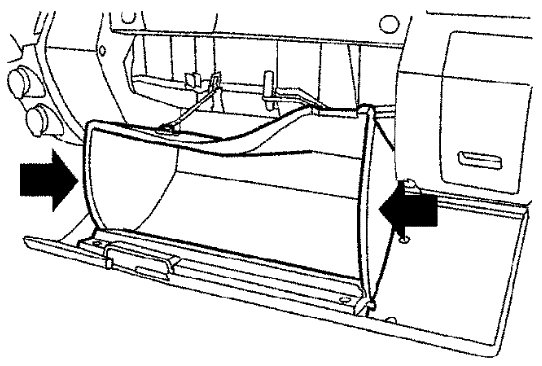

1) Open the lower glove box and press in on the sides so that it will open completely allowing it to hang by the cord.

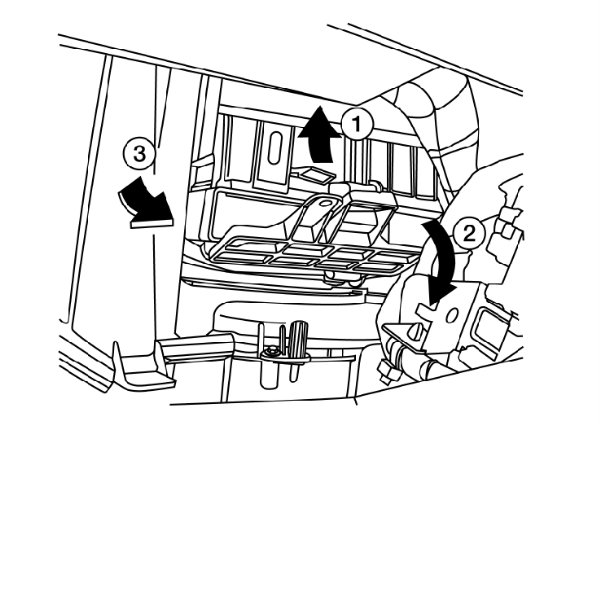

2) Gently lift up on the tab (1) then pull the in-cabin microfilter cover rearward (toward the rear of the vehicle [2]) and then down to remove the cover (3).






CAUTION:
Use care when lifting up on the tab to avoid damaging it.

3) Remove the in-cabin microfilters from the heater and cooling unit housing.

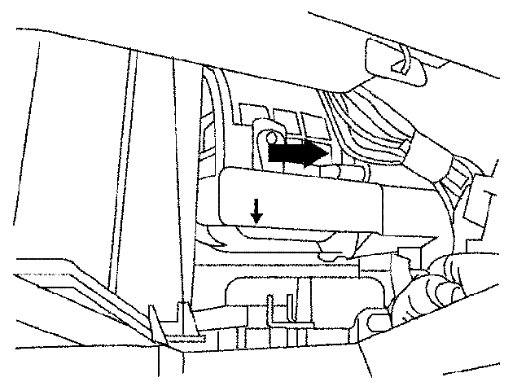

4) Insert the first new in-cabin microfilter into the heater and cooling unit housing and slide it over to the right. Insert the second new in-cabin microfilter into the heater and cooling unit housing as shown.






NOTE:
The in-cabin microfilters are marked with air flow arrows. The end of the microfilter with the arrow should face the rear of the vehicle. The arrows should point downward.

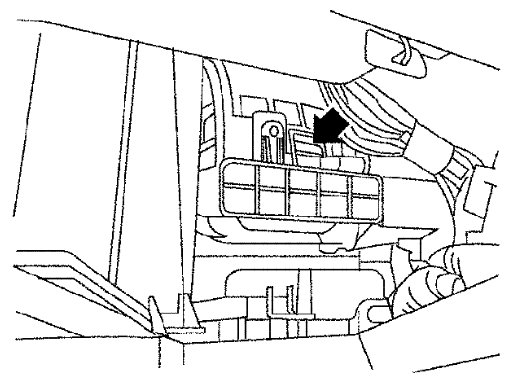

5) Install the in-cabin microfilter cover, make sure the tab is locked in place as shown.





6) Close the lower glove box completely.
