DTC 14
DTC 14

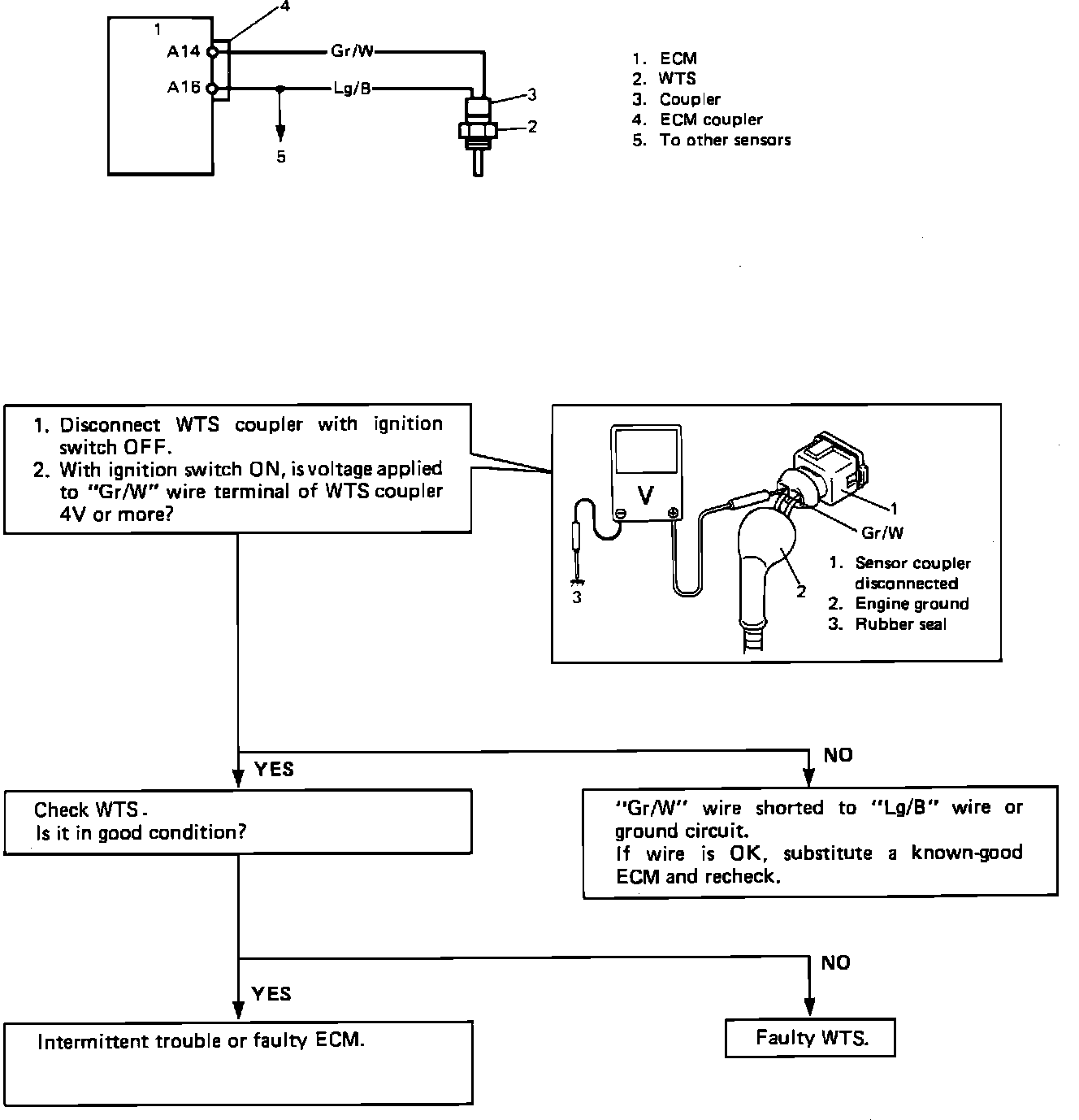

Fig. 62 Trouble Code 14, Water Temperature Sensor Circuit:

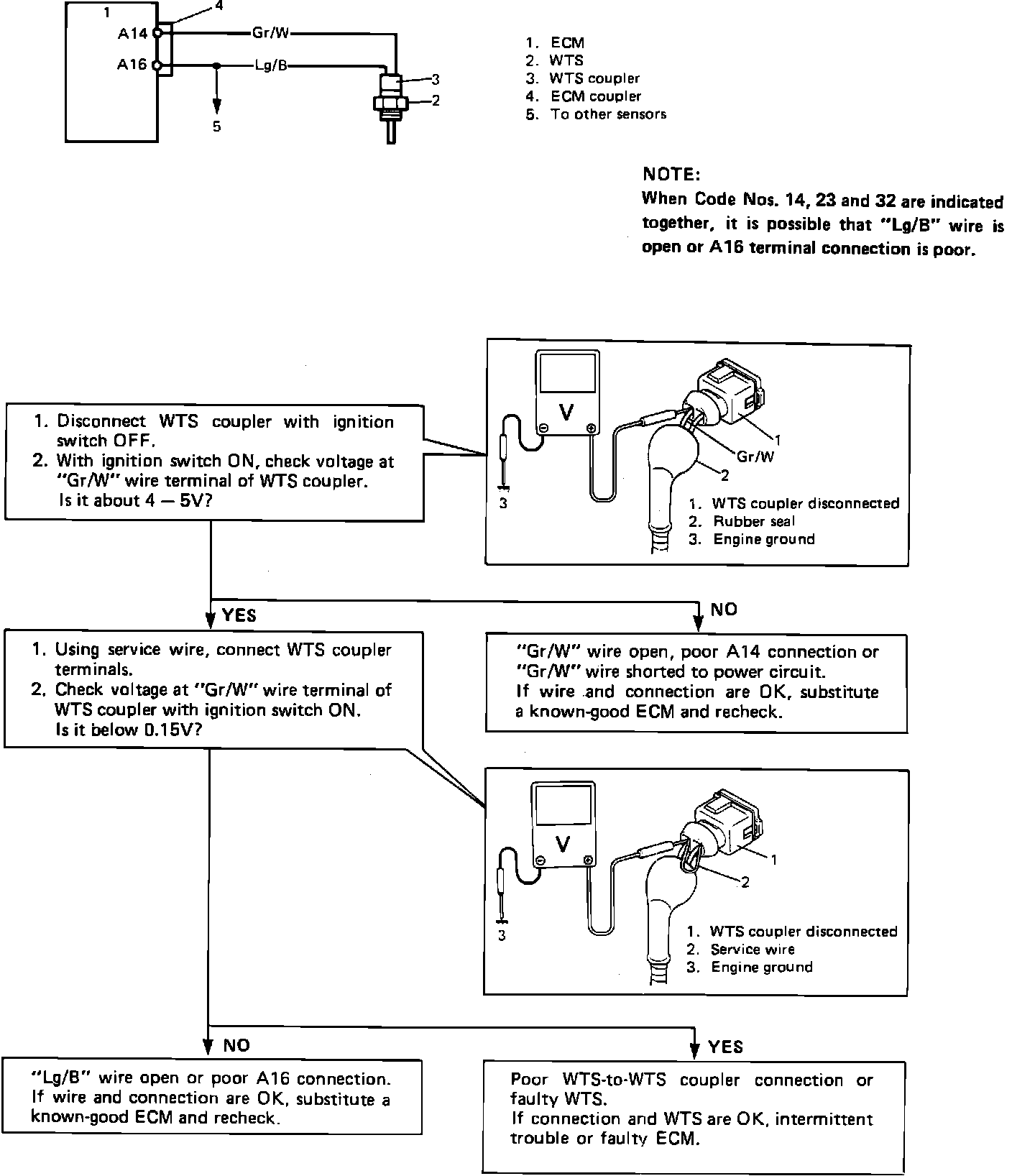

Fig. 63 Trouble Code 15, Water Temperature Sensor Circuit:
