Interior Dome Light / Warning Buzzer - Manual Correction

TSB No.
TS 2-14 10062

Section Title:
Body Electrical



Division:
Automotive

Category:
Technical



SUBJECT:
INTERIOR DOME LIGHT/WARNING BUZZER

MODEL:
ALL

YEAR:
1989 - 1993



CONDITION:
TEST/INSPECTION PROCEDURE SHOWN IS INCORRECT, AND A GOOD COMPONENT THAT IS IN PERFECT OPERATING CONDITION WILL TEST AS BAD

CAUSE:
TEST LEAD DIAGRAM AND WHEN INSTRUCTIONS ARE INCORRECT

CORRECTION:

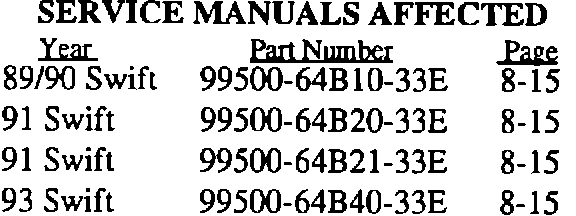

MAKE THE FOLLOWING CORRECTIONS IN THE ABOVE LISTED SERVICE MANUALS


LIGHT REMINDER WARNING BUZZER AND INTERIOR (DOME) LIGHT

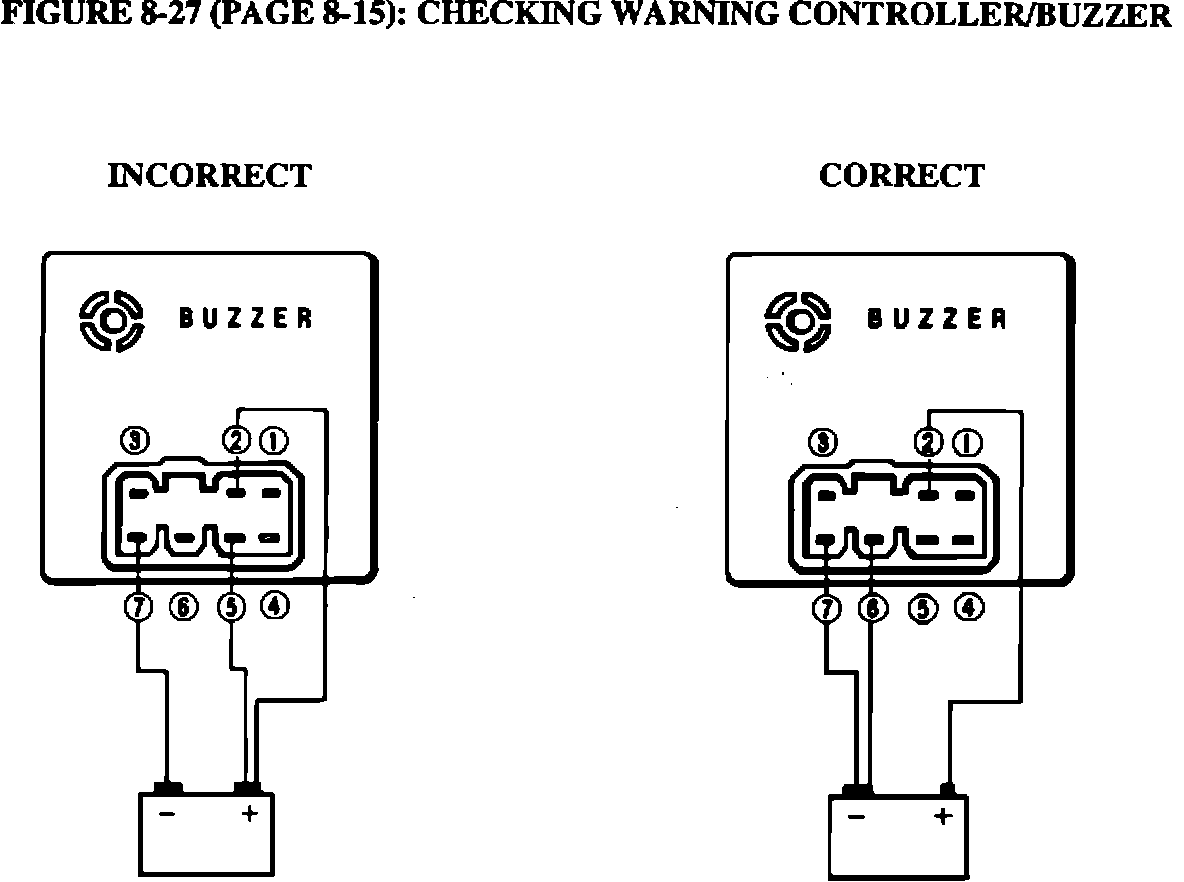

INSPECTION OF WARNING CONTROLLER/BUZZER



INCORRECT

First connect positive (+) terminal of battery to terminals (2) and (5) of controller and negative (-) one to (7) and then disconnect connection to terminal (5). If buzzer emits buzzing sound, then controller is in good condition. If not, replace.



CORRECT

First connect positive (+) terminal of battery to TERMINAL (2) of controller and negative (-) one to TERMINALS (6) AND (7) OF CONTROLLER. If buzzer emits buzzing sound, then controller is in good condition. If not, replace.
