A/T - Flex Plate Bolt Torque Specification Changed

90suzuki04
Division: Automotive

Category: Technical
TSB No. TS 3-03 11080

Section Title: Drivetrain

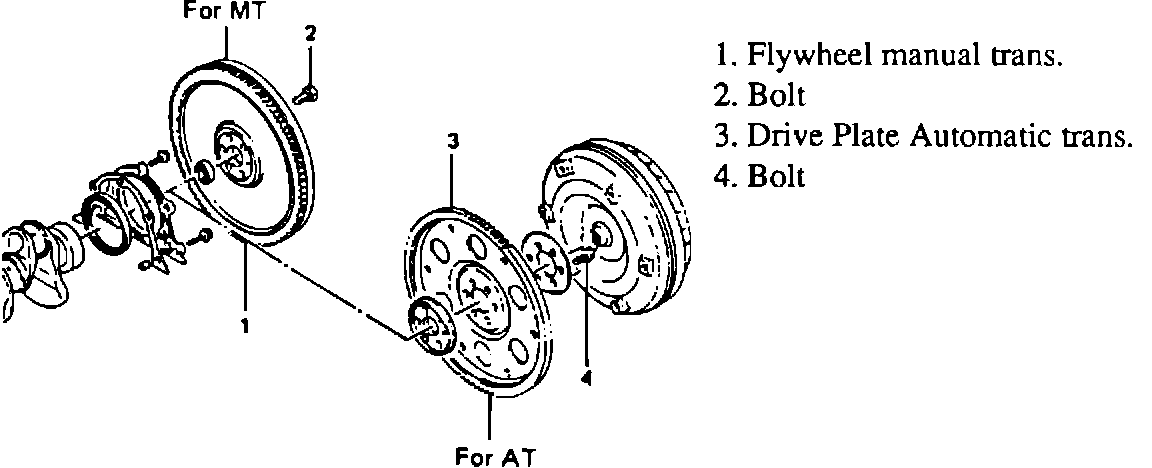

SUBJECT: FLYWHEEL AND DRIVE PLATE (FLEX PLATE) BOLT TIGHTENING TORQUE

MODEL: SWIFT
YEAR: ALL



This is to inform you that the flywheel and drive plate (flex plate) bolt tightening torque has been changed:
Please make the necessary notation in your Swift Service Manual.

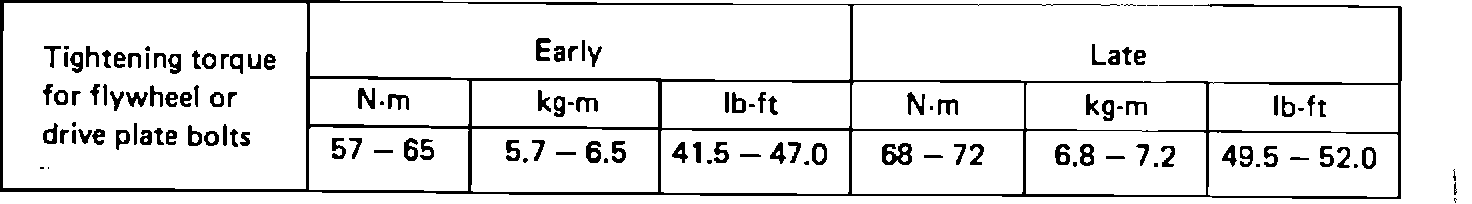

TIGHTENING TORQUE
