Stabilizer Bar - Diameter Modification

TSB No. TS 5-01 07310(R)
Section Title: Steering, Brakes, and Suspension

Division: Automotive
Category: Technical

SUBJECT:
MODIFICATION OF STABILIZER BAR JOINT SHAFT

MODEL: SWIFT
YEAR: 1989

Beginning Production Date: 12/89 AND LATER

The purpose of this bulletin is to inform you that the diameter of the stabilizer bar joint shaft has been increased and its related parts have been modified. As a result of this modification, early type and late type parts are not interchangeable.





MAIN MODIFICATION

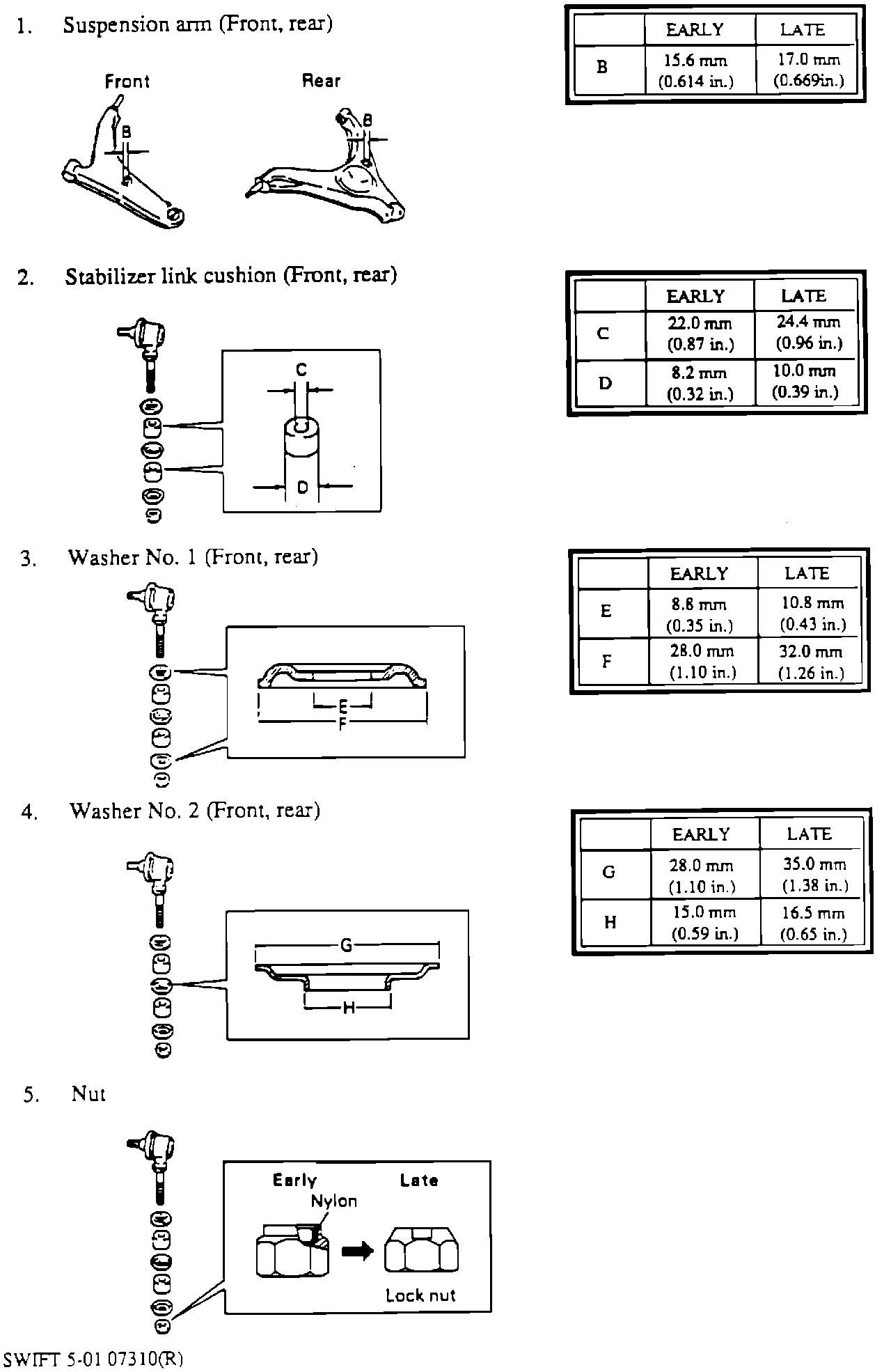

MODIFICATION OF RELATED PARTS





Part Numbers

NOTE:
1. INTERCHANGEABILITY

2. NOTICE FOR SERVICING
The late type stabilizer bar joint has been made thicker in its diameter. Due to this modification, the related parts have been also modified. Should the early type stabilizer bar joint and its related parts be used on this type vehicle, the stabilizer will not function properly as designed. Therefore, make sure to install the parts appropriate for the vehicle.
