Oil Pressure Warning Lamp/Indicator: Testing and Inspection

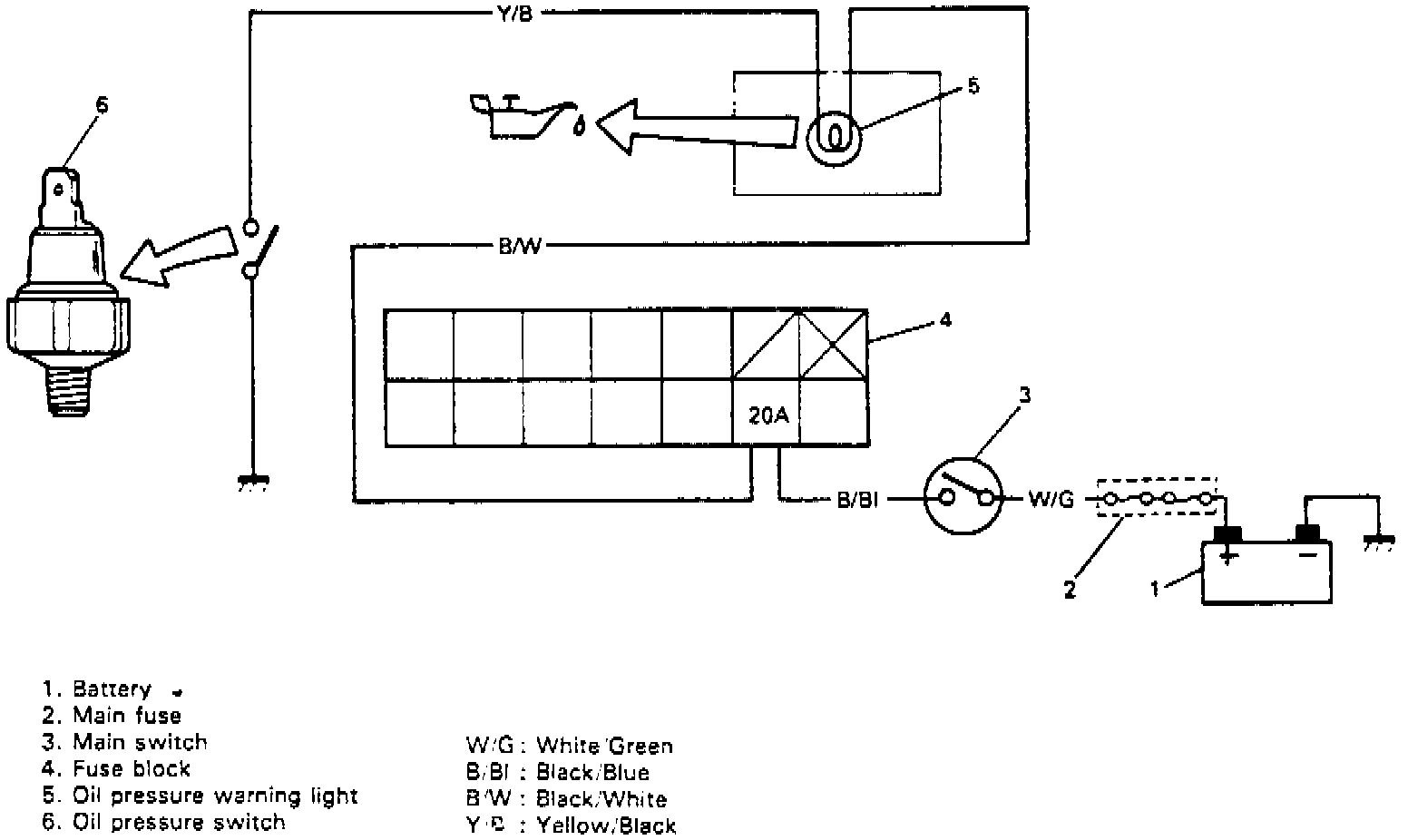

Fig. 9 Oil Pressure Light Wiring:

1. Using a suitable ohmmeter, disconnect Yellow/Black and Black/White lead wires from oil pressure switch. Measure switch continuity, Fig. 9.
2. With engine running, there should be no continuity.
3. With engine stopped, there should be continuity.
