Home
>>
Suzuki
>>
1994
>>
Swift L4-1298cc 1.3L DOHC 3 MFI 16V
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
Instrument Panel, Gauges and Warning Indicators: Testing and Inspection

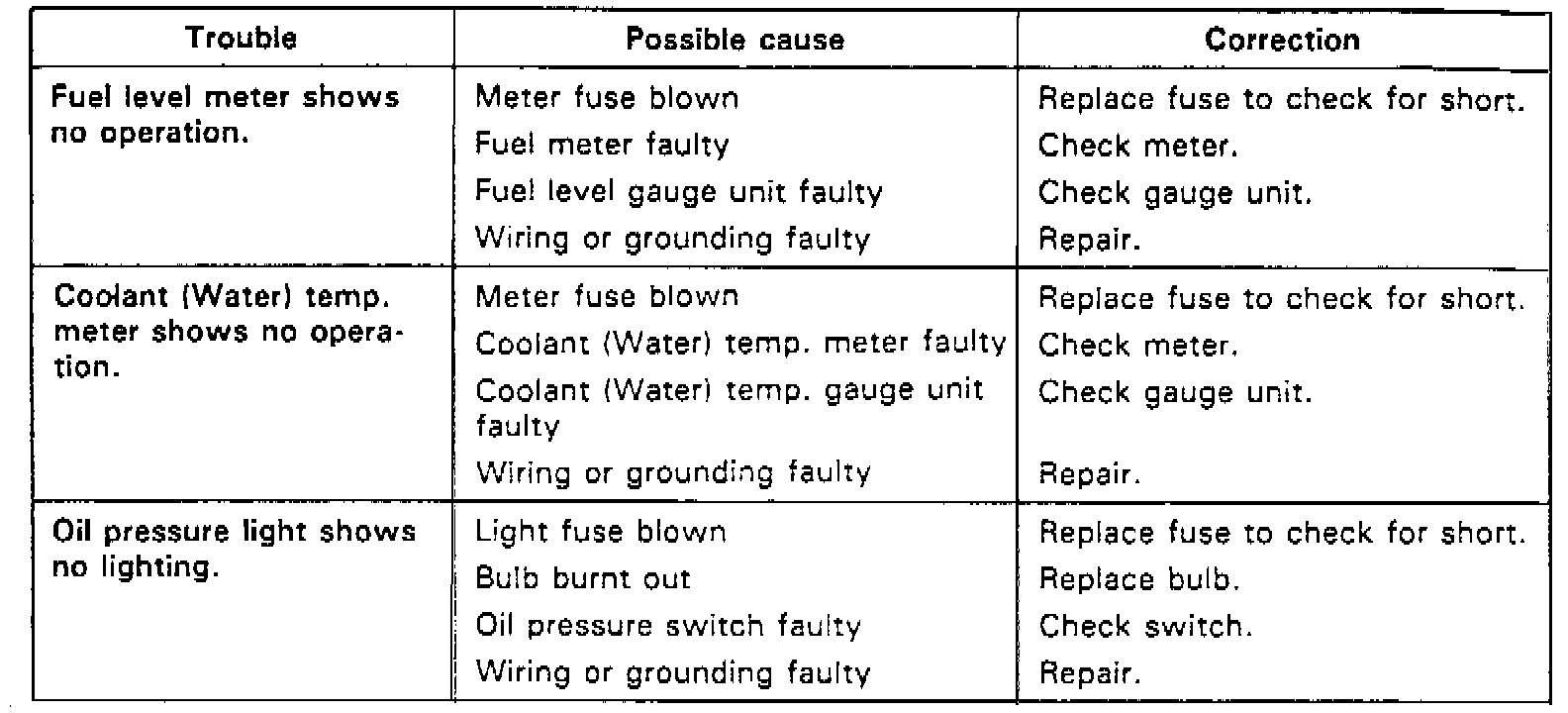

Fig. 1 Troubleshooting Chart:
