Radiator Fan Control System

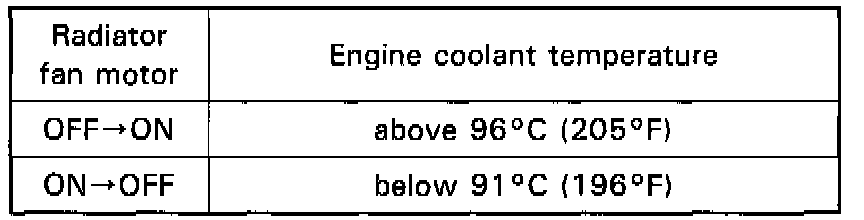

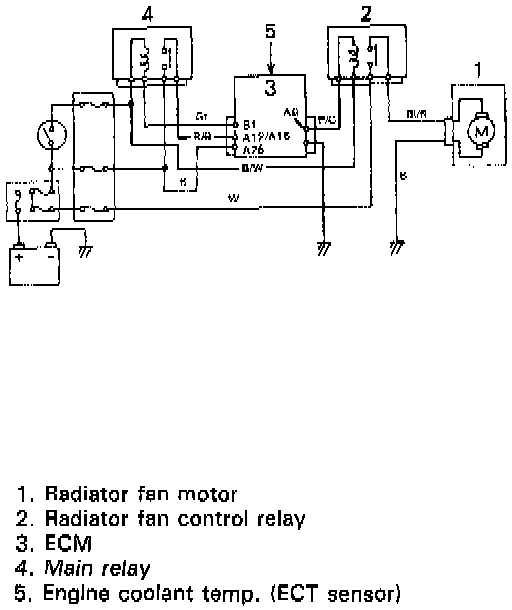

This system controls operation (ON/OFF) of the radiator fan motor. Radiator fan motor is turned ON and OFF by its relay which ECM controls. Radiator fan motor is turned ON/OFF under following engine coolant temp.
