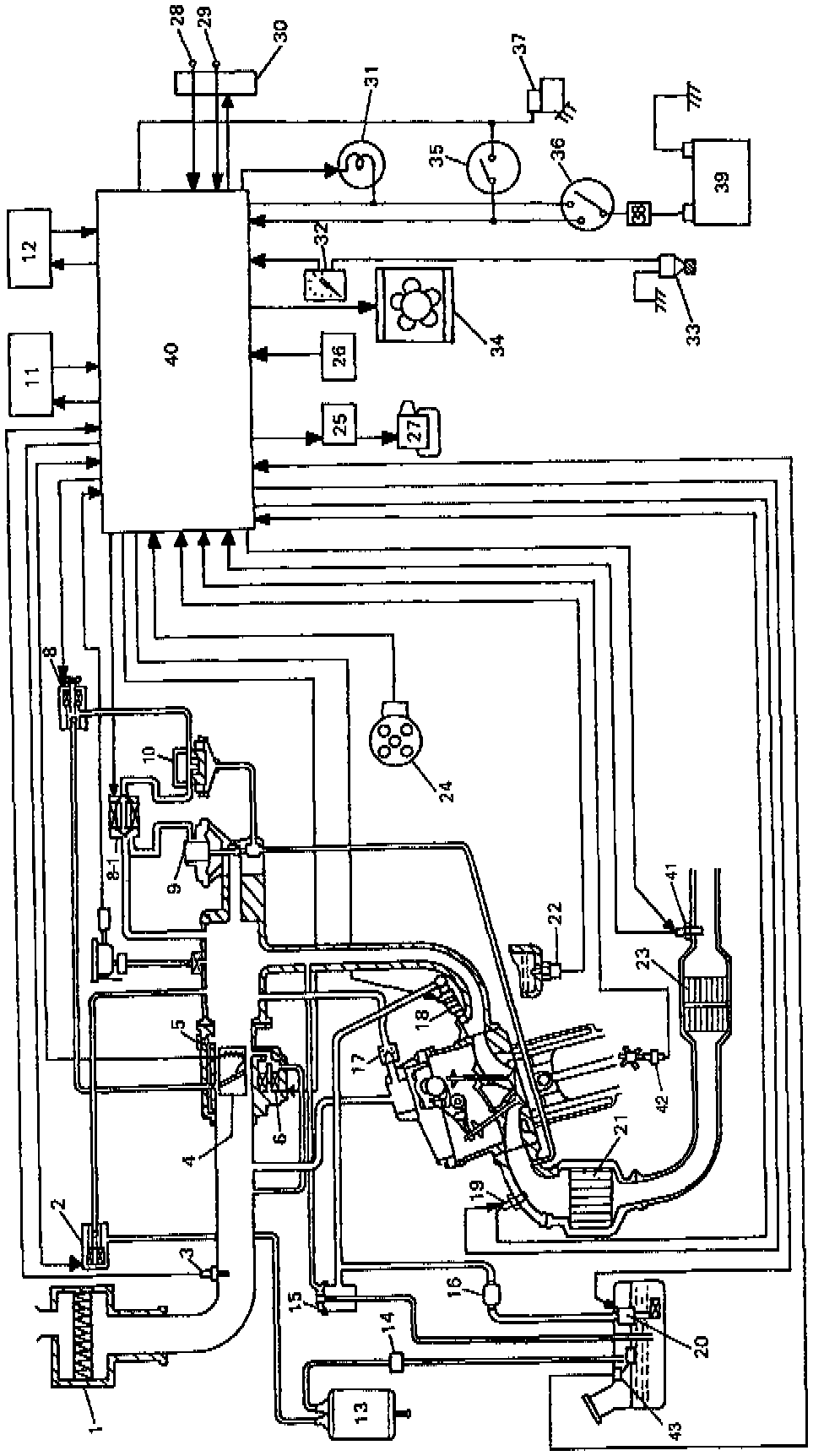

Mechanical Diagrams

1. Air cleaner
2. EVAP canister purge valve
3. Intake air temperature sensor
4. Throttle position sensor
5. Idle air (speed) adjusting screw
6. Idle air control valve
7. Manifold absolute pressure sensor
8. EGR solenoid vacuum valve
8-1. EGR solenoid vacuum valve for system check
9. EGR valve
10. EGR pressure transducer
11. Transmission control module (A/T)
12. NC amplifier (if equipped)
13. EVAP canister
14. Tank pressure control valve
15. Fuel pressure regulator
16. Fuel filter
17. PCV valve
18. Fuel injector
19. Heated oxygen sensor-1
20. Fuel pump
21. Warm-up three way catalytic convertor
22. Engine coolant temperature sensor
23. Three way catalytic convertor
24. Camshaft position sensor
25. Ignitor
26. Electric load (heater blower, small light, rear defogger)
27. Ignition coil
28 Diagnosis switch terminal
29. Test switch terminal
30. Diagnosis connector-1 (Monitor connector)
31. Malfunction indicator lamp ("CHECK ENGINE" light)
32. Speedometer
33. Vehicle speed sensor
34. Radiator fan
35. Clutch pedal position switch (M/T) or transmission range switch (Park/ Neutral position switch) (A/T)
36. Ignition switch
37. Starter magnetic switch
38. Main fuse
39. Battery
40. Engine control module
41. Heated oxygen sensor-2
42. Crankshaft position sensor
43. Fuel level sensor (gauge)
