Swift L4-1298cc 1.3L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Engine Room Harness
>>

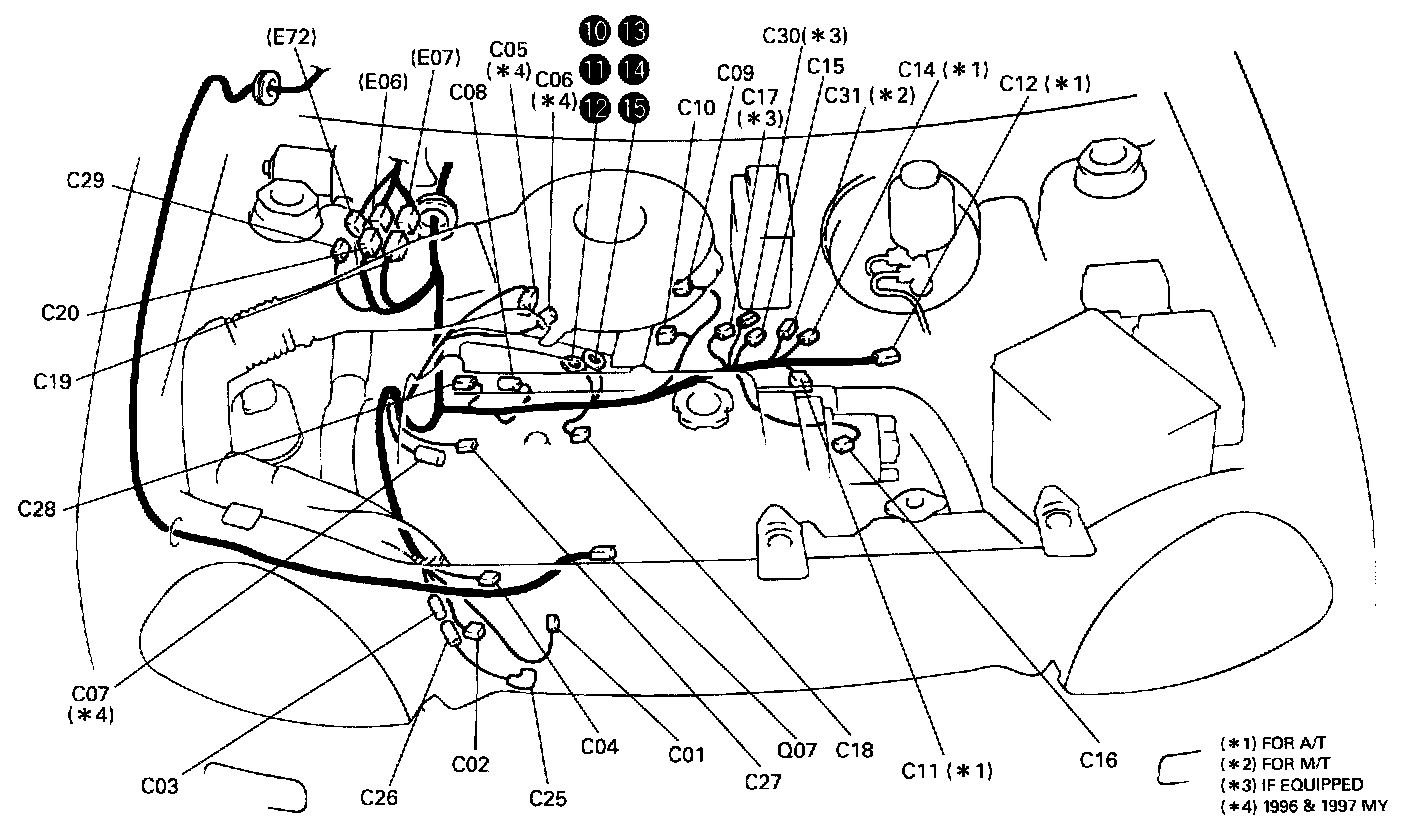

C: Engine Harness, Power Steering Wire & Q: Air Bag Harness
C: Engine Harness, Power Steering Wire & Q: Air Bag Harness
