Direct Clutch and 2ND Brake Solenoid Valves

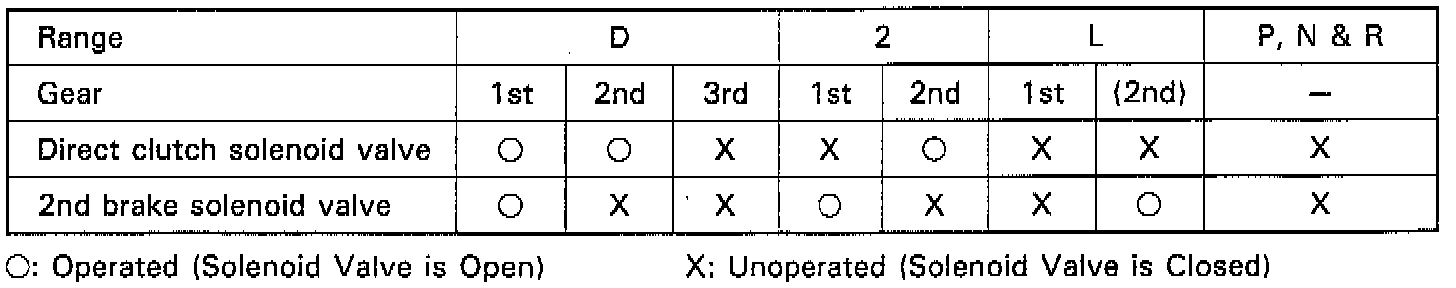

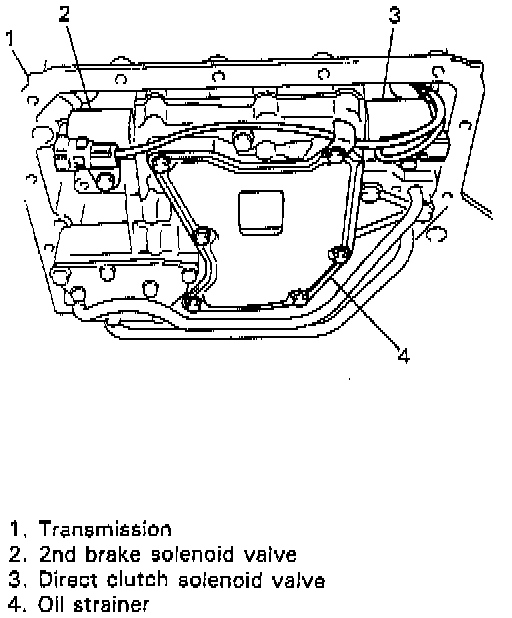

These solenoid valves are mounted on the valve body. They are turned ON and OFF by the signals from the transmission control module and actuate each shift valve (1 - 2 and 2 - 3 valves) so as to control transmission gear shift. 2nd brake solenoid valve operates 1 - 2 shift valve, and direct clutch solenoid valve does 2 - 3 shift valve.
