Cruise Control Servo Cable: Service and Repair

CRUISE CABLE





Cable Play Inspection and Adjustment
1) Remove actuator cap.
2) With actuator lever returned at original position (Where lever does not move clockwise any further), check cruise cable for play.

Cable play "a" : 1-2 mm (0.04-0.08 in.)

If it is out of specification, adjust it as follows

3) Loosen cable lock nut.
4) Adjust cable play to specified value by turning adjusting nut.
5) Tighten lock nut securely after adjustment.





Removal
1) Disconnect cruise cable from cruise control arm and accelerator bracket.
2) Remove actuator cap and disconnect cruise cable from actuator.
3) Release cable from all clamps.
4) Remove cable from vehicle.

Installation
Install cruise cable by reversing removal procedure.

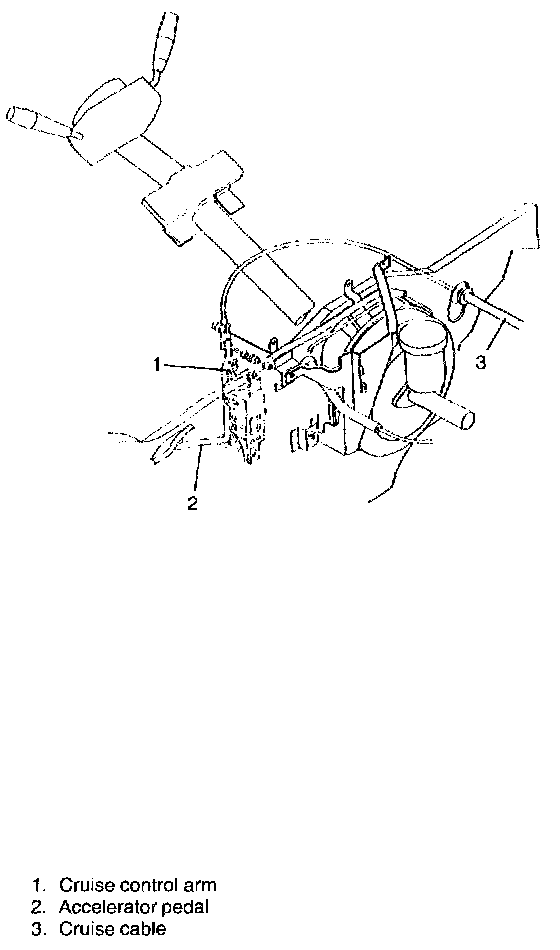

Refer to left figure for proper clamp location and cable routing.
Adjust cable play to specification referring to "Cable Play Inspection and Adjustment".
