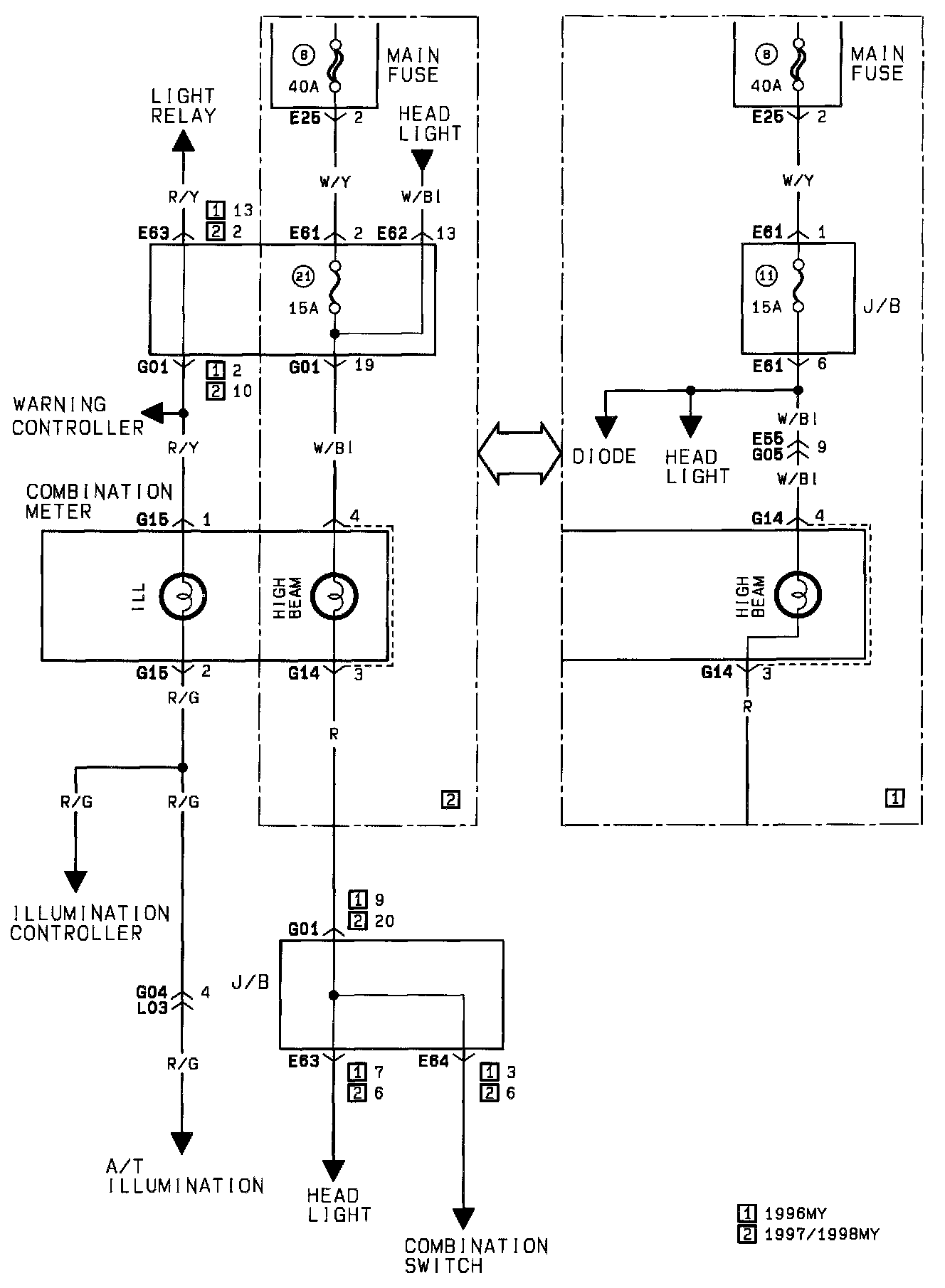

Warning & Indicator Lamp

Part 1 Of 3:

Warning & Indicator Lamp (Part 1 of 3)
ABS Control Module
ABS Check Relay
Combination Meter
ECM (M/T)/PCM (A/T)
Generator
Hazard Warning Switch
Ignition Switch
Oil Pressure Switch
Sensing And Diagnostic Module (SDM)

Part 2 Of 3:

Warning & Indicator Lamp (Part 2 of 3)
ABS Control Module
Brake Fluid Level Switch
DRL Controller
Engine Control Module
Ignition Switch
Parking Brake Switch
Rear Defogger Switch
Warning Control Module

Part 3 Of 3:

Warning & Indicator Lamp (Part 3 of 3)
A/T Illumination
Combination Meter
Diode
Head light
Light Relay
Main Fuse
Warning Controller
