Windshield Washer Pump: Service and Repair

REMOVAL
1. Disconnect negative cable at battery.
2. Remove front fender lining (LH).

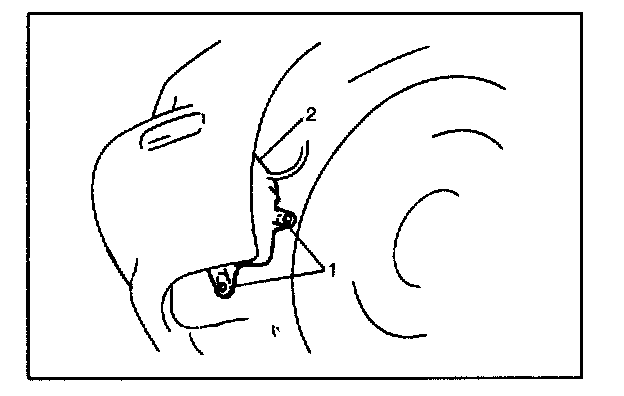

3. Remove washer tank fitting screws (1).
4. Disconnect pump lead wires and hoses.
5. Remove washer tank (2).
6. Remove pump from tank.

INSTALLATION
Reverse removal procedure for installation.
