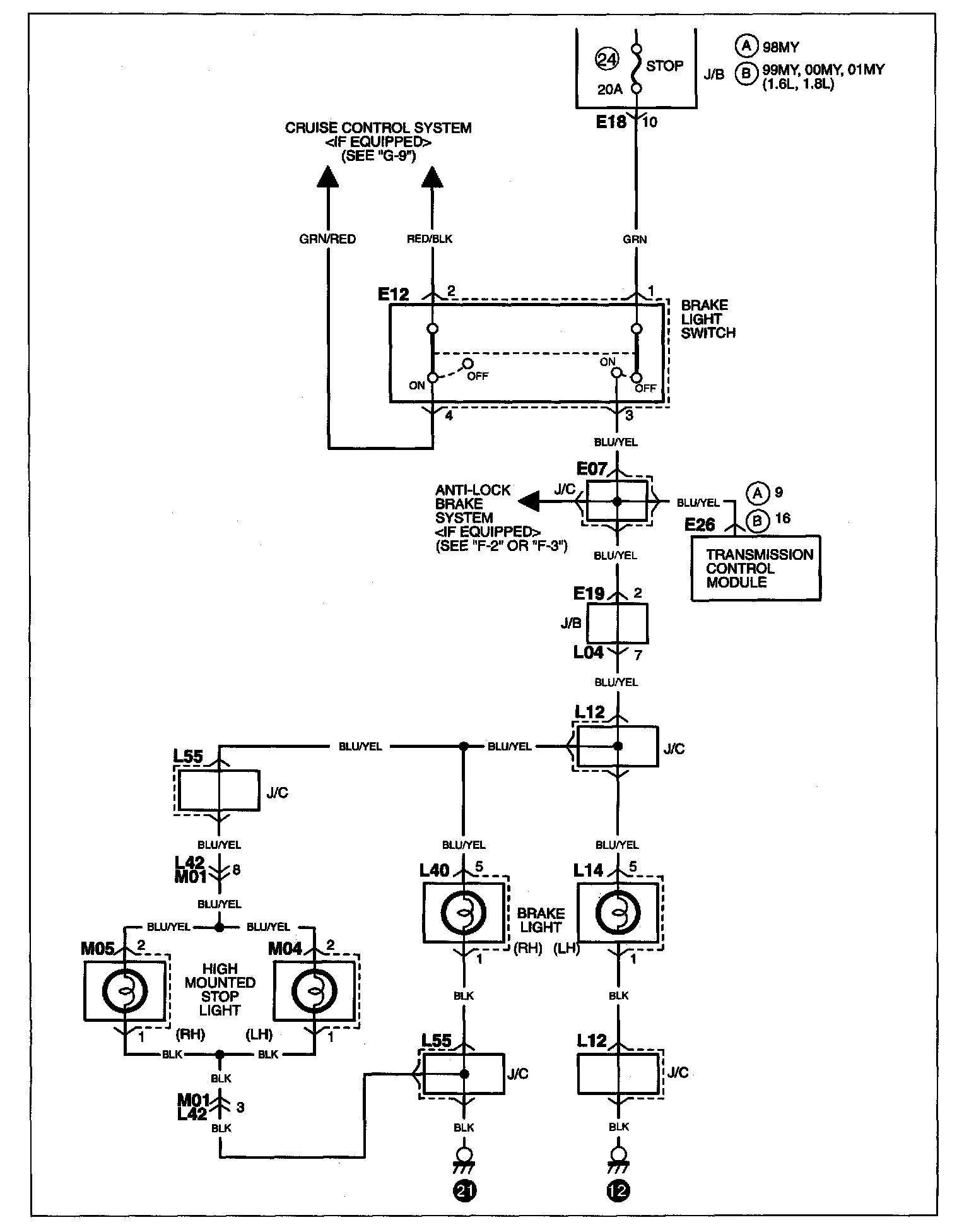

D-11 Brake Light <Vehicle With Cruise Control>
D-11 Brake Light
D-11 Brake Light <Vehicle With Cruise Control> For Sedan:
