Abnormal Noise Symptom Diagnosis - Air Conditioning

Abnormal Noise From Compressor - Condition / Possible Cause:

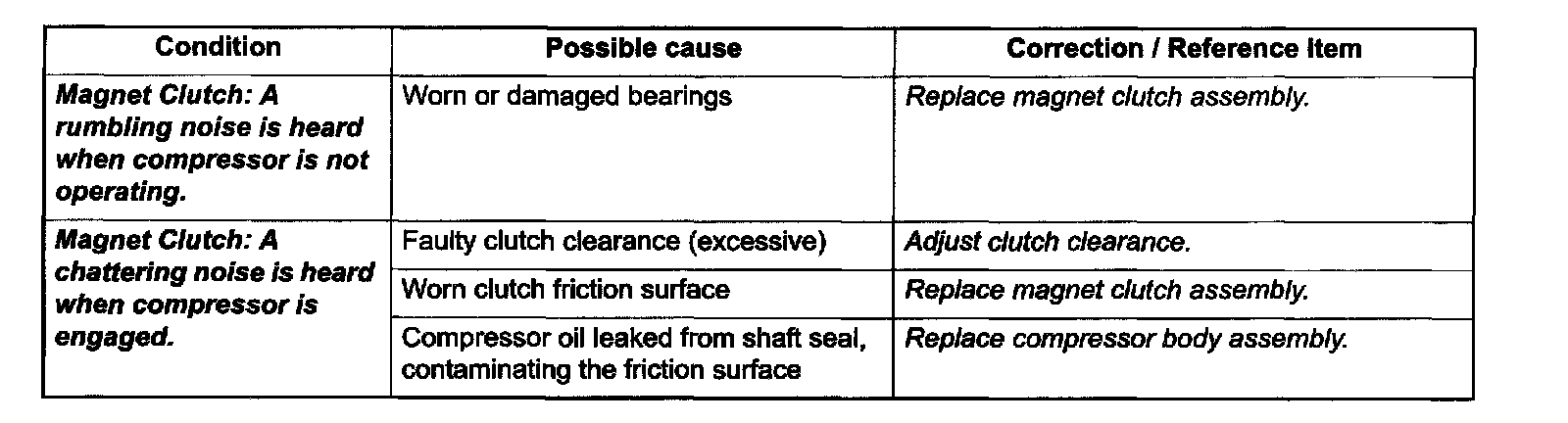

Abnormal Noise From Magnetic Clutch - Condition / Possible Cause:

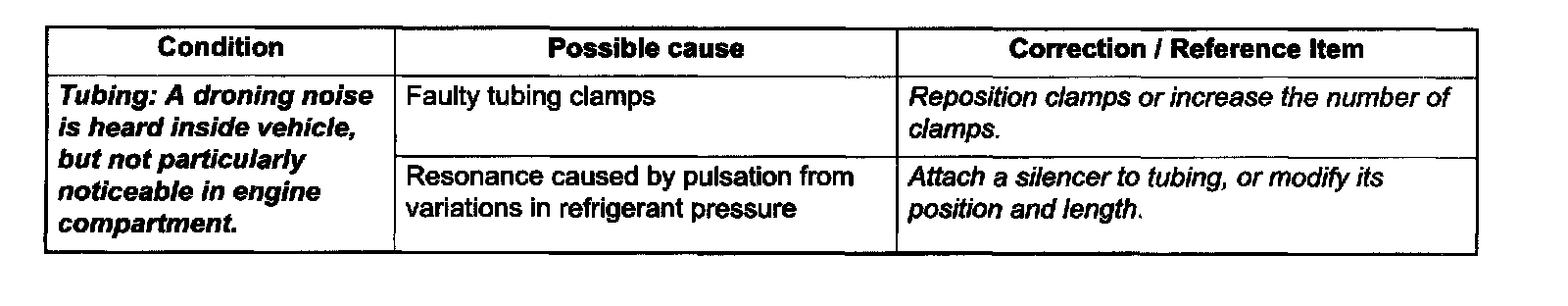

Abnormal Noise From Tubing - Condition / Possible Cause:

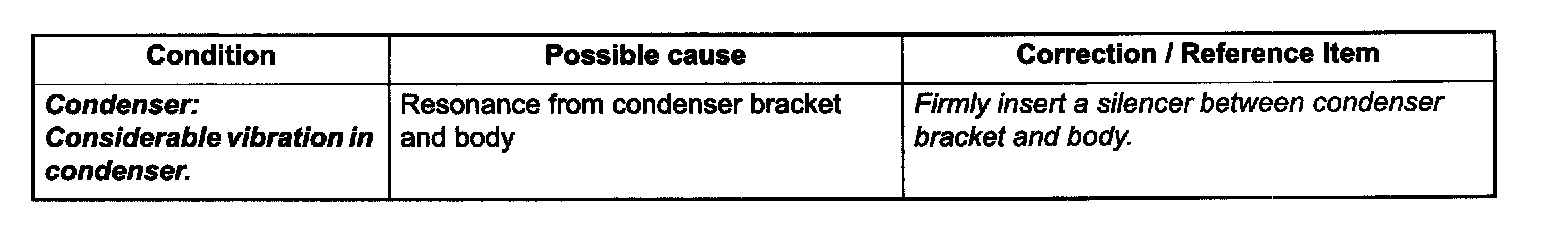

Abnormal Noise From Condenser - Condition / Possible Cause:

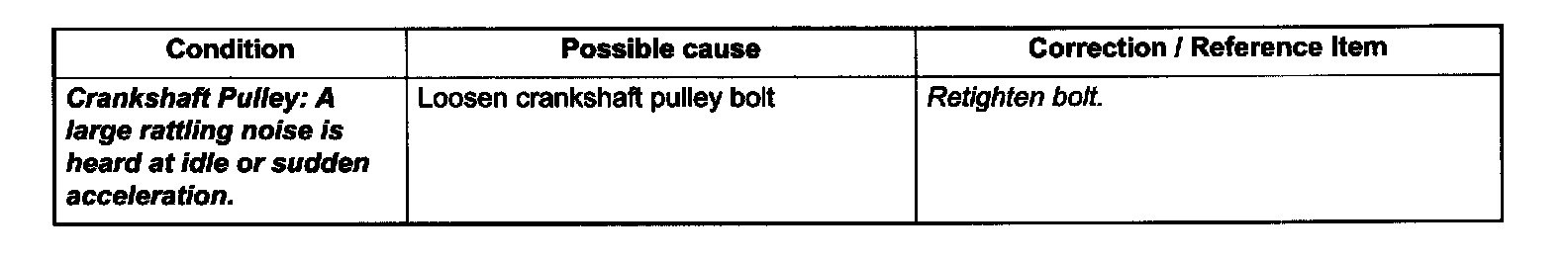

Abnormal Noise From Crankshaft Pulley - Condition / Possible Cause:

Abnormal Noise From Tensioner Pulley - Condition / Possible Cause:

Abnormal Noise From A/C Evaporator - Condition / Possible Cause:

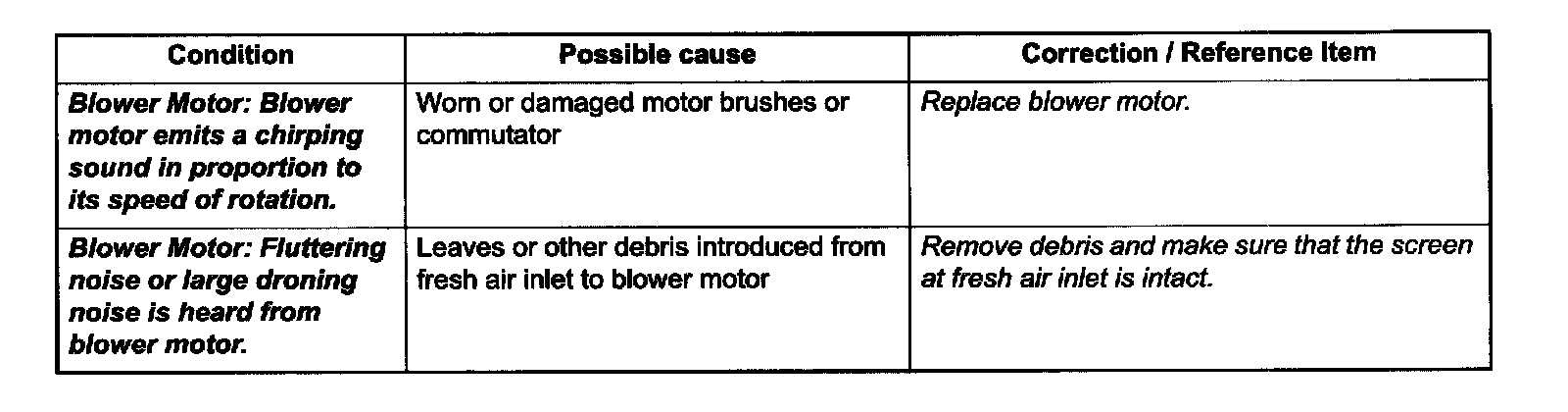

Abnormal Noise From Blower Motor - Condition / Possible Cause:

There are various types of noise, ranging from those produced in the engine compartment to those from the passenger compartment, also from rumbling noises to whistling noises.
