Manufacturer Codes

DTC No. 12 - 71:

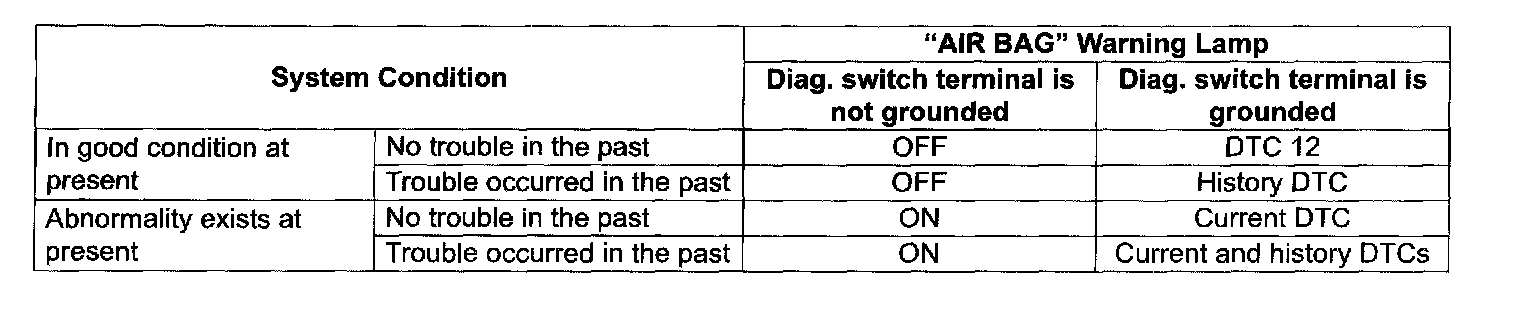

DTC Table









NOTE:
- When 2 or more codes are indicated, the lowest numbered code will appear first.
- If a code not listed on the table is displayed, then the SDM is faulty.

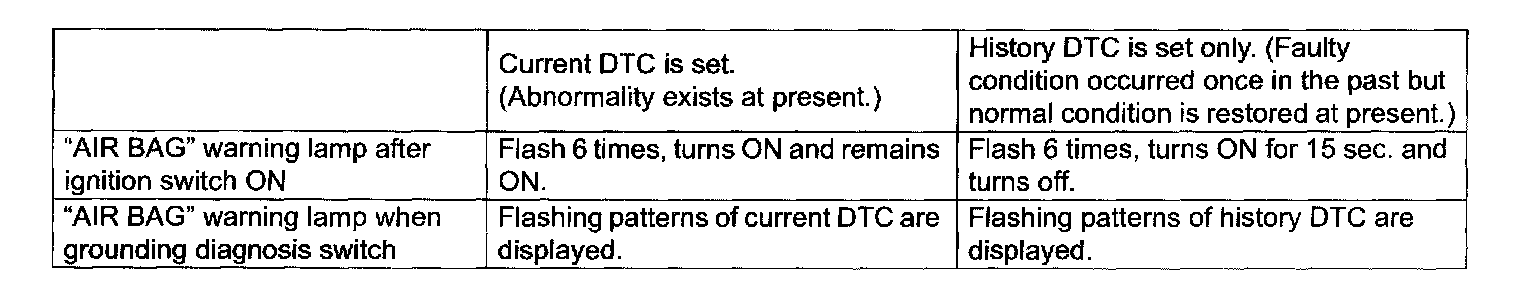

- Current DTC and history DTC can be identified by lighting and flashing of "AIR BAG" warning lamp as follows.
In case current DTC and history DTC exist at the same time, it is not impossible to be identified each other. Therefore, use SUZUKI scan tool or perform "DTC Clearance".
