P0727

DTC P0727, No.35: Engine Speed Input Circuit Malfunction

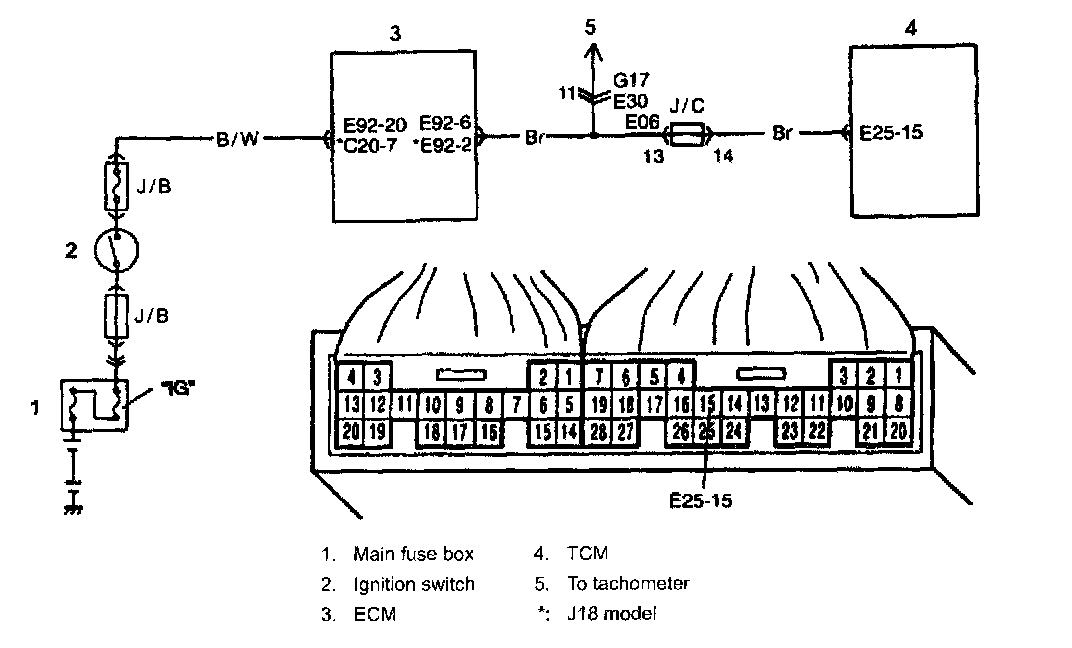

Wiring Diagram





DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Turn ignition switch OFF.
2. Clear DTC stored in TCM and ECM.
3. Start engine and run it for 30 seconds or more.
4. Turn ignition switch OFF.
5. Repeat above Step 3.
6. Check DTC and pending DTC.

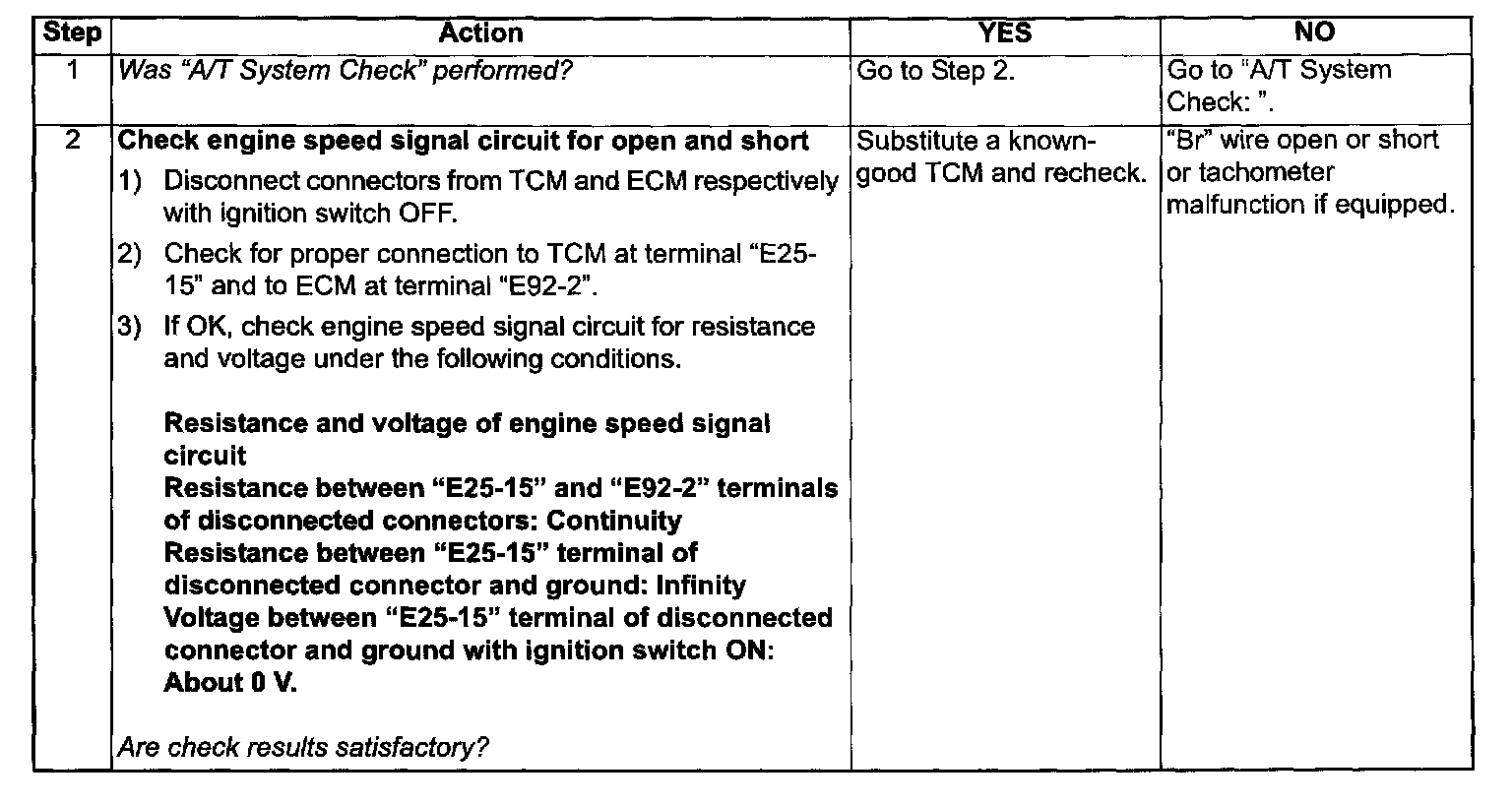

DTC Troubleshooting
