Cruise Control Servo: Testing and Inspection

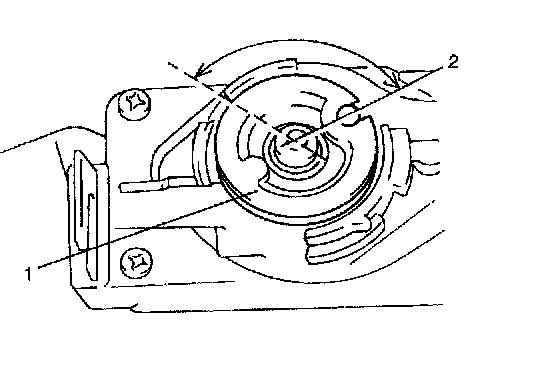

Cruise Control Actuator Assembly (with Control Module) InspectionMove actuator lever by hand and check its operation as described.
1. Actuator lever should not turn clockwise.
2. Actuator lever (1) should turn smoothly by about 1/3 rotation counterclockwise and contact internal stopper.
3. When hand is taken off from actuator lever at the position in Step 2), it should return to its original position (2) by return spring force. If actuator lever does not operate as described, replace it.
