L Connectors

NOTE: The illustrations below show the harness side connectors, but not the component side connectors.

NOTE:
*1: For A/T model
*2: For M/T model
*3: For vehicle equipped with cruise control system
*4: For A/T model equipped with cruise control system
*5: For M/T model equipped with cruise control system
*6: For vehicle equipped with ABS
*7: For vehicle equipped with Air bag
*8: For vehicle equipped with keyless entry as the standard equipment
*9: For vehicle equipped with power window
*10: For vehicle not equipped with keyless entry
*11: For vehicle equipped without keyless entry or with the optional keyless entry

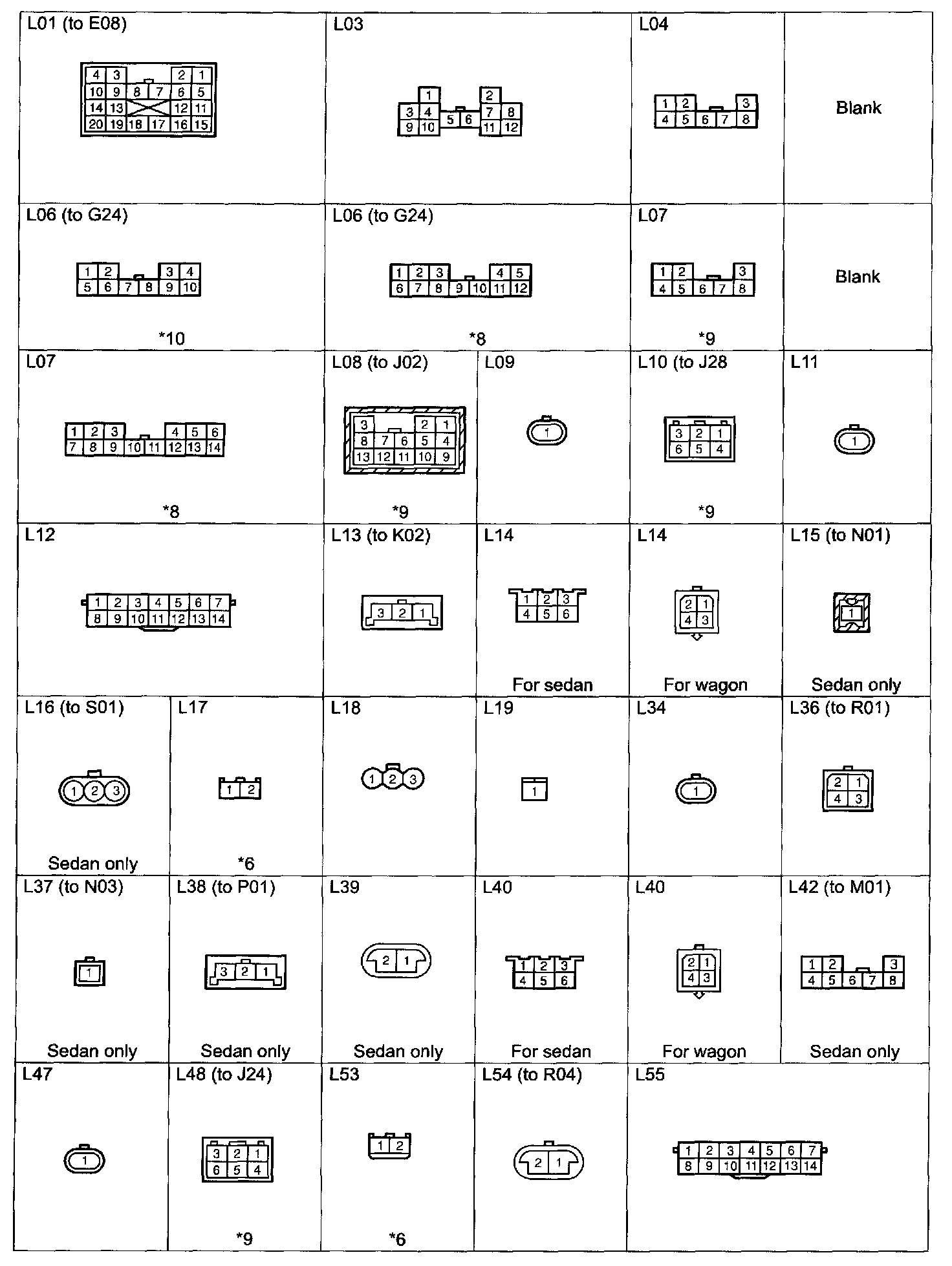

L - Connector (L01 (to E08) - L55):

L - Connector (L56 - L64 (to R06)):
