Brake Lamp
Brake Lamp
Brake Light Circuit Diagram (For Wagon) Without Cruise Control:

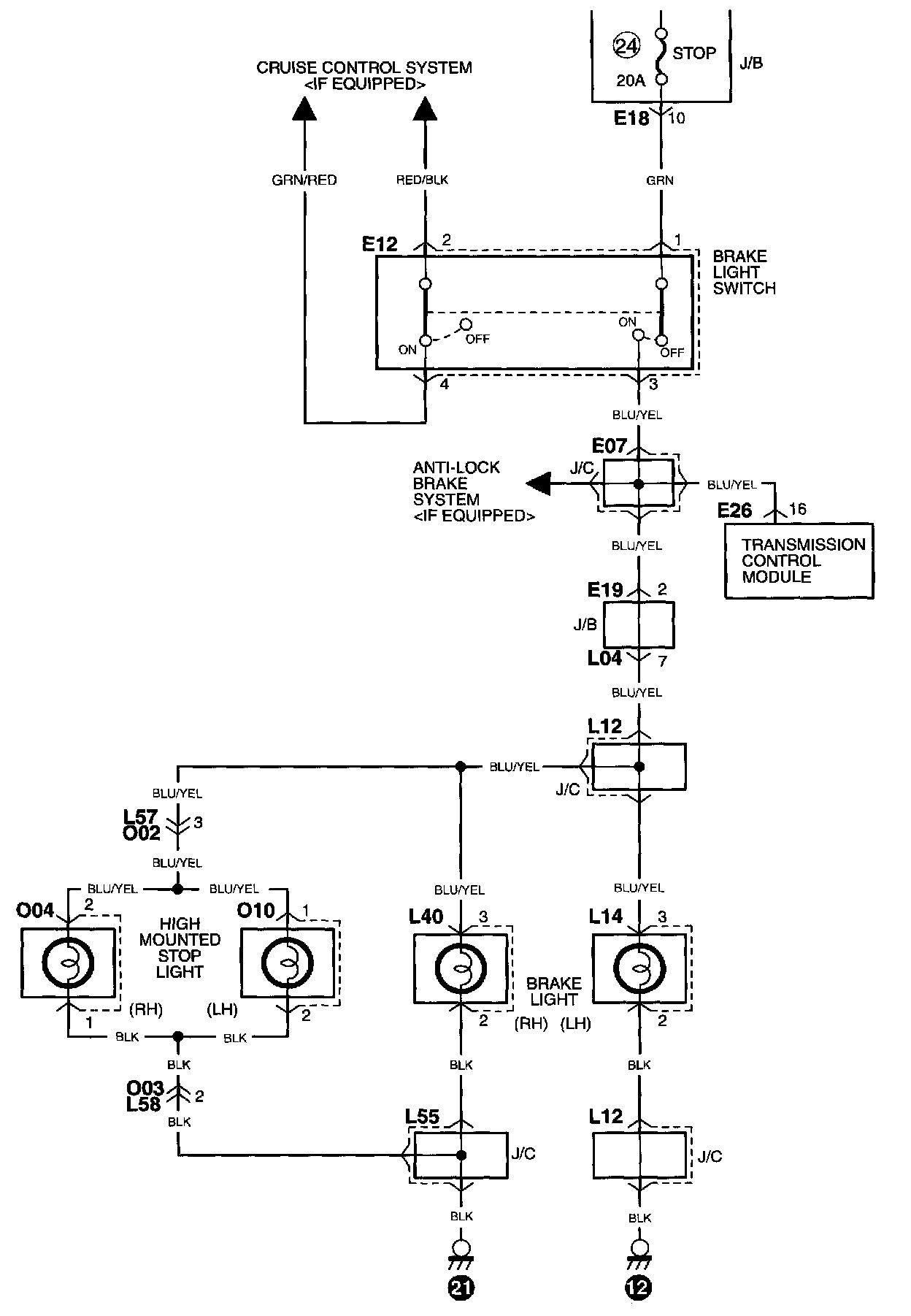

Brake Light Circuit Diagram (For Wagon) With Cruise Control:
