Cruise Control

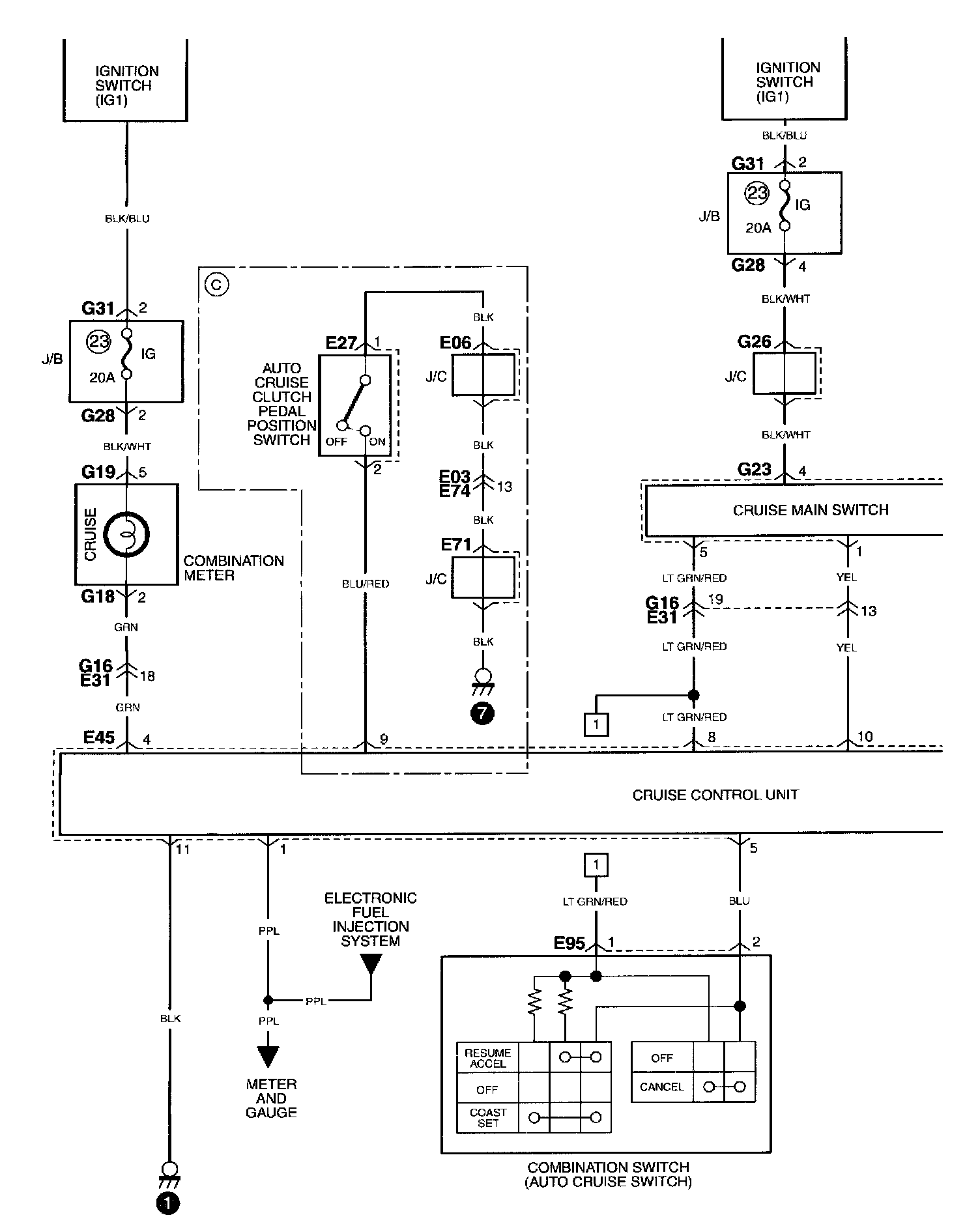

Cruise Control System Circuit Diagram Part - 1:

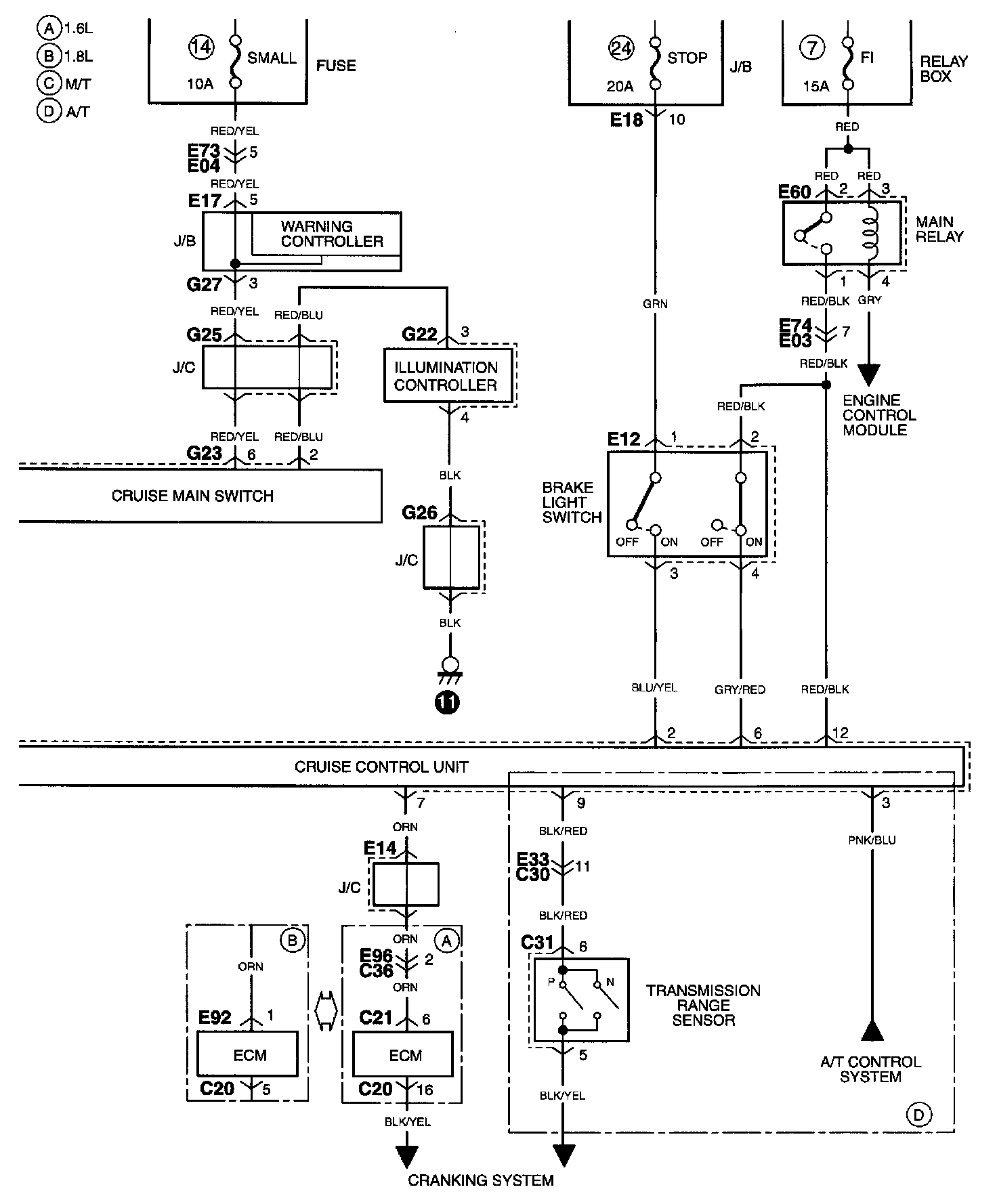

Cruise Control System Circuit Diagram Part - 2:
