Headlamp
Headlamp

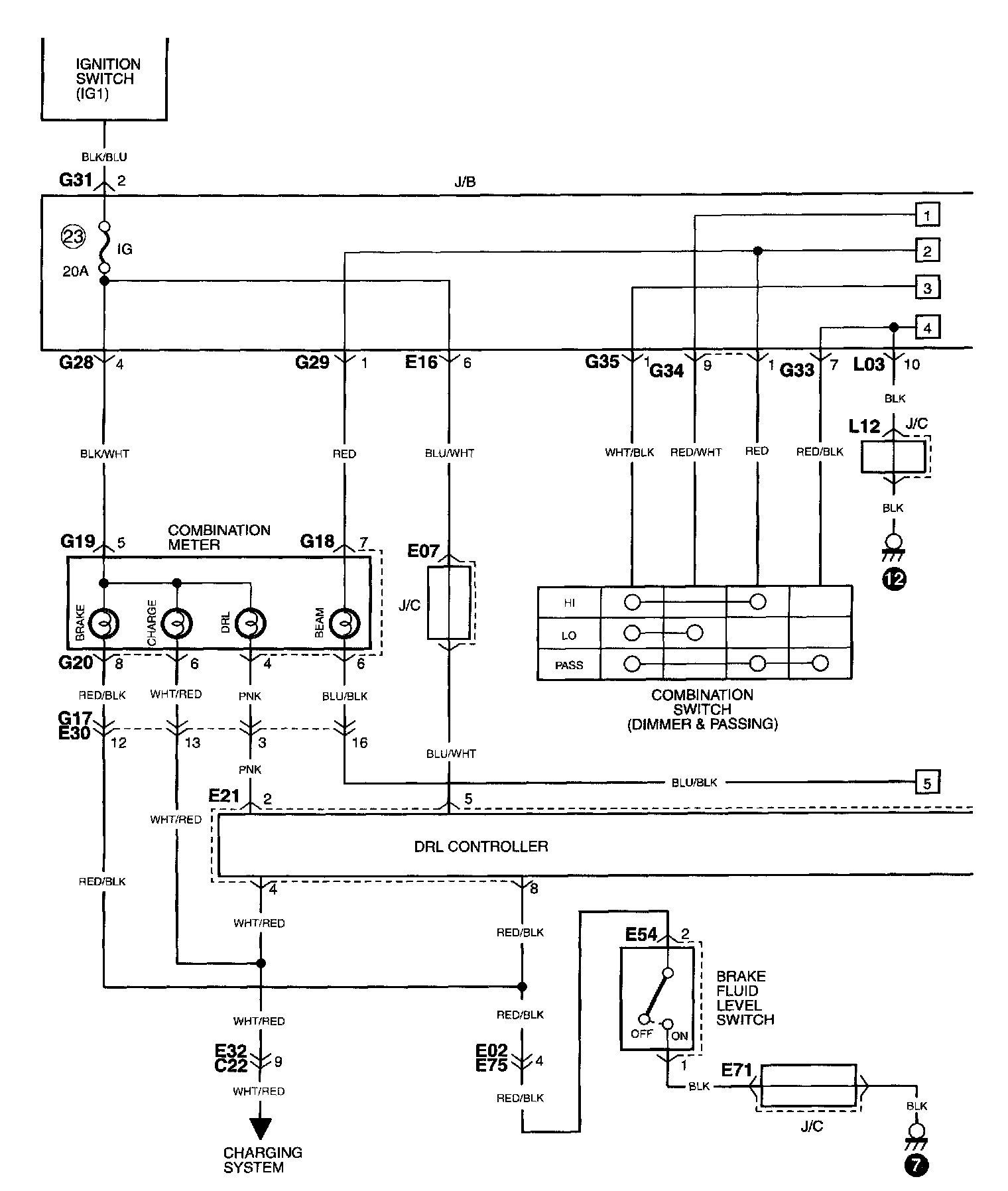

Headlight System Circuit Diagram Part - 1:
Headlight System Circuit Diagram Part - 2:
