Tail Lamp
Tail Lamp

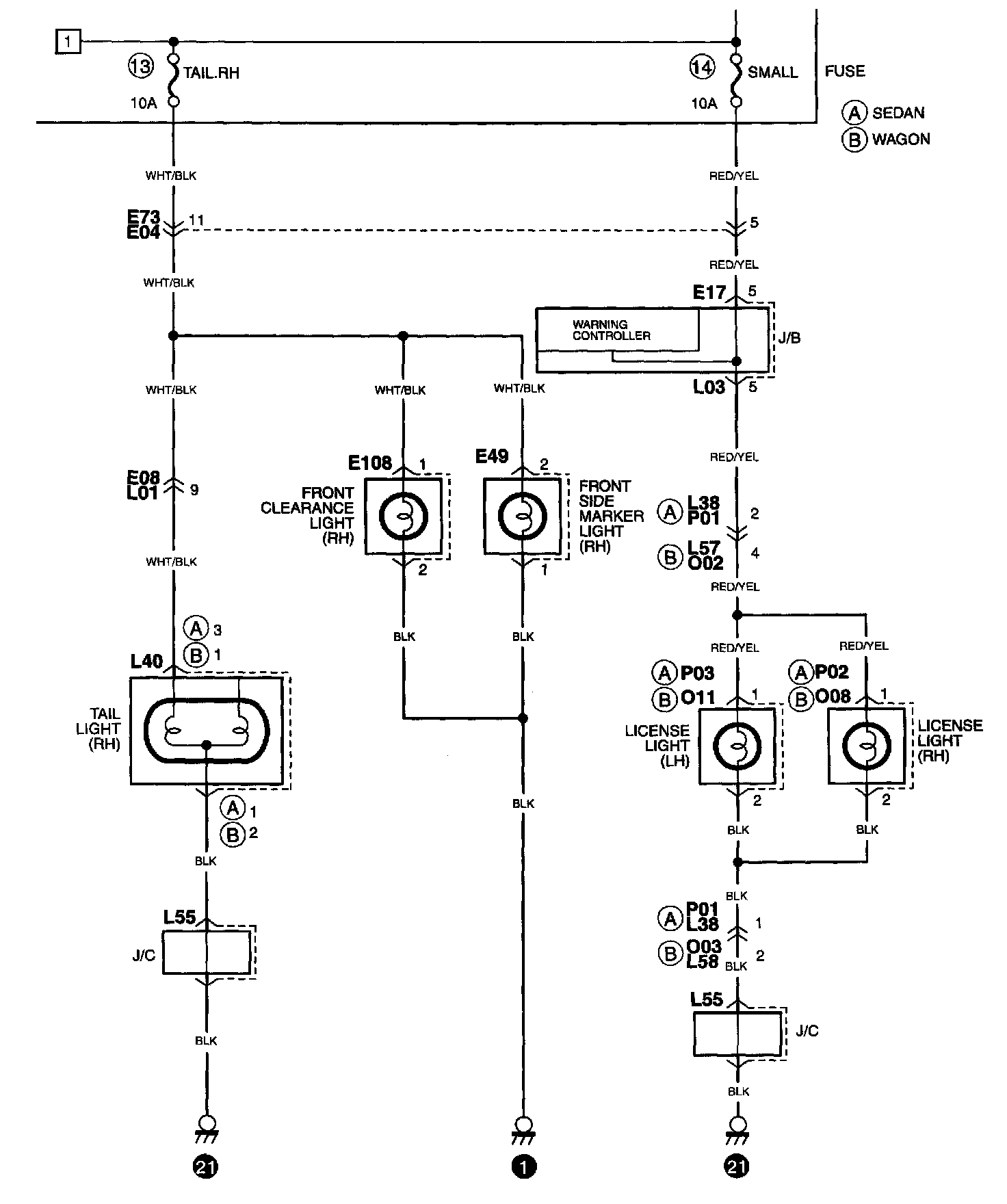

Clearance, Side Marker, Tail And Licence Plate Light Circuit Diagram Part - 1:
Clearance, Side Marker, Tail And Licence Plate Light Circuit Diagram Part - 2:
