Powertrain Management

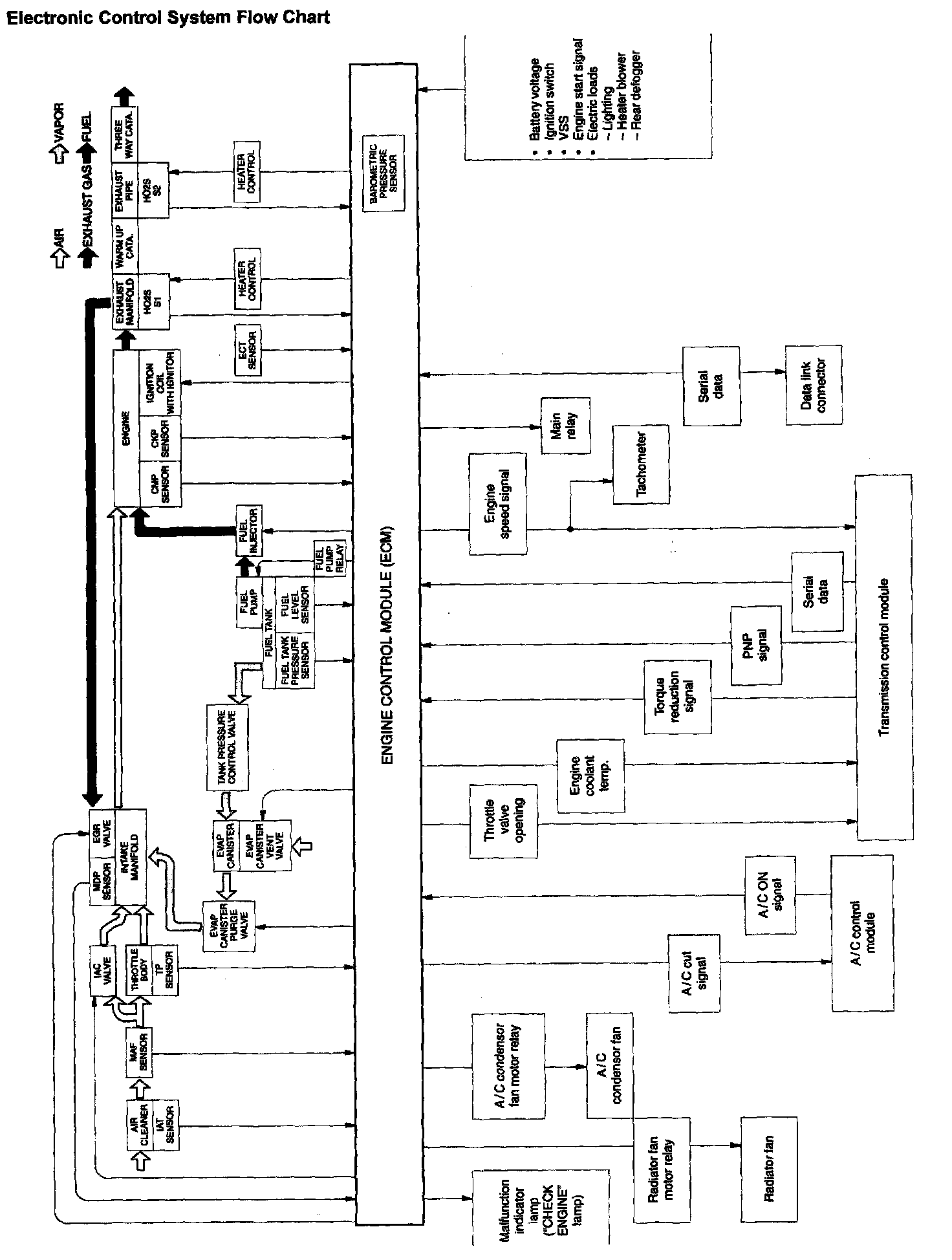

Electronic Control System Flow Chart:



Engine And Emission Control System Diagram Part - 1:



Engine And Emission Control System Diagram Part - 2:
