Electrical Diagrams

Warning Control System Circuit Diagram:

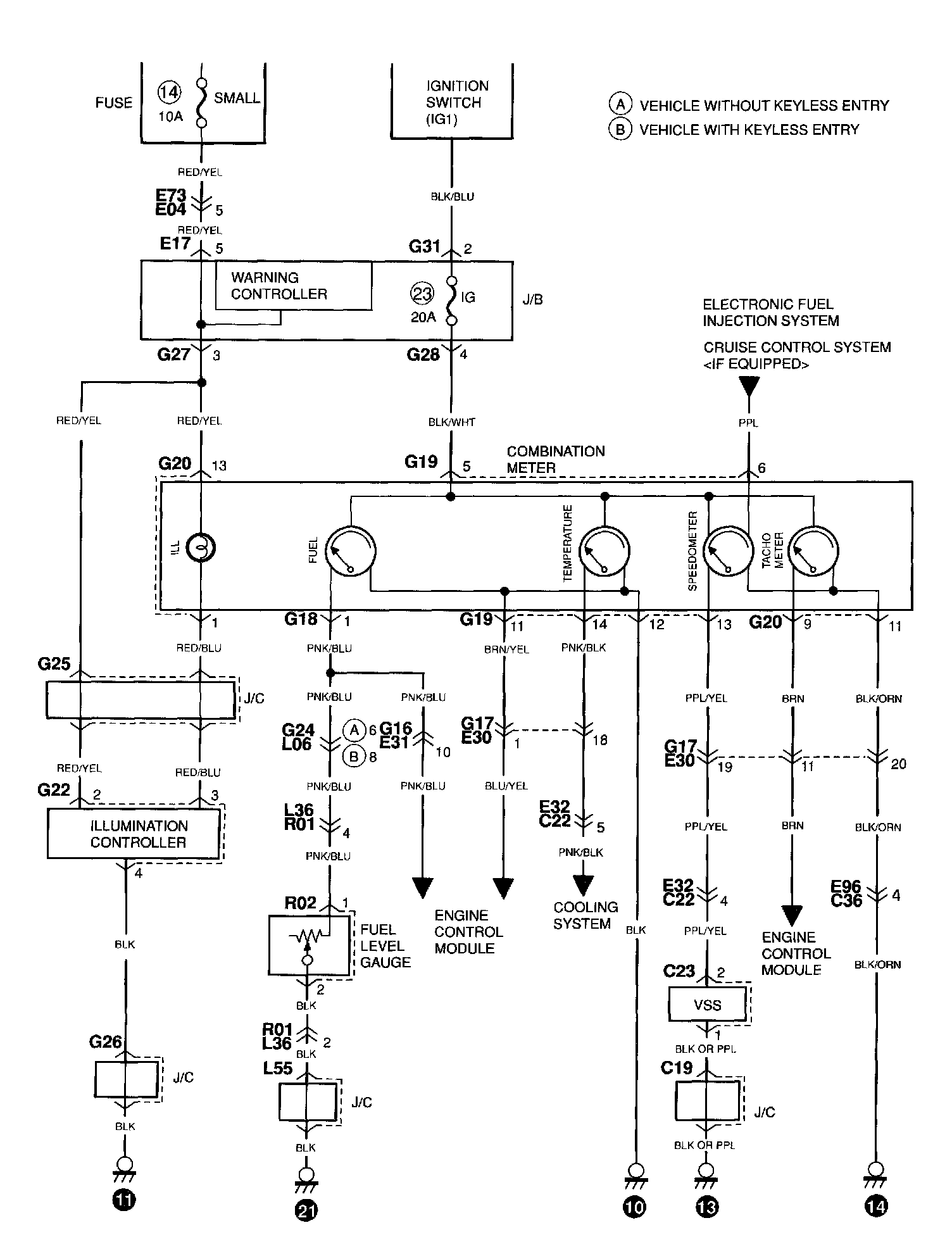

Meter And Gauge Circuit Diagram With Tachometer:



Meter And Gauge Circuit Diagram Without Tachometer:

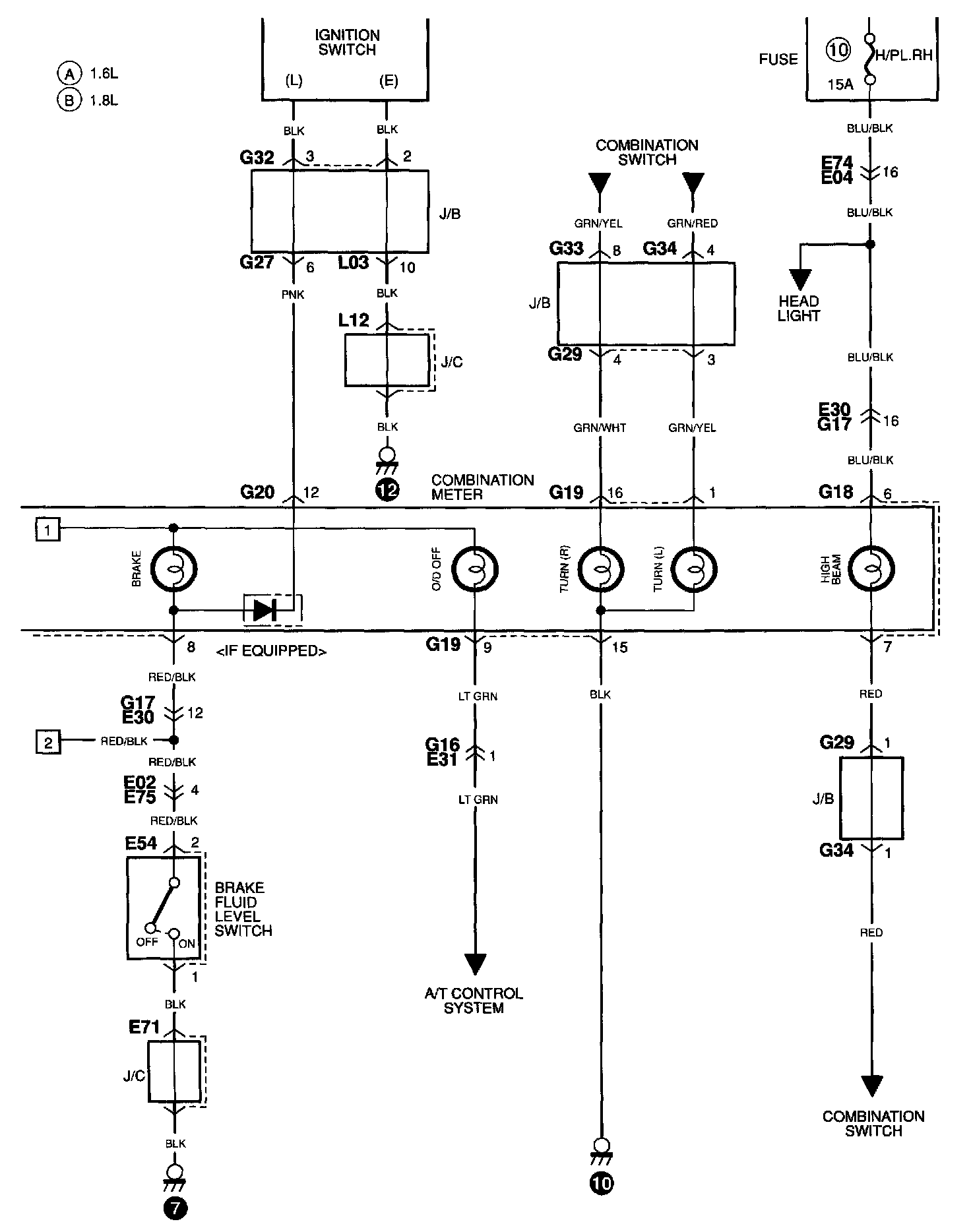

Warning Lamp Circuit Diagram Part - 1:

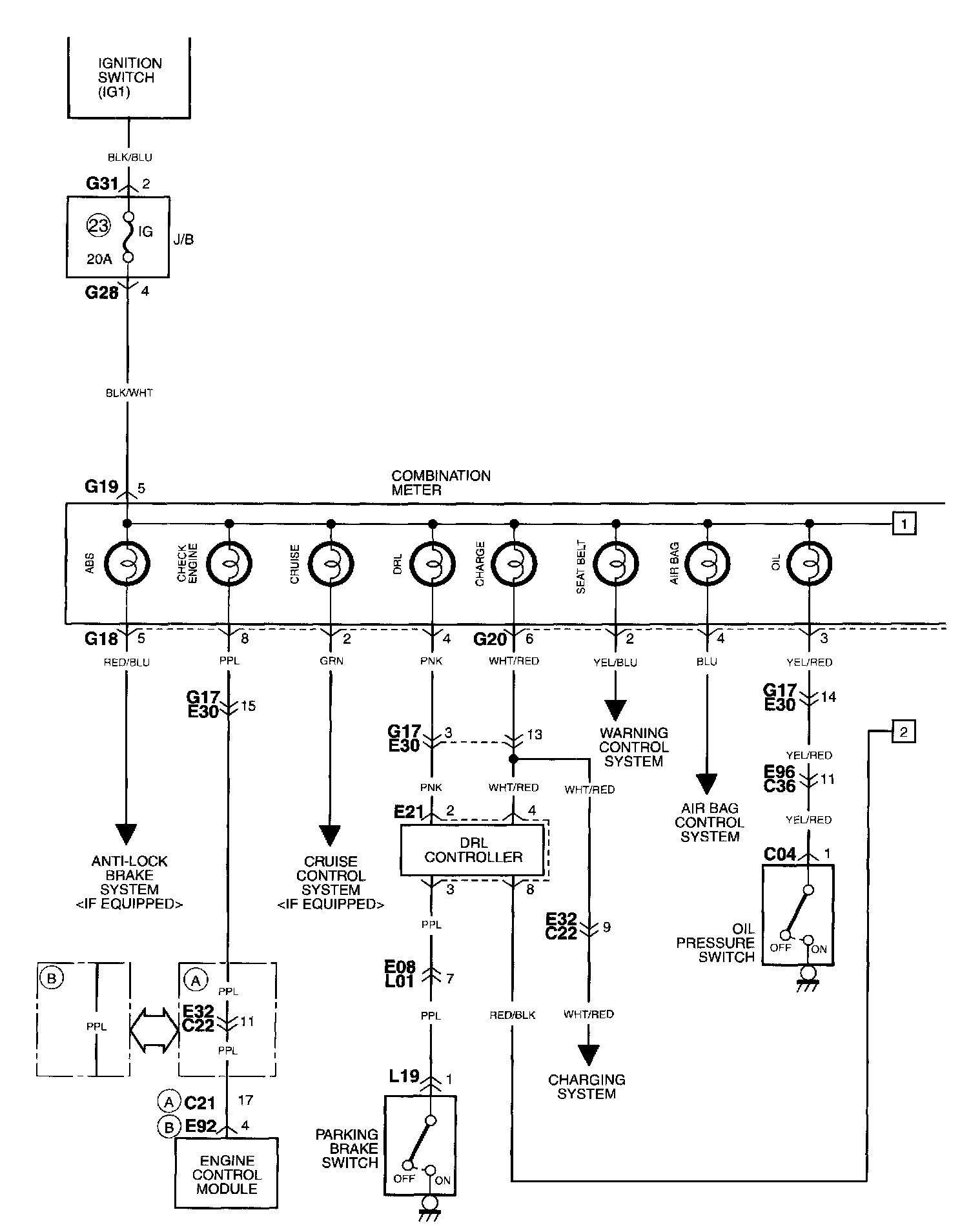

Warning Lamp Circuit Diagram Part - 2:
