Symptom Related Diagnostic Procedures

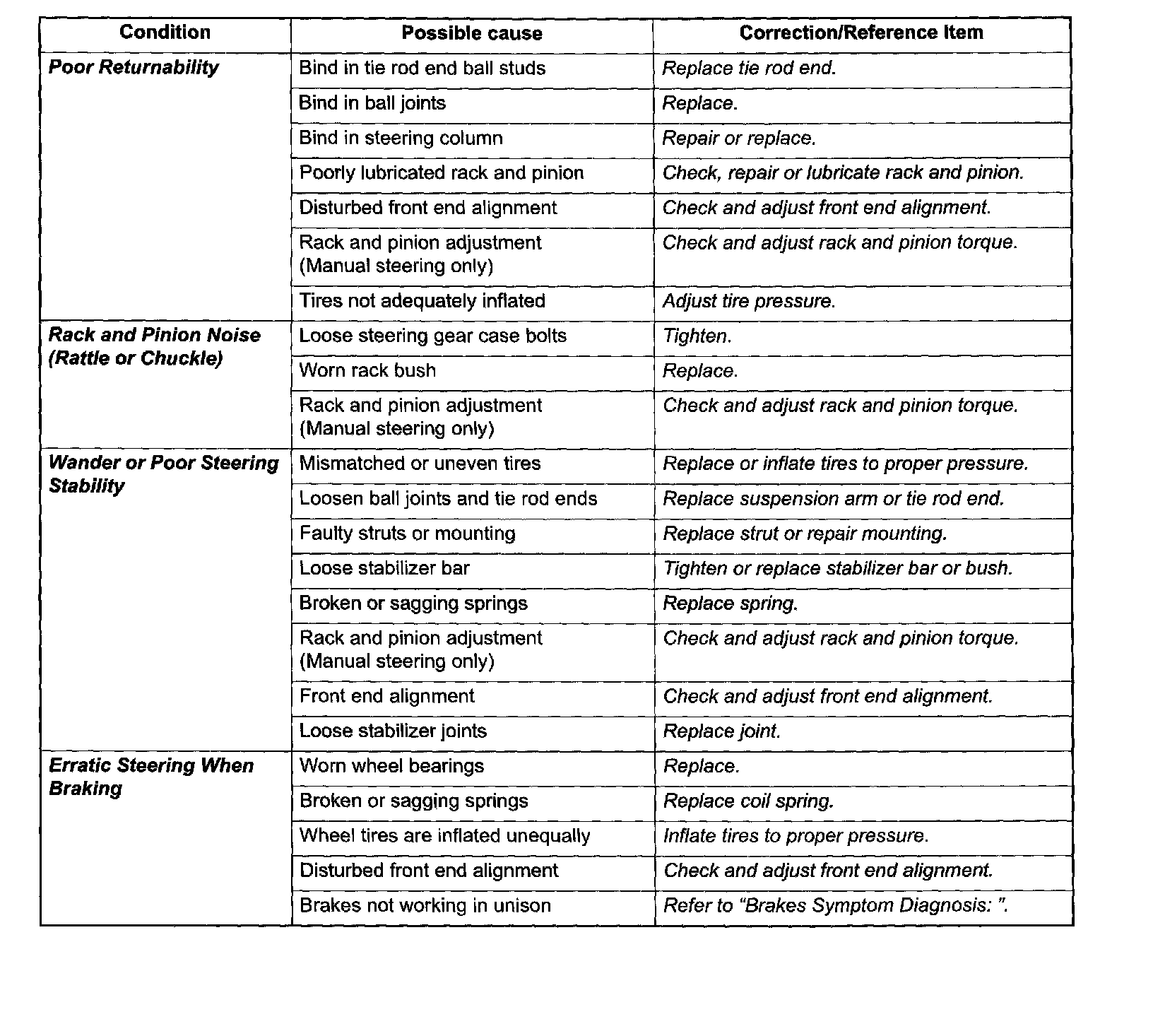

Steering Symptom Diagnosis





Part 1 of 2





Part 2 of 2

Since the problems in steering involve several systems, they must all be considered when diagnosing a complaint. To avoid using the wrong symptom, always road test the vehicle first. Proceed with the following preliminary inspection and correct any defects which are found.
^ Raise vehicle on a hoist and inspect front and rear suspension and rack and pinion for loose or damaged parts.
