Drive/Propeller Shafts, Bearings and Joints: Specifications

DRIVE SHAFT

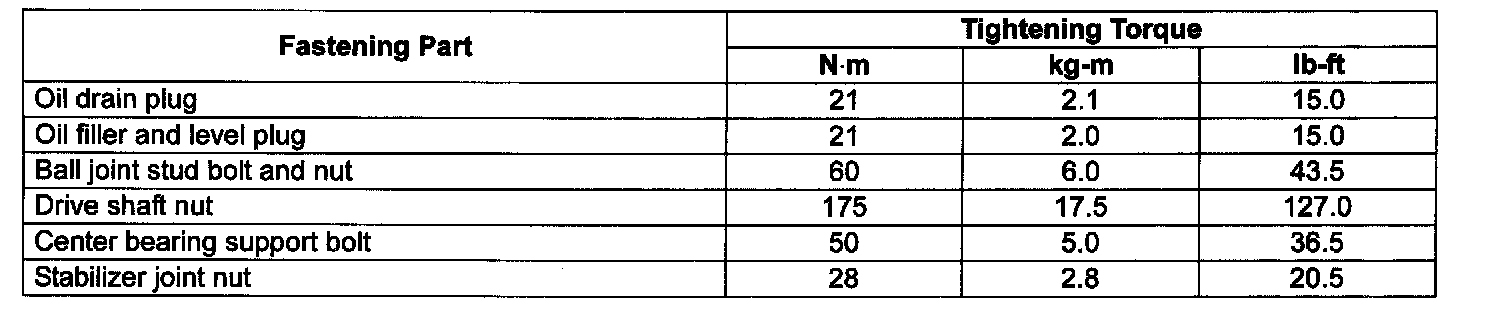

TIGHTENING TORQUE SPECIFICATIONS





DOJ TYPE





TRIPOD TYPE
