Home >> Suzuki >> 2004 >> Aerio L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> G Connectors

G Connectors

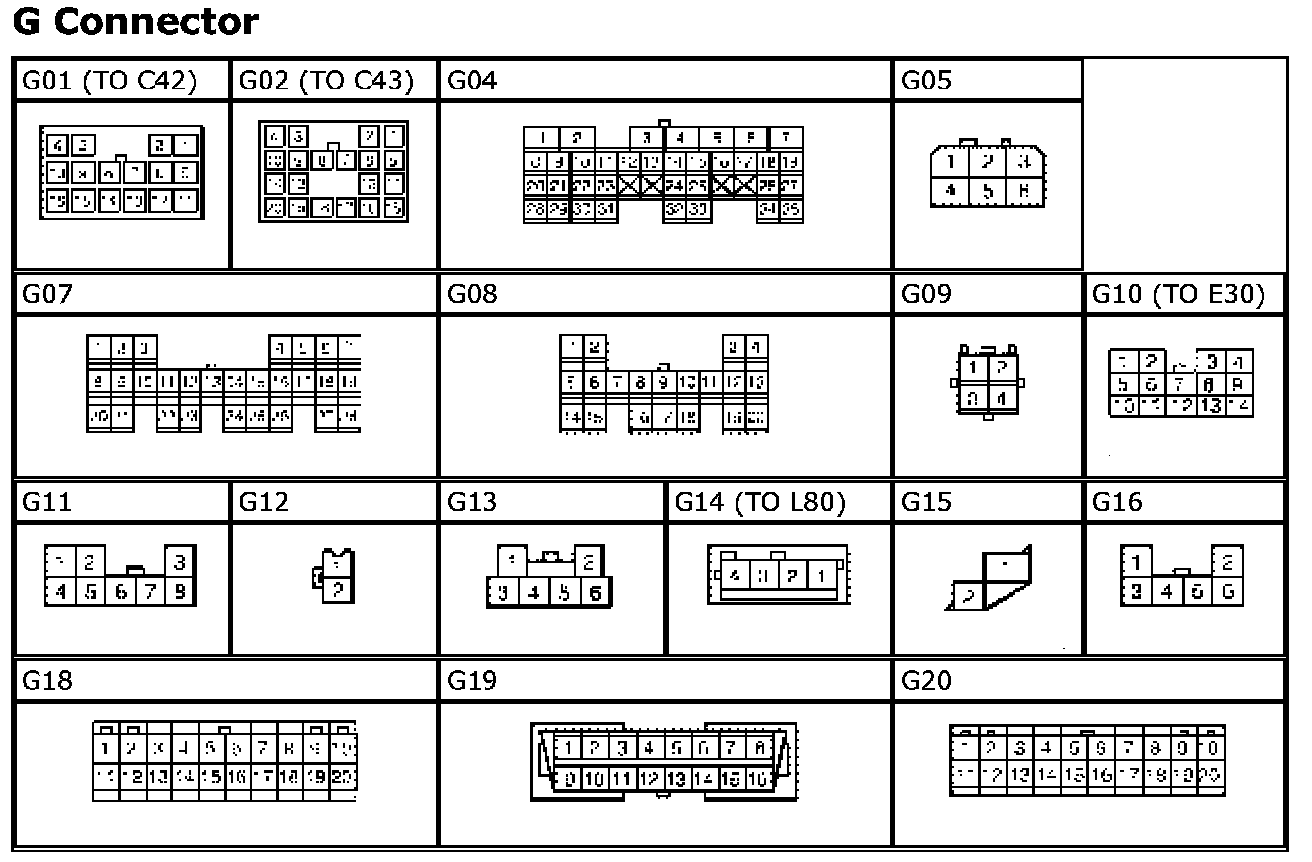

G01 (TO C42) - G20:

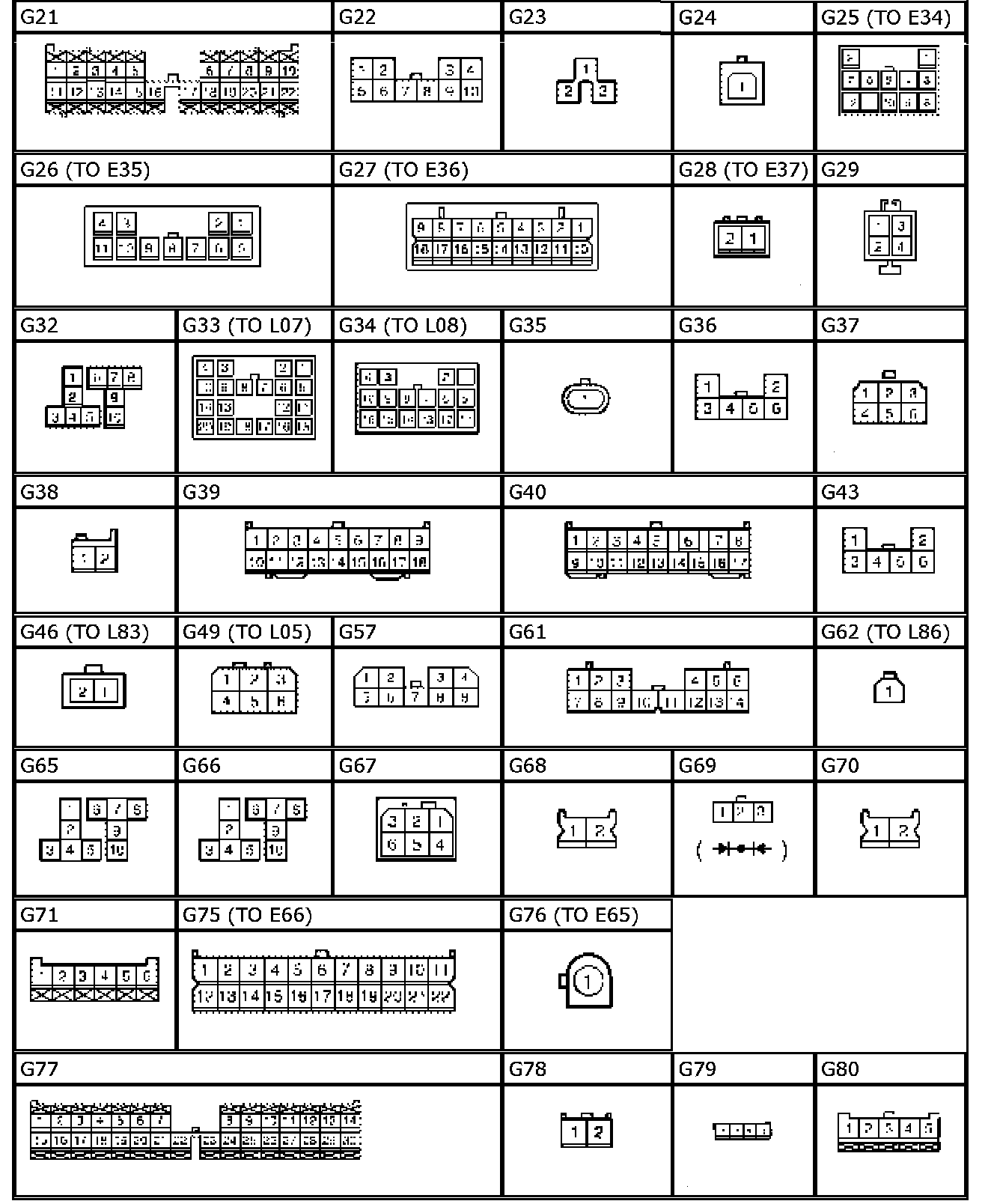

G21 - G80:
