D Connectors
D Connectors
C: Engine Harness / D: Injector Harness View:

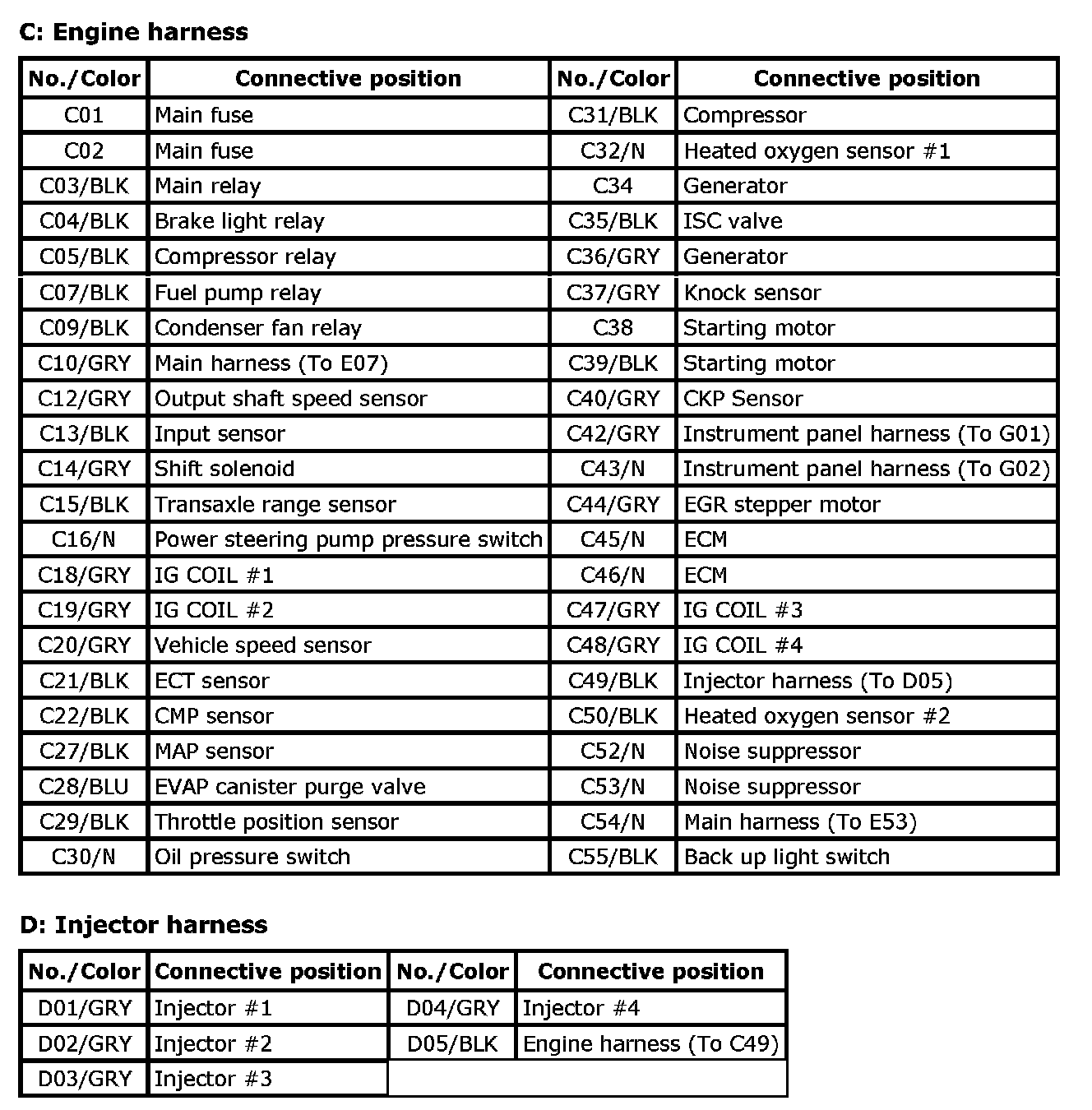

C: Engine Harness / D: Injector Harness Index:
Fuse Box View 1:
