DTC B1044 (No.1044): Passenger Air Bag (1st stage) Initiator Circuit Short to Power Circuit

Wiring Diagram:

Wiring Diagram

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check before starting diagnosis according to flow.
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adaptor from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections.
- If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

DTC Will Set when
The voltage measured at passenger air bag (1st stage) (initiator) circuit is above a specified value for specified time.

Flow Test Description

Step 1:

Step 2:

Step 3:

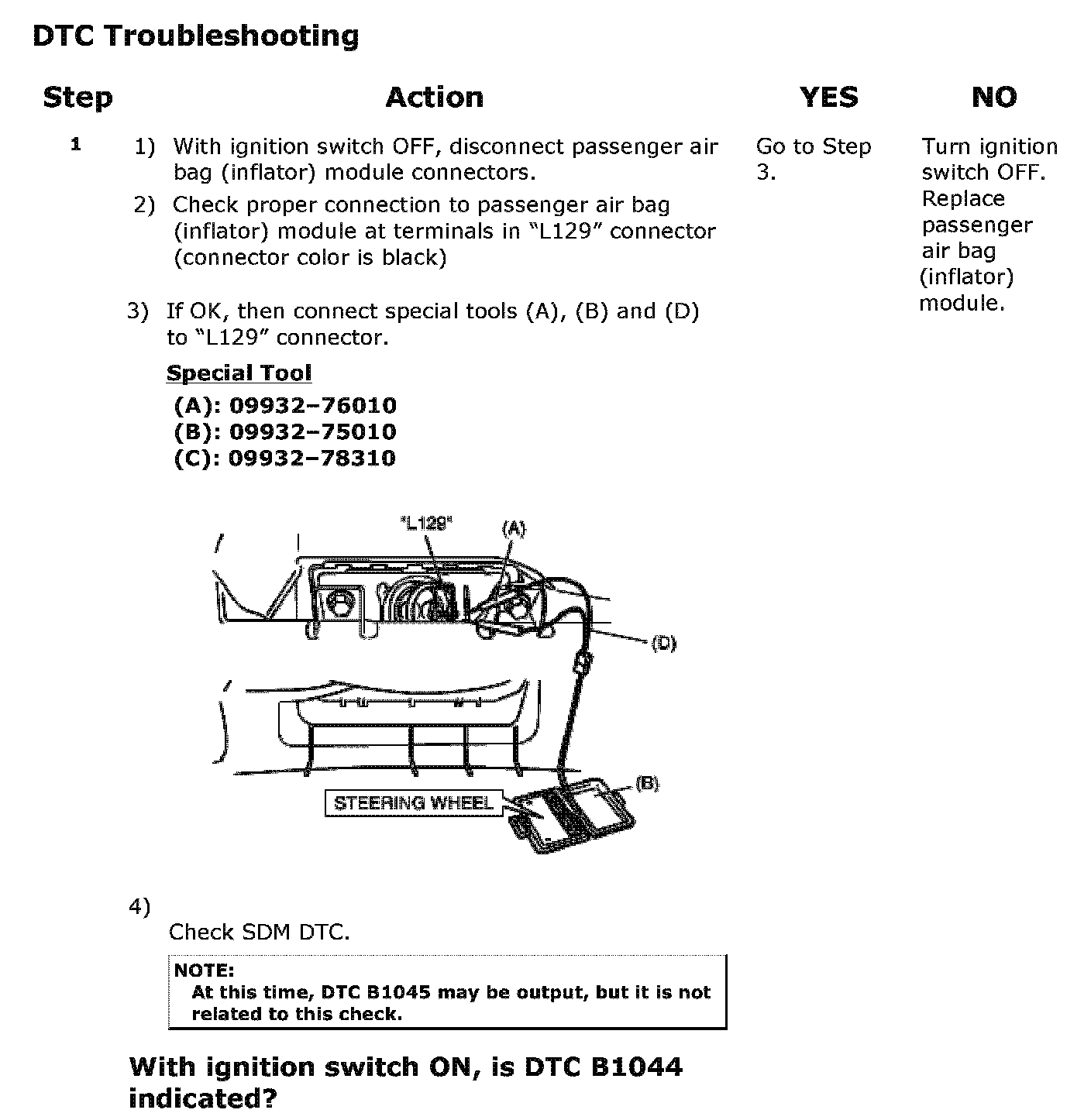

Step 1: Check if malfunction is in passenger air bag (inflator) module (1st stage).
Step 2: Check passenger air bag (inflator) module (1st stage) initiator circuit in air bag lead harness.
Step 3: Check passenger air bag (inflator) module (1st stage) initiator circuit in floor harness.
