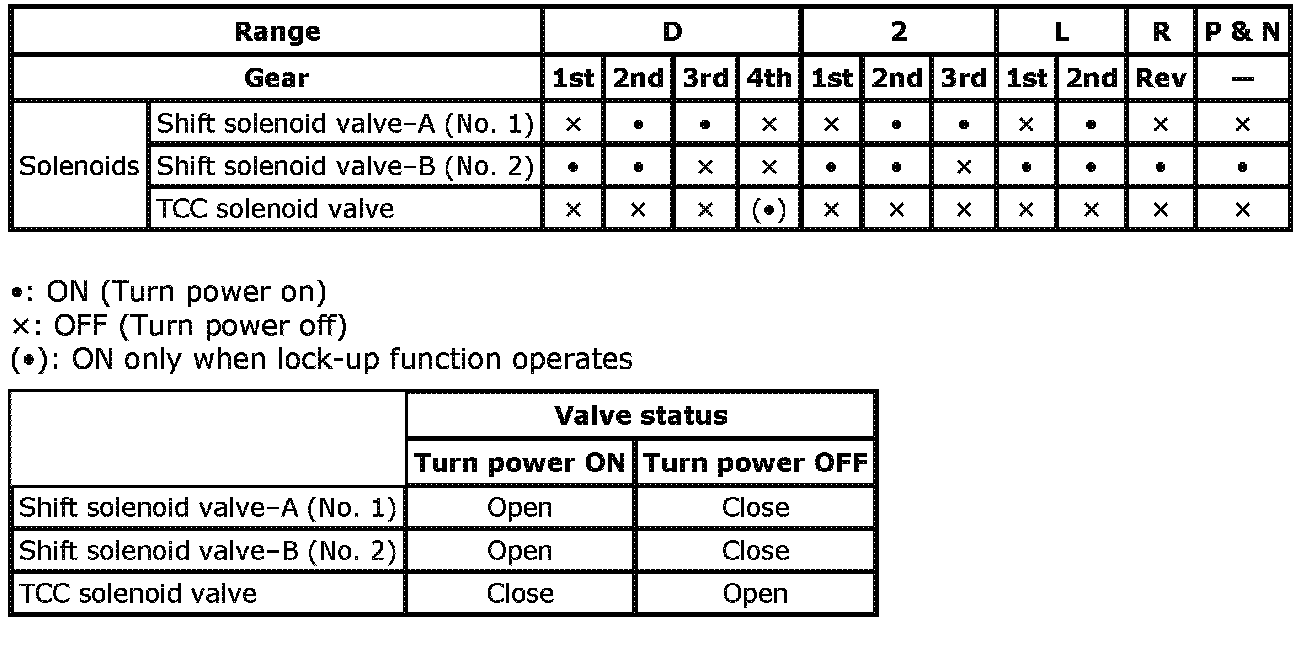

Operation of Shift Solenoid Valves and TCC Solenoid Valve

Operation of Shift Solenoid Valves and TCC Solenoid Valve:
